Extech Instruments TM500 User Manual

11 TM500-EU-EN v1.1 12/13
SDDataCardtoPCDataTransfer
1. Completeadataloggingsessionasdetailedinaboveintheprevioussections.Hint:Forthe
firsttest,simplyrecordasmallamountoftestdata.Thisistoensurethatthedatalogging
processiswellunderstoodbeforecommittingtocriticaldatalogging.
2. WiththemeterswitchedOFF,removetheSDCard.
3. PlugtheSDCarddirectlyintoaPCSDcardreader.
IfthePCdoesnothaveanSDcardslot,
useanSDcardadaptor(availableatmostoutletswherecomputeraccessoriesaresold).
4. PowerthePCandrunaspreadsheetsoftwareprogram.Openthesaveddocumentsinthe
spreadsheetsoftwareprogram(se
eexamplespreadsheetdatascreensbelow).

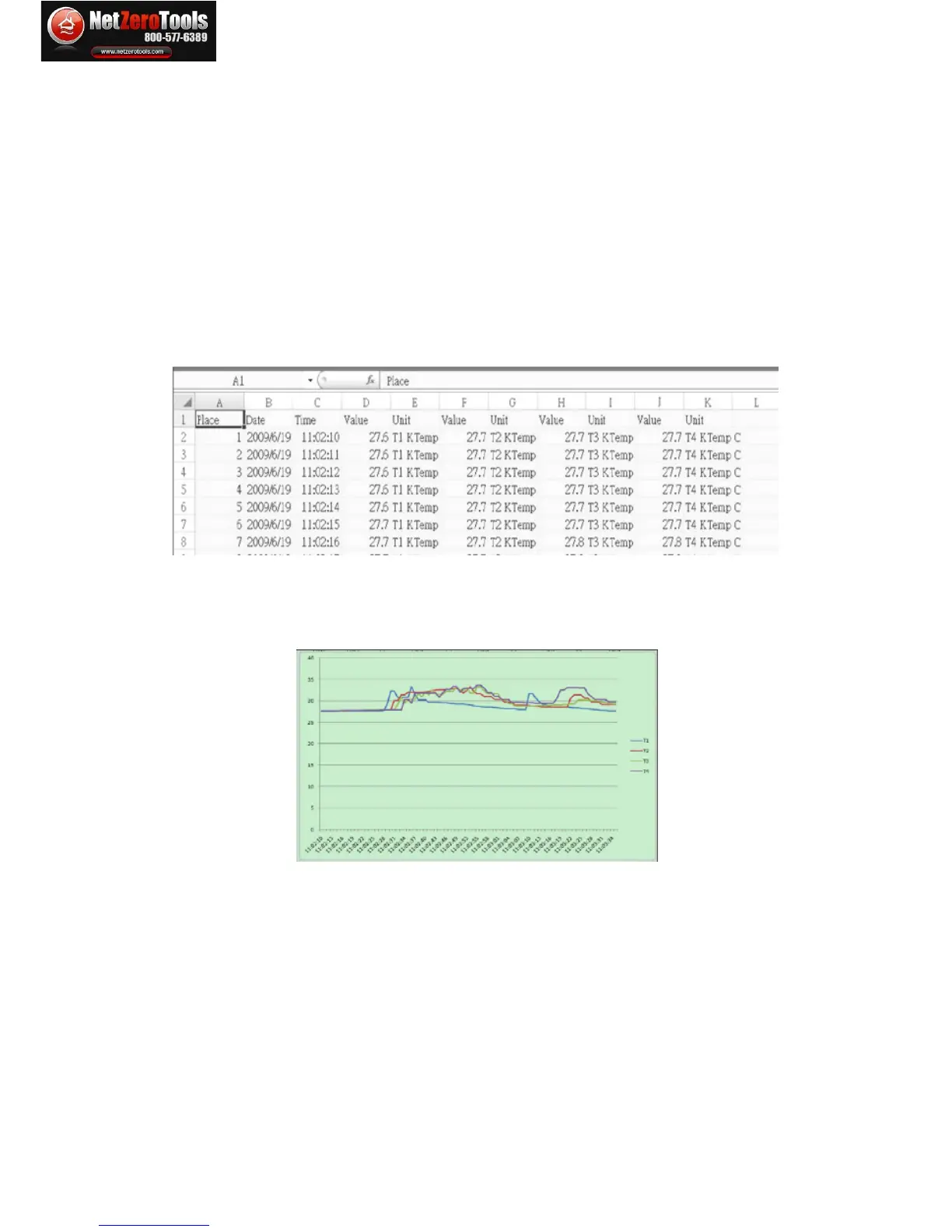

Spreadsheet dataexample
Spreadsheet example(Plottingthedata )
netzerotools.com
netzerotools.com
