CHAPTER 28
PAGE 18
EXT
RA - FLUGZEUGBAU GmbH
SERVICE MANUAL EXTRA 200
PAGE DATE: 1. July 1996
lö ösgsödfg dsfgdfg
df
sdf fg
sdf
sdfgs
fdg s
df s
df sdfgsdfg sfdg s
dfg s
dfg s
sdfgsfdgsdfg
sdfgsfdg
sdfgsdfg
sdfgs
sfdgggggggggggggggggggggggggggggggggggggggggggggggggggggggdfg
sdf sd

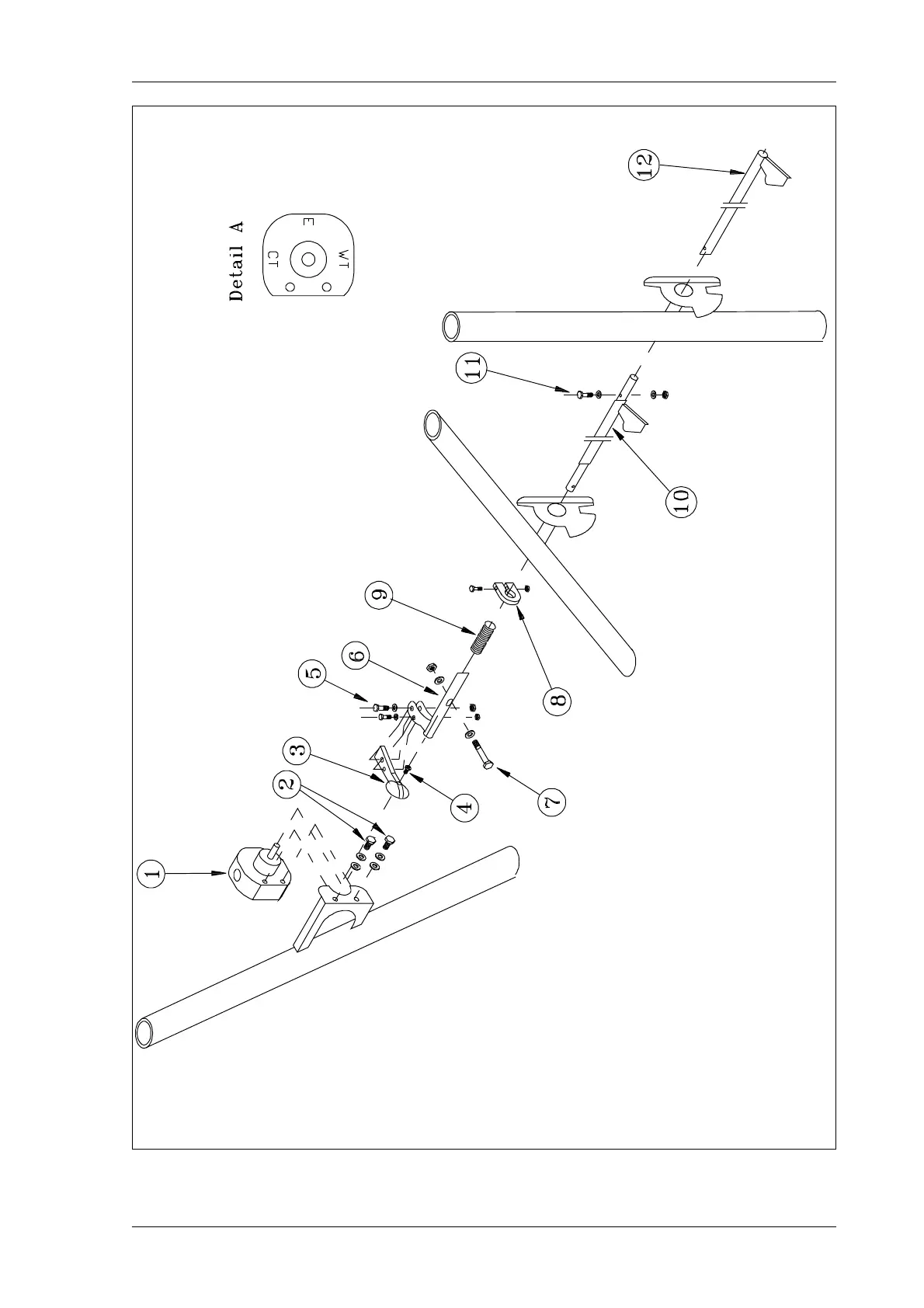

Fuel Selector Valve and Control Rod
Figure 8
MAINTENANCE PRACTICES
Legend:
1 Selector valve
2 Selector valve attachment bolts
3 Control handle
4 Control handle attachment screw
5 Control rod attachment bolts
6 Front Control rod
7 Front control rod connection bolt
8 Adjusting ring and bolt
9 Spring
10 Middle control rod with handle
11 Rear control rod connection bolt
12 Rear control rod with handle
