MAINTENANCE PRACTICES
28-21-03 Gascolator Removal/Installation
1 Drain the fuel system per Chapter 12-10-02.
2 Disconnect the fuel lines on the gascolator.
3 Loosen the knurled nut (1, Figure 9).
4 Remove the mounting bracket (2).
5 Remove the fuel reservoir (3) and the sealing ring (4).
6 Remove the strainer (5) and the gascolator cover (6).
7 Install in reverse sequence of removal.

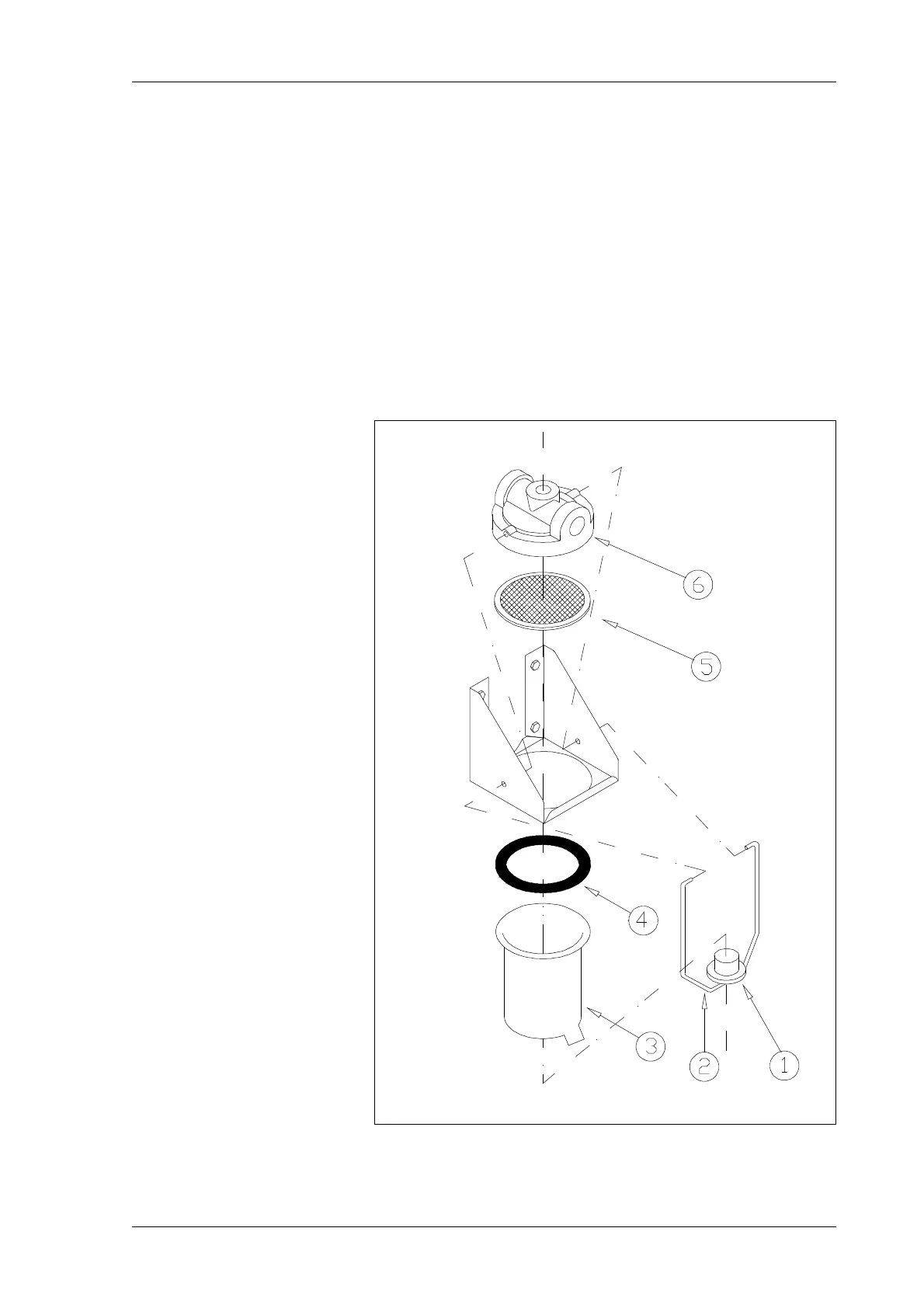

Gascolator Removal/Installation
Figure 9
