SERVICE MANUAL EXTRA 200
PAGE DATE: 1. July 1996
MAINTENANCE PRACTICES
28-21-04 Electrical Boost Pump Removal/Installation
1 Drain the fuel system per Chapter 12-10-02.
2 Disconnect the plug and the fuel lines on the boost pump.
3 Loosen the clamping device screws (1, Figure 10).
4 Remove the boost pump (2).
5 Install in reverse sequence of removal.

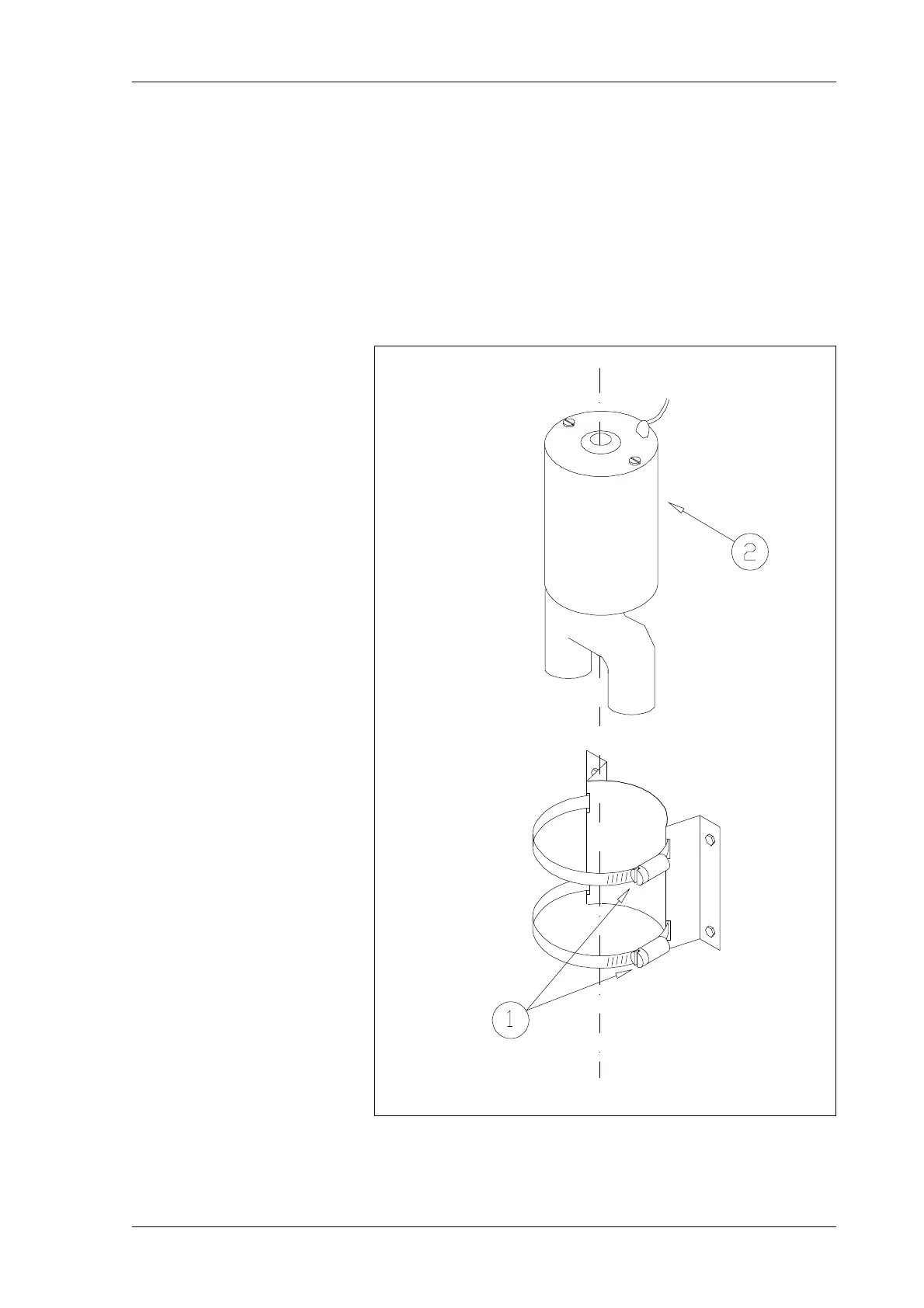

Boost Pump Removal/Installation
Figure 10
