Extra 200 - Page 212

CHAPTER 31
PAGE 7
EXT
RA - FLUGZEUGBAU GmbH
SERVICE MANUAL EXTRA 200
PAGE DATE: 1. July 1996
31-15-00 MAINTENANCE PRACTICES
I M P O R T A N T If replacement of the manifold, fuel, and oil pressure
lines inside the engine department is necessary, cover
the pressure lines with AEROQUIP AE102 fire sleeves
as per Chapter 20-10-07 in case of AEROQUIP hoses
are used.
31-15-01 Rear Instrument Cover
Removal/Installation
1 Remove the screws located at the top of the front seat
back rest (1, Figure 3).
2 Remove the outer screws (2) of the rear instrument panel
(The two inner screws connect the panel to the steel-
frame).
3 Remove the cockpit corner cover screws (3).
4 Remove the instrument and the cockpit corner covers.
5 Install in reverse sequence of removal.

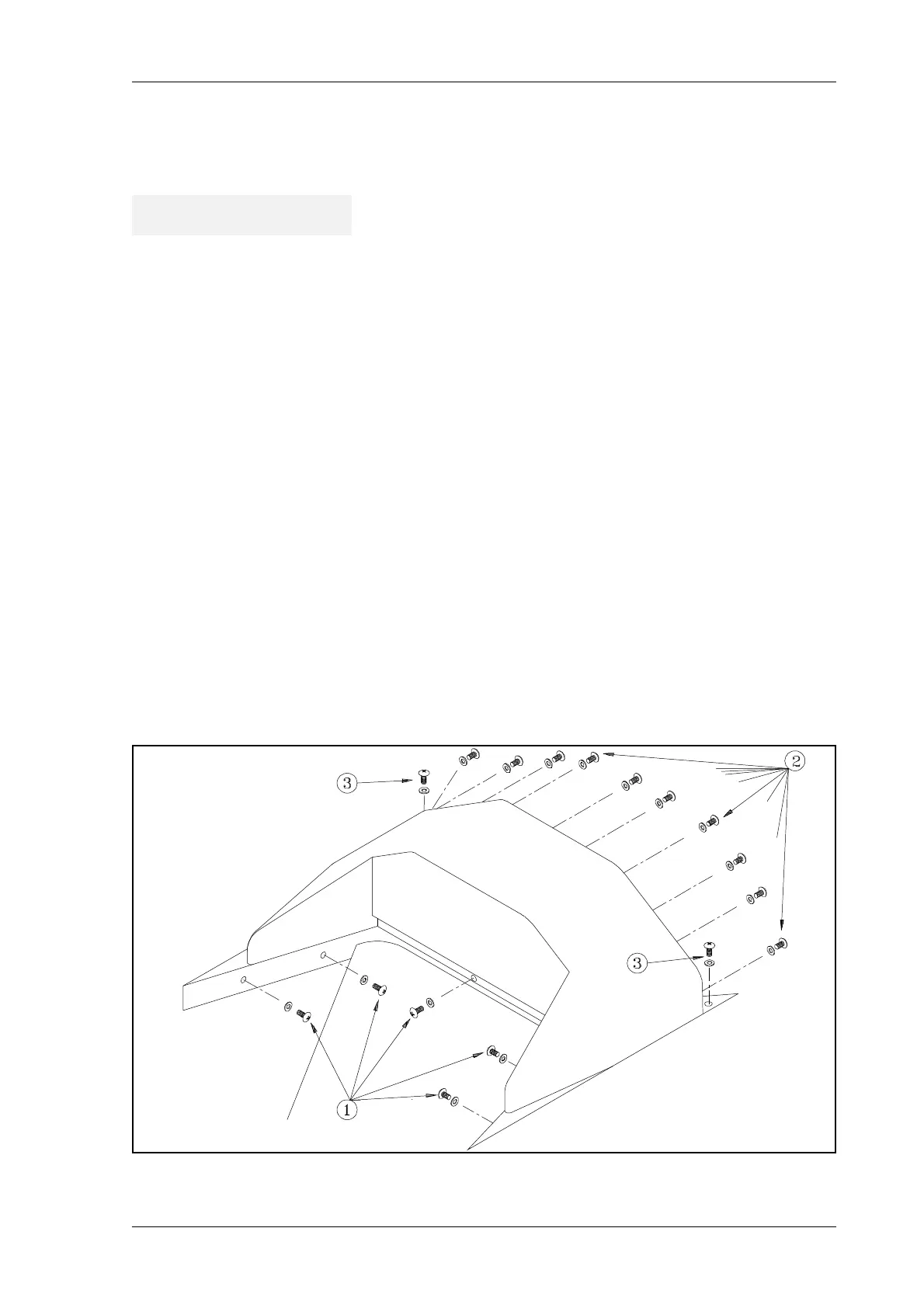

Instrument Cover Removal/Installation
Figure 3
