CHAPTER 79
PAGE 4
EXT
RA - FLUGZEUGBAU GmbH
SERVICE MANUAL EXTRA 200
PAGE DATE: 1. JuLy 1996
79-10-00 INVERTED OIL SYSTEM
The hose and fitting installation is modified to the standard
Christen Inverted Oil System. For identification of hoses
and fittings refer to Figures 1-2.
1 AEROQUIP 637/ MIL-H 6000+ Hose clips PN: PC-67207A1 hose lenght: 520mm
2 AEROQUIP 637/ MIL-H 6000+ Hose clips PN: PC-67207A2 hose lenght: 350mm
3 AEROQUIP* 303-10 + Hose Fittings 491-10D PN: PC-67207A3 hose lenght: 720mm
4 AEROQUIP* 303-10 + Hose Fittings 491-10D PN: PC-67207A4 hose lenght: 530mm
5 AEROQUIP* 303-10 + Hose Fittings 491-10D PN: PC-67207A5 hose lenght: 320mm
6 AEROQUIP* 303-10 + Hose Fittings 491-10D PN: PC-67207A6 hose lenght: 400mm

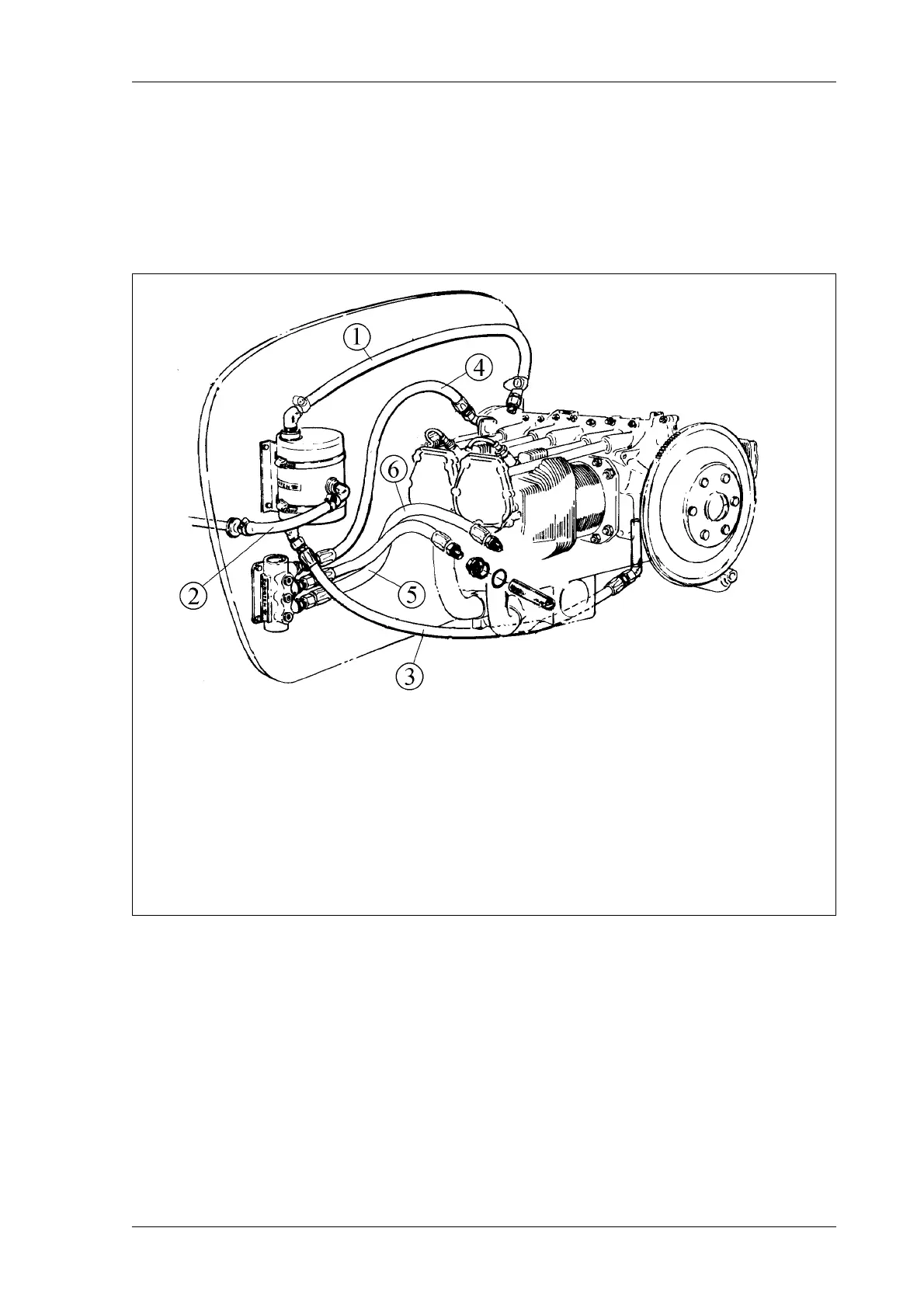

Hoses of Inverted Oil System
Figure 1
* Refer to Ch. 20-10-07
