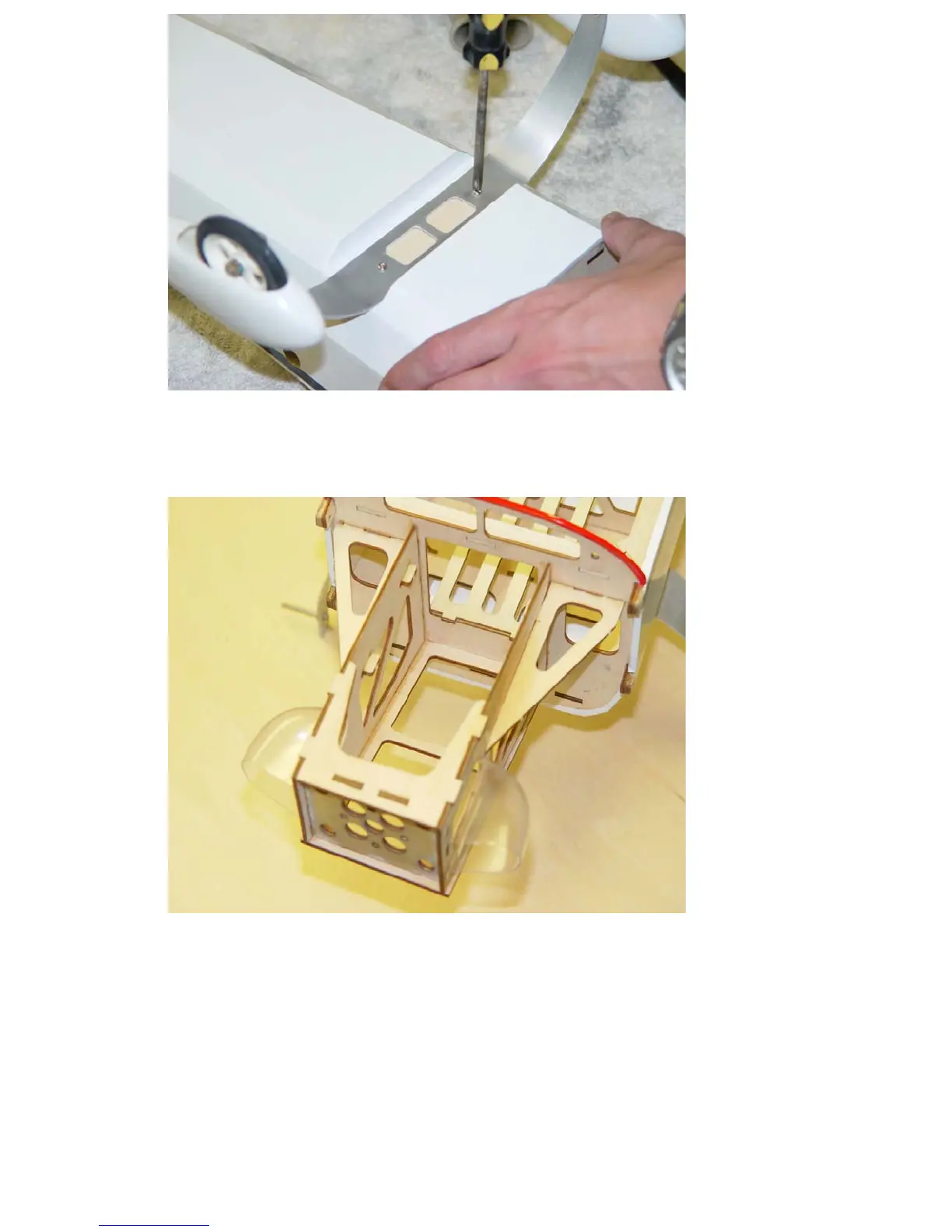

4. Locate the motor box assembly and the 2 laser cut triangular motor box supports.
Place the tabs in the motor mount assembly into the firewall and push down so that
they lock into place. Install the triangular supports as shown. Wick thin and medium
CA into all joints and allow to cure. Locate the 2 clear plastic air scoops and glue
them into place as shown.
5. Use the manufacturer supplied mounting hardware and mount the motor and ESC
as shown. The hole for the prop shaft may need to be reamed slightly to clear the
C-clip on the motor.
7
