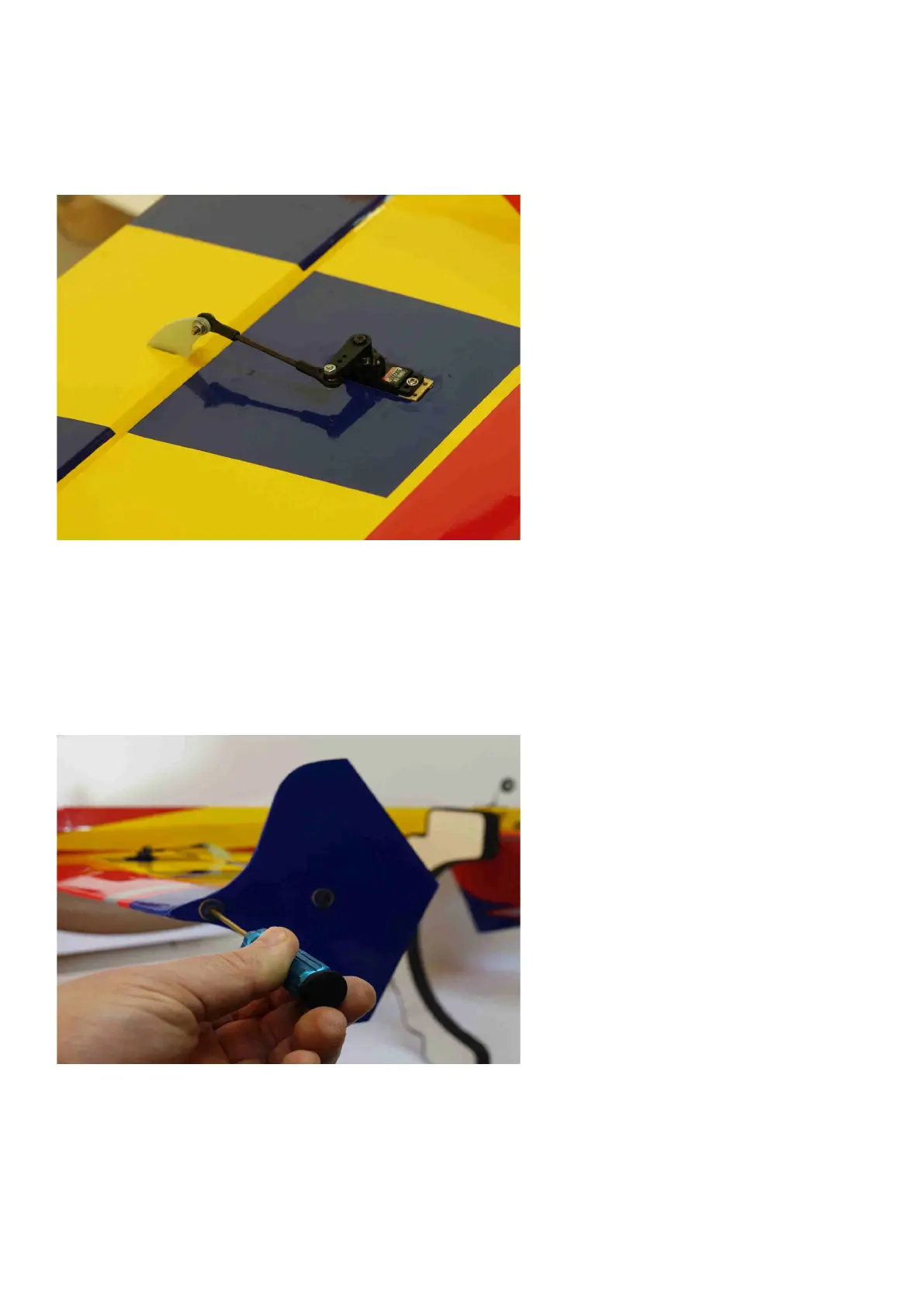

21. Insert the aileron servo into position and secure with the manufacturer supplied servo screws or
Extreme Flight socket head servo screws. Assemble the aileron linkage as shown. Please note that I have
installed the linkage on the bottom side of the servo arm. This reduces the chance of binding and allows
full deflection with the stock servo arm.
22.
Place a strip of Velcro onto the battery tray and onto your battery and use a Velcro
strap around the battery and tray to prevent the battery from being ejected during high G
maneuvers. Mount your receiver on the portion of the battery tray that extends behind
the wing tube with Velcro
.
23. If using the included Side Force Generators now is the time to mount them. Each
SFG mounts using 2 3mm bolts and 2 clear plastic washers. There are 2 clear plastic
spacers that go between the wing tip and the SFGs.
