2.

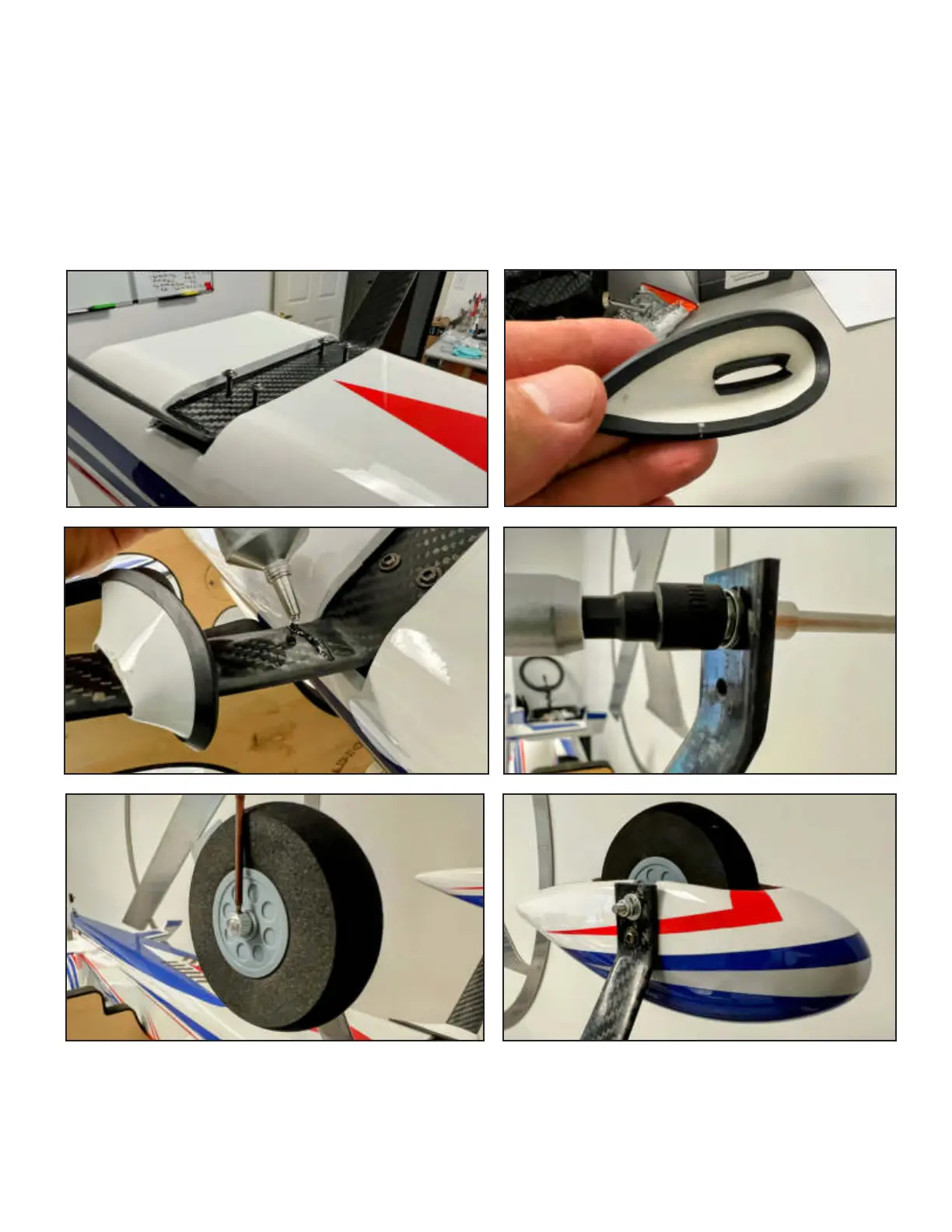

Installing main landing gear: Attach the carbon landing gear to the fuselage with screws as shown,
use blue Loctite (or other medium-strength threadlocker) on these screws. Note that there is a
“front” to the landing gear and when installed, they sweep slightly forward.
Locate the fairings, test t them, and then premanently attach them to the landing gear (not the
fuselage) using a generous amount of “Goop” or other rubberized adhesive. Allow to dry.
Locate the axles, attach to the landing gear as shown with washer and locking nut. Note there is
a at spot on the axle to engage the wheel collar set screw. Install the wheel and wheel collar, use
loctite on the collar set screw. Install the wheel pant with screw and loctite as shown.
