Extreme Flight EXTRA260 - Page 9

7.

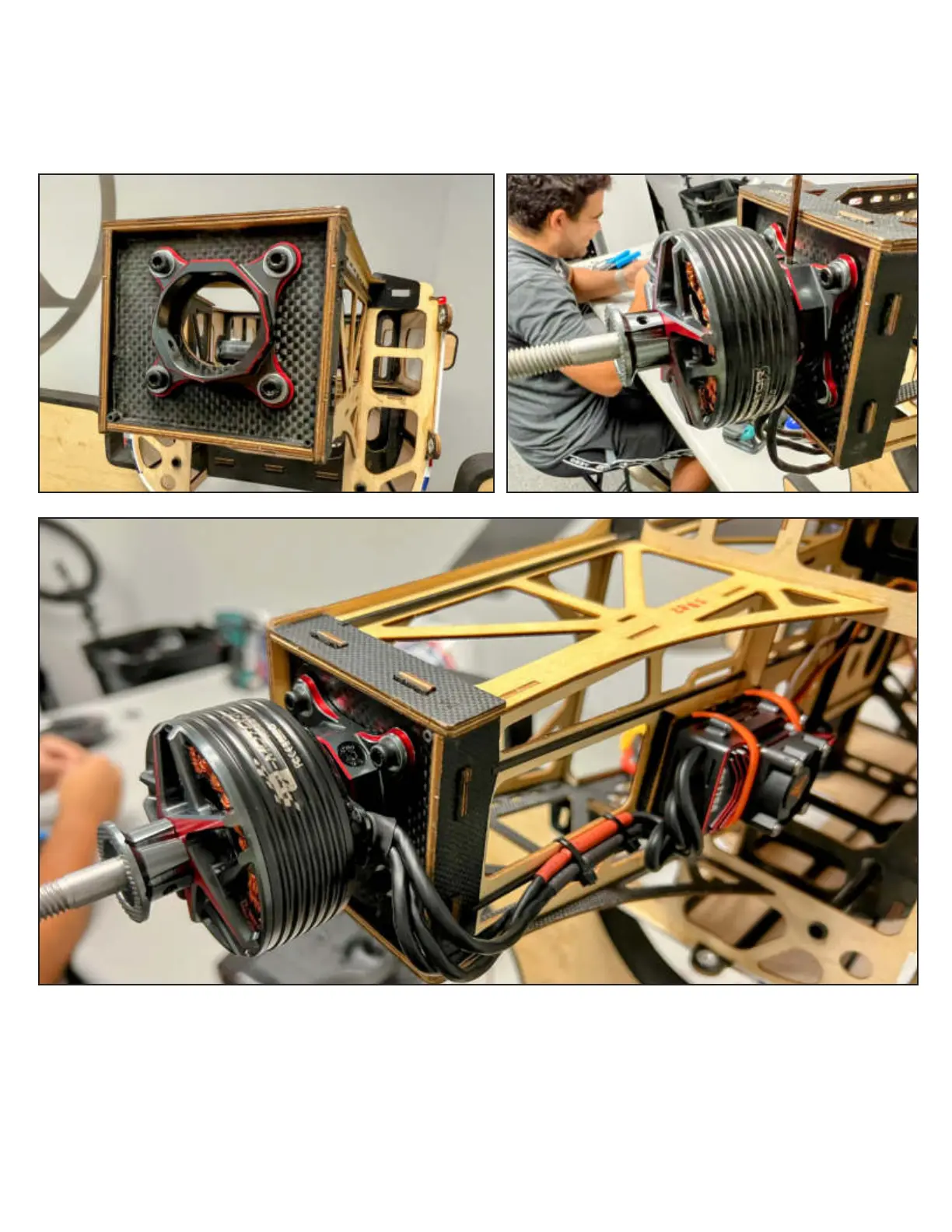

e 67” Extra 260 is congured for easy installation of the T-motor AM670 power system. Oth-
er systems will install similarly. Mount the motor X-mount to the rewall as shown, use Loctite.
Attach the motor to the X-mount as shown. Mount the ESC to the mounting pad on the bottom
of the motor box with zip-ties as shown. Neatly run the wires and retain them with zip ties.
