• 2 Stacking/SFP-DD ports
Note
These ports can operate either as stacking ports, or as 10G Ethernet ports
with SFP+ optics using the disable stacking-support command.
• 1 Serial console port (RJ-45)
• 1 10/100/1000BASE-T out-of-band management port
• 2 USB Type-A ports for management or external ash
• 1 USB Micro-B console port

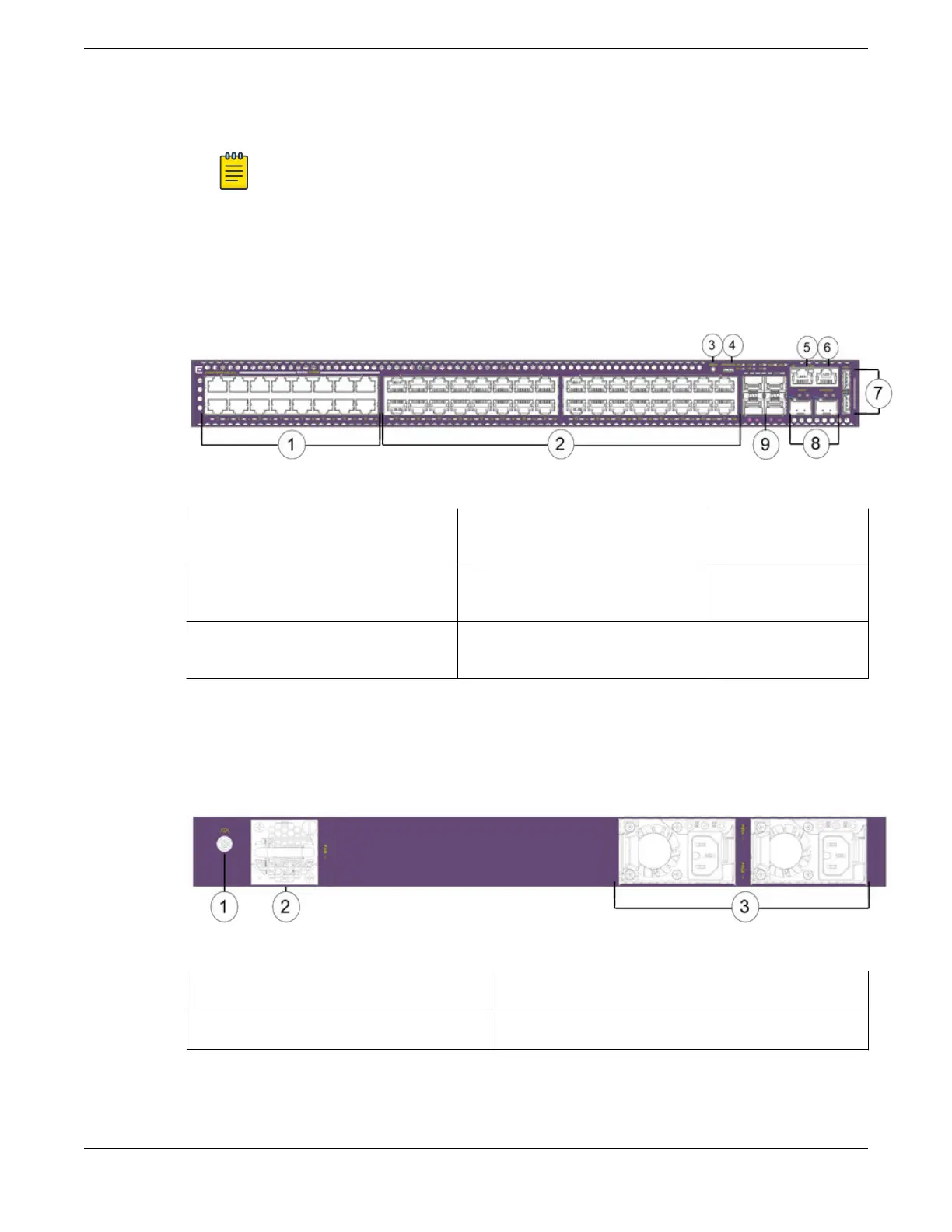

Figure 23: 5420M-16MW-32P-4YE Front Panel
1 = 100Mb/1Gb/2.5Gb
ports10/100/1000BASE-T ports
4 = USB Micro-B console port 7 = USB Type-A
ports
2 = 10/100/1000BASE-T ports 5 = 10/100/1000BASE-T out-of-
band management port
8 = SFP-DD
stacking ports
3 = Mode button 6 = RJ-45 serial console port 9 = 1/10/25G SFP28
ports
The rear panel of the switch includes:
• 1 fan module
• Grounding lug
• 2 power supply slots
Figure 24: 5420M-16MW-32P-4YE Rear Panel
1 = Grounding lug
3 = Power supply slots
2 = Fan module
ExtremeSwitching 5420 Series Overview 5420M-16MW-32P-4YE Switch Features
