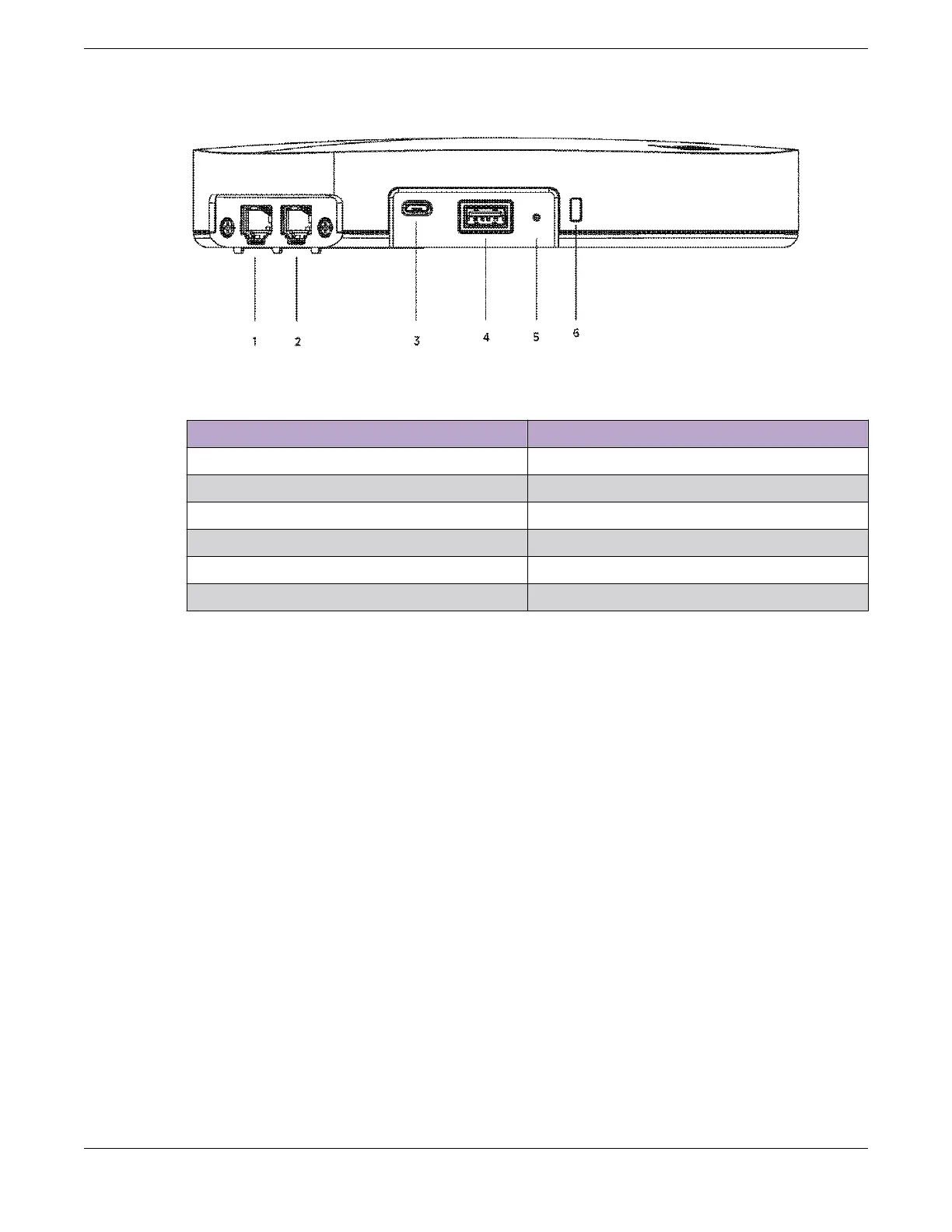

Figure 1: AP4000 hardware components
Callout Description
1 Eth1
2 Eth0/PoE+
3 Console port
4 USB port
5 Reset button
6 Security Kensington lock
The access point has the following features:
• One multicolor LED status light
For LED activity description, see Status LED Activity Description on page 11.
• One light sensor located at the top of the device
• Two Ethernet ports - Eth0 and Eth1
Ethernet ports (Eth0 and Eth1) automatically negotiate half- and full-duplex connections with the
connecting device.
◦ Eth0: 100/1000/2500 Mbps auto-negotiation Ethernet port, RJ45, Power over Ethernet (PoE) at
802.3at
◦ Eth1: 10/100/1000 Mbps auto-negotiation Ethernet port, RJ45
These ports are auto-sensing and adjust to straight-through and crossover standard Cat5e or
better Ethernet cables automatically. The access point receives power through an Ethernet
connection to the Eth0 port from power sourcing equipment (PSE) that is compatible with the
802.3at and 802.3at standards.
• One USB port
Use the USB port to connect USB-based beacons such as iBeacon and Internet of Things (IoT)
devices. Remove the screw that secures the protective cover to access the USB port.
• One micro USB console port
AP4000 Access Point Overview
Features
ExtremeWireless™ Indoor Access Point AP4000 9
