4. Remove and retain the nut securing the ground strap to the chassis ground stud (see
figure 79 on the previous page,
2
). Remove the ground strap.
5. Remove and retain the two screws that secure the switcher power distribution box
panel in place (
3
). Lift the power box from the switcher.
6. Remove and retain the screw securing the power distribution box cover in place (see
figure 80,
1
). Remove the cover.

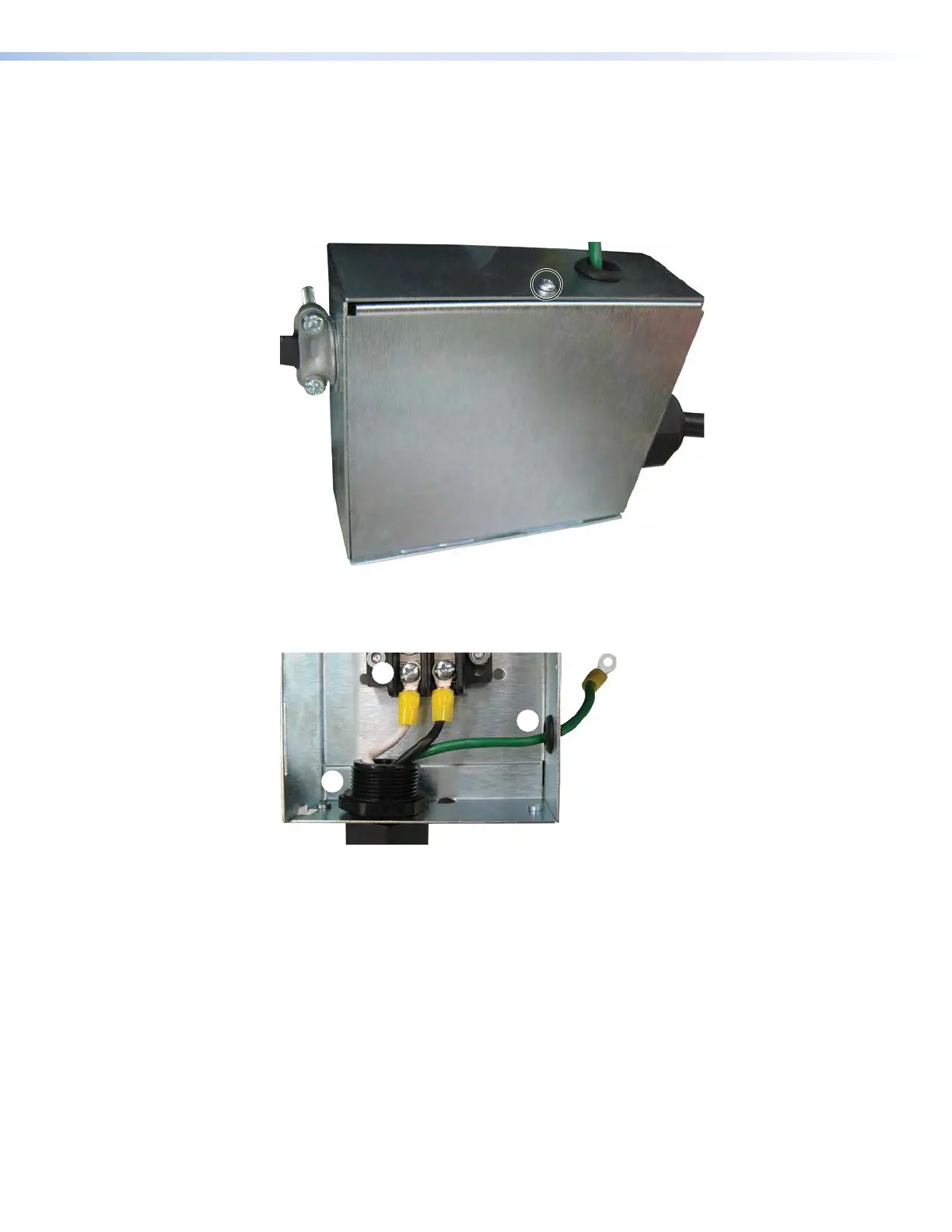

Figure 80. Power Distribution Cover
7. Disconnect the two external wiring terminal lugs from the terminal block inside the
switcher power distribution box (see figure 81,
1
). Retain the screws.
22
11
33
Figure 81. Power Distribution Box Interior
8. Gently pull the ground cable through the rubber grommet into the power distribution
box (
2
).
9. Unscrew the cable clamp on the power distribution box (
3
). Gently pull the exterior
cable free of the power distribution box.
10. Gently push the terminated cables of the replacement power cord through the cable
clamp and into the power distribution box. Loosely reassemble the cable clamp.
11. Gently push the ground (green and yellow) cable through the rubber grommet in the
side of the power distribution box.
12. Adjust the length of the cables inside the power distribution box until they reach the
terminal block and ground stud with minimal excess.
13. Tighten the cable clamp.
XTP II CrossPoint 1600, 3200, and 6400 Switchers • Maintenance and Modifications 149
