Input and output pin assignments and wiring
TP connectors
It is essential that your cables (on the XTP and LAN [Ethernet] connectors) be the correct
type and that they be properly terminated with the correct pinout. These links use
unshielded twisted pair (UTP) or shielded twisted pair (STP) cables, terminated with RJ-45
connectors. XTP and LAN cables are limited to a length of 330 feet (100 m).
NOTES:
• Do not use standard telephone cables. Telephone cables do not support Ethernet
or Fast Ethernet.
• Do not stretch or bend cables. Transmission errors can occur.
The cable used depends on your network speed. The switcher LAN port supports both
10 Mbps (10Base-T — Ethernet) and 100 Mbps (100Base-T — Fast Ethernet), half-duplex
and full-duplex Ethernet connections. Input and output boards support 100Base-T only.
• 10Base-T Ethernet requires CAT 3 UTP or STP cable at minimum.
• 100Base-T Fast Ethernet requires CAT 5e UTP or STP cable at minimum.
The TP cable can be terminated as a straight-through cable or a crossover cable and must
be properly terminated for your application (see figure 19).
• Crossover cable — Direct connection between the computer and the XTP II matrix
switcher
• Patch (straight) cable — Connection of the XTP II matrix switcher to an Ethernet LAN
and connection to the input and output board XTP connectors.
A cable that is wired as T568A at one end
and T568B at the other (Tx and Rx pairs
reversed) is a "crossover" cable.
A cable that is wired the same at both ends is
called a "straight-through" cable, because
no pin-pair assignments are swapped.
12345678
RJ-45
Connector
Inser
t Twisted
Pair Wires
Pins:
Crossover Cable Straight-through Cable
Pin
1
2
3
4
5
6
7
8
Wire color
White-green
Green
White-orange
Blue
White-blue
Orange
White-brown
Brown
Wire color
T568A T568B
End 1 End 2 End 1 End 2
White-orange
Orange
White-green
Blue
White-blue
Green
White-brown
Brown
Pin
1
2
3
4
5
6
7
8
Wire color
White-orange
White-green
Blue
White-blue
White-brown
Brown
Wire color
T568BT568B
White-orange
OrangeOrange
White-green
Blue
White-blue
GreenGreen
White-brown
Brown

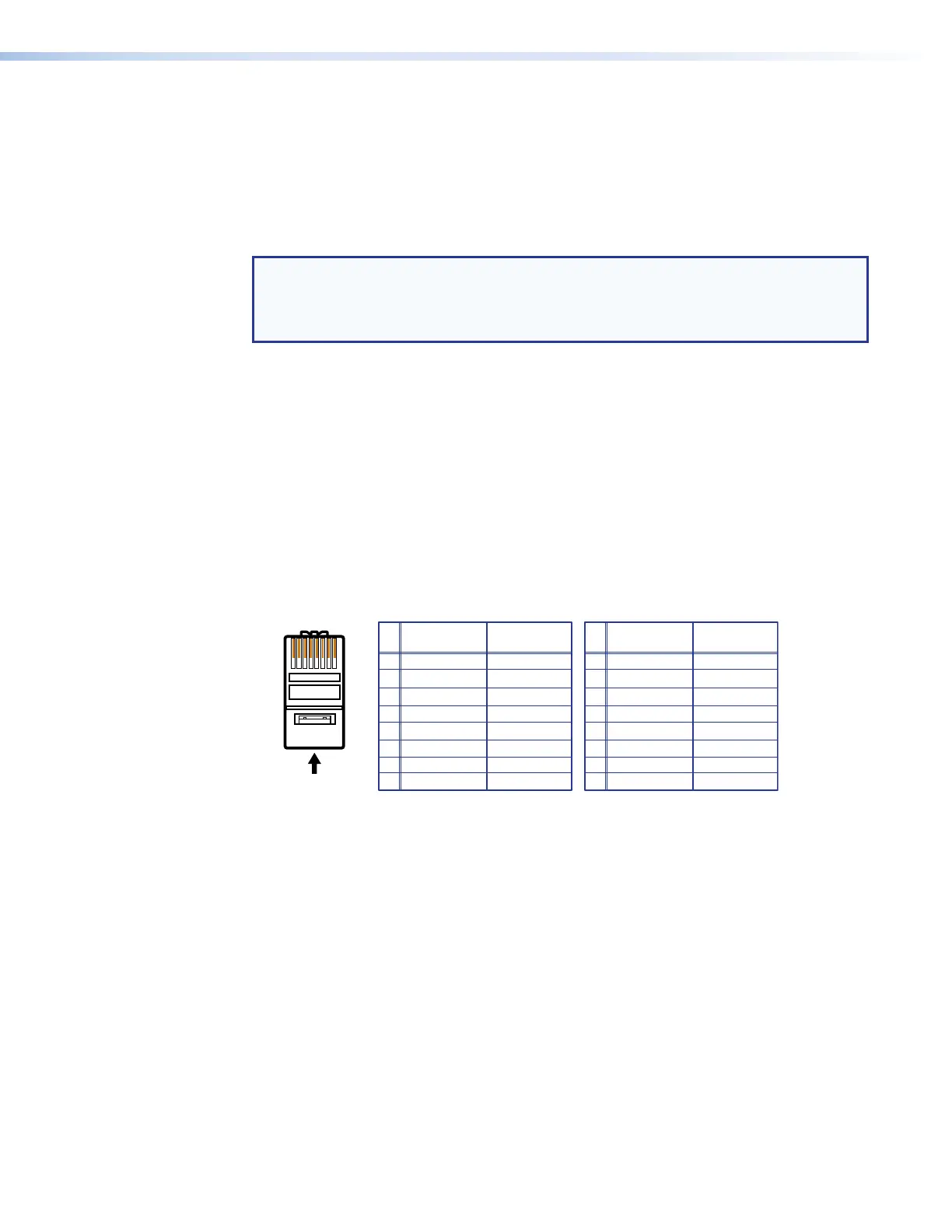

Figure 19. RJ-45 Connector and Pinout Tables
Switcher and XTP board LAN ports —
The LAN ports require CAT 3, CAT 5e, or CAT 6a, crossover or patch cables.
XTP II CrossPoint 1600, 3200, and 6400 Switchers • Installation 21
