Extron electronics XTP II CrossPoint 1600 User Manual

4. Change the audio level: Press and release the View (
<
) button once (see figure 41) to
decrease the input audio level by 1 dB.
Press and release the View (
<
) button several more times (see figure 41) to decrease
the input audio level by 1 dB per button press. Note the output button indication
changes that occur each time the View (
<
) button is pressed.

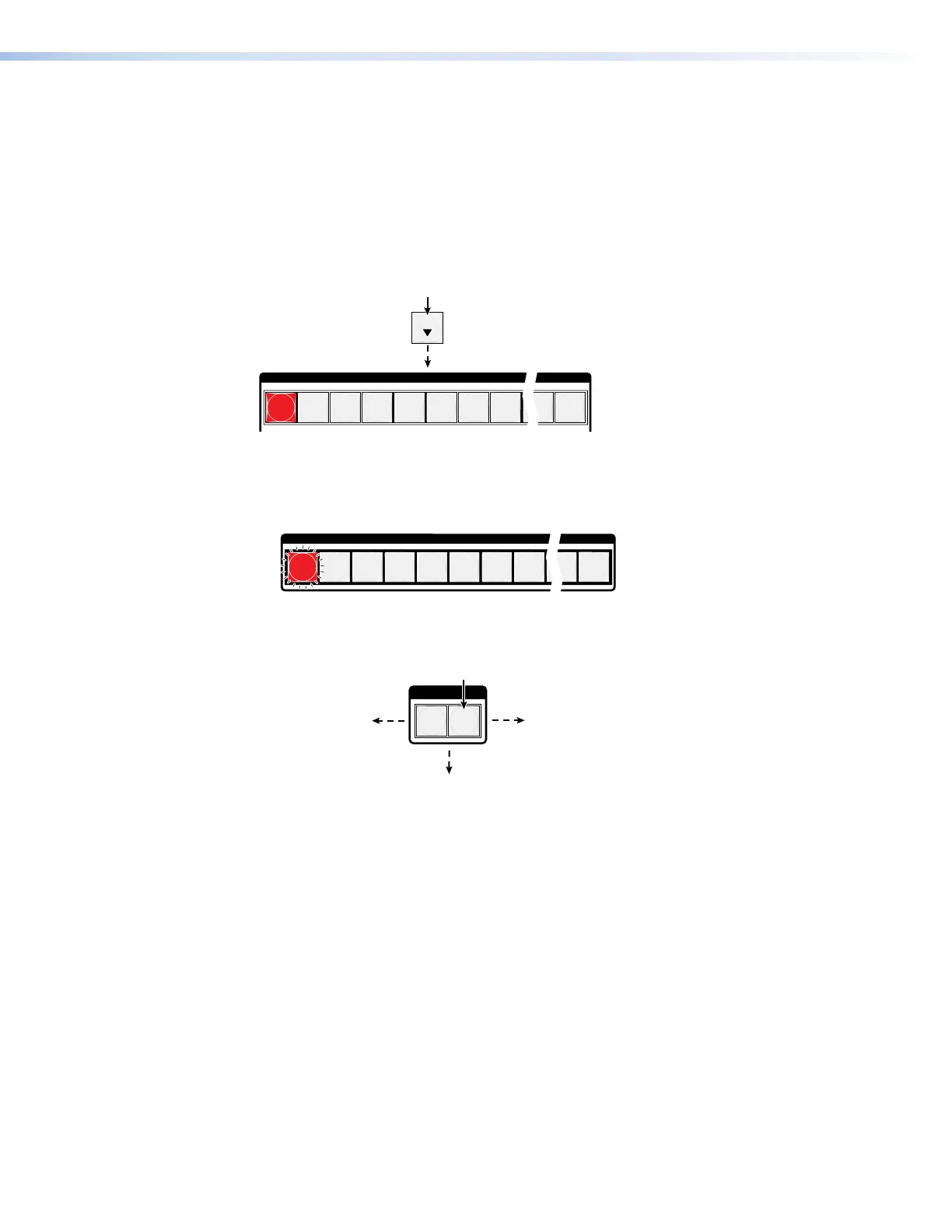

Figure 41 and figure 42 show the result of pressing the View (
<
) button a total of nine
times, an audio attenuation level of –1 dB. Note that the level is now displayed in red to
indicate a negative level.
VIEW
OUTPUTS
1
2
3
4
5
6 7
8
15
16
Press the button.
The output buttons display the audio level and
polarity (gain or attenuation) of the selected input.
Each output button indicates 1 dB when lit.
When the buttons are lit green, they indicate a
gain (+) audio level.
When the output buttons are lit red, they indicate
an attenuation (-) level.
•
•
Figure 41. Adjust the Analog Input Audio Level
Figure 42 shows the same –1 dB level as in figure 41, but displayed on an
XTP II CrossPoint 1600 switcher.
OUTPUTS
1
2
3
4
5
6 7
8
15
16
Figure 42. Level Display on an XTP II CrossPoint 1600 Switcher
5. Exit Audio mode: Press and release the Audio button.
I / O
VIDEO AUDIO
The Audio button stops
blinking and lights.
Press the button.
All input buttons and output buttons
return to unlit or background illumination.
The Video button
lights green.
XTP II CrossPoint 1600, 3200, and 6400 Switchers • Operation 56
