Ezgo SHUTTLE 4 - Fig. 37 Vehicle Dimensions

Page 25
*(1(5$/63(&,),&$7,216
Owner’s Manual and Service Guide

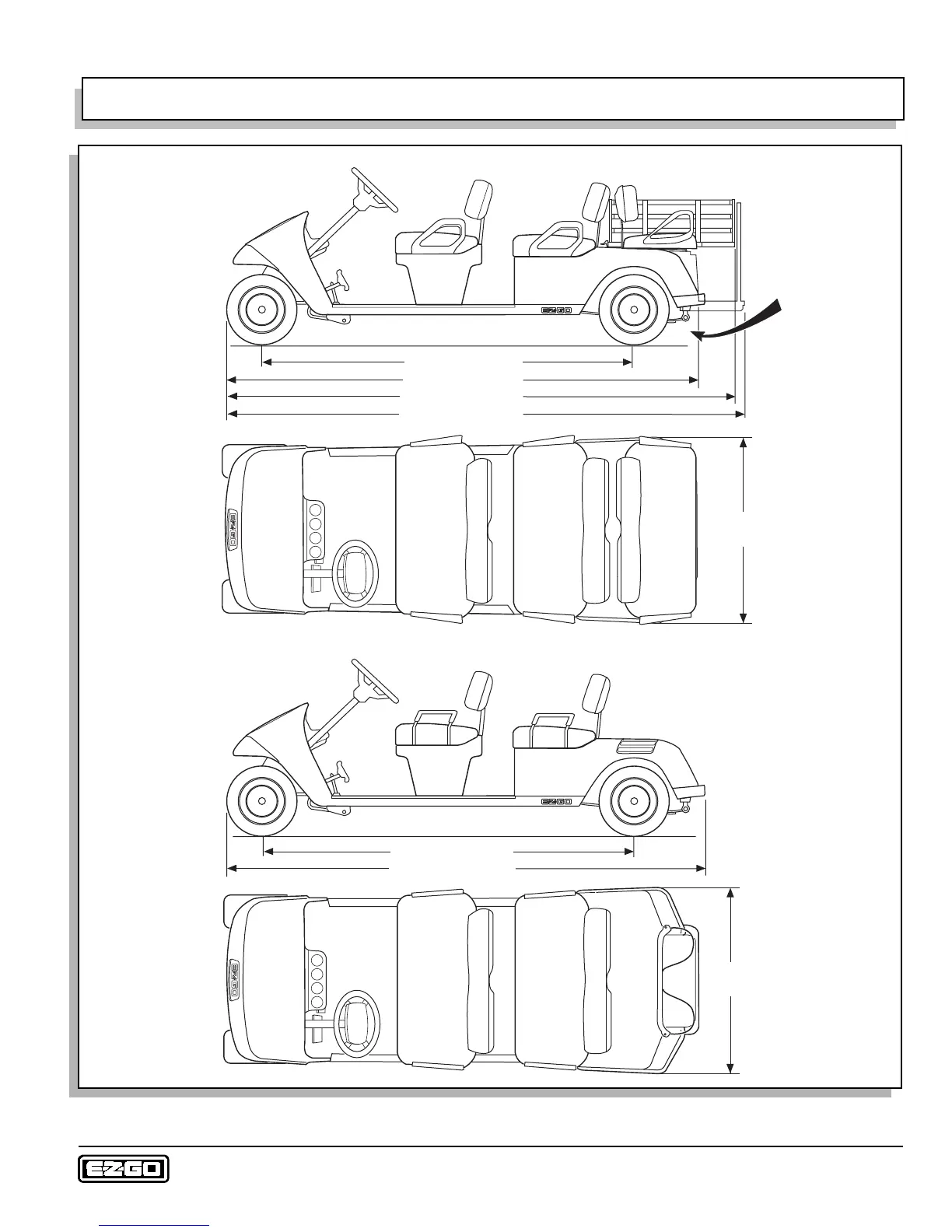

Fig. 37 Vehicle Dimensions
46.5 in.
(118 cm)
122 in. (310 cm)
132.5 in. (337 cm)
134.5 in. (342 cm)
93.5 in. (237 cm)
SHUTTLE 4
SHUTTLE 6
46.5 in.
(118 cm)
122 in. (310 cm)
93.5 in. (238 cm)
TG5
Lowest Clearance
At Differential
4.25 in. (10.8 cm)
(All Models)
