FAAC 452 MPS User Manual

2
ENGLISH
230 VAC
50 Hz


C1
J4
J1
J3
PE N
L
MAIN
1 2 4 5 6 7 8
COM
OP
M1
COM
OP
M2
CL
LAMP
9 10 11 12 13 14 15 16 17 18 19
OPEN
A
B
STP
CL
OP
FSW
- - -
+24V
+ +
-TX
FSW
20 21
W.L.
LOCK
J5
3
230 VAC
max.60W

M1
C2
M2

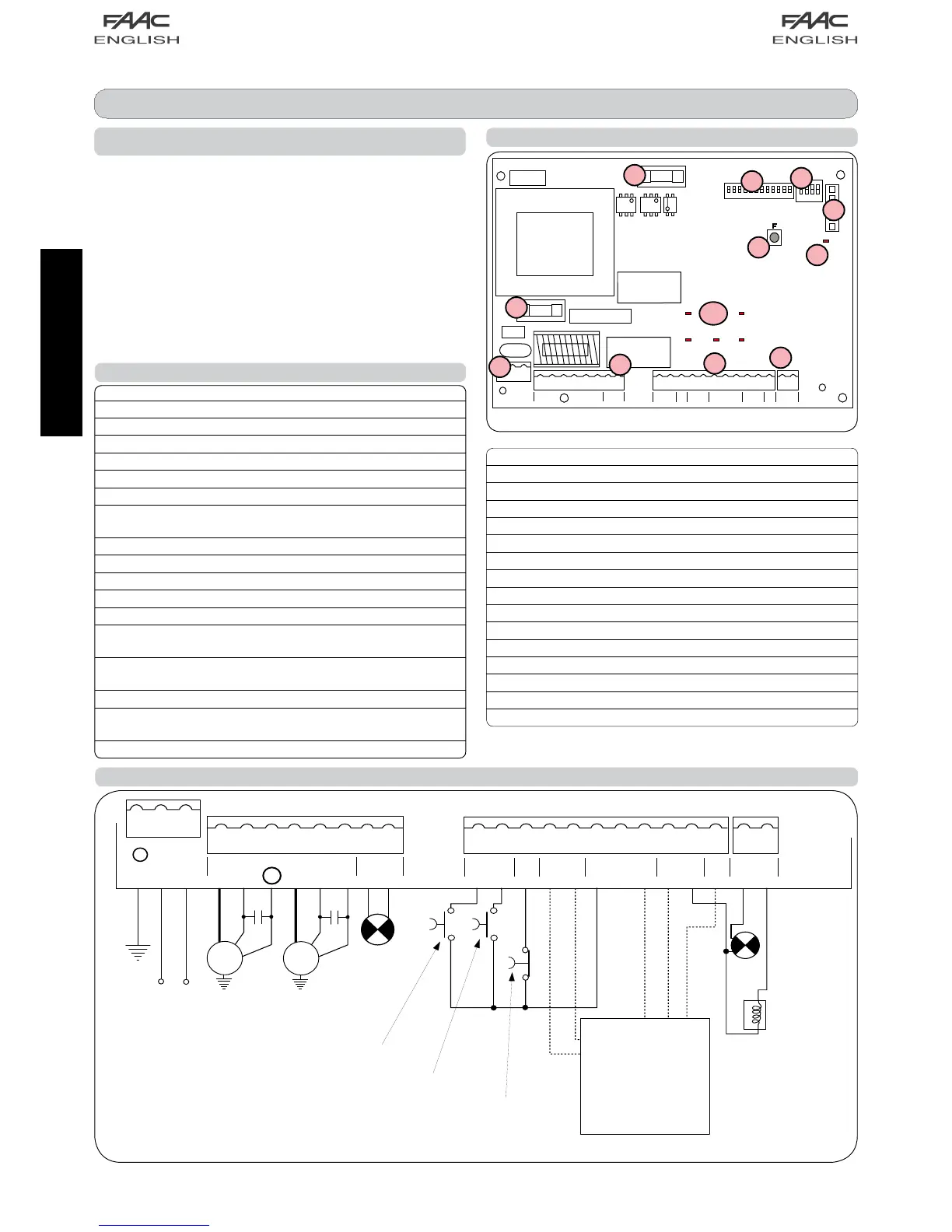

3. LAYOUT AND COMPONENTS OF 452 MPS
Fig. 1
For connection
of the photocells
and safety
devices, see p
aragraph 4.1 (page
3).
NB.: Capacitors are supplied with the operators.
Fig. 2
J4
J1
J3
F1
F2
1 2 3 4
9 10 11 125 6 7 81 2 3 4
PE N
L
MAIN
1 2 4 5 6 7 8
COM
OP
M1
COM
OP
M2
CL
LAMP
9 10 11 12 13 14 15 16 17 18 19
OPEN
A
B
STP
CL
OP
FSW
- - -
+24V
+ +
-TX
FSW
20 21
W.L.
LOCK
J5
J2
F
DL10
OP A OP B
STOP FSWOP FSWCL
TOTALLY OPEN
OPEN LEAF 1
STOP
1. WARNINGS
Important: Before attempting any work on the control board
(connections, maintenance), always turn off power.
- Install, upstream of the system, a differential thermal breaker
with adequate tripping threshold.
- Connect the earth cable to the appropriate terminal on the J3
connector of the equipment (see fig.2).
- Always separate power cables from control and safety cables
(push-button, receiver, photocells, etc.). To avoid any electric
noise, use separate sheaths or a shielded cable (with earthed
shield).
4. ELECTRIC CONNECTIONS
Led OP_A TOTALLY OPEN LED
Led OP_B LED: OPEN LEAF 1 / CLOSE
Led STOP LED STOP
Led FSWCL LED: CLOSING SAFETY DEVICES
Led FSWOP LED: OPENING SAFETY DEVICES
DL10 LED: TIME LEARNING SIGNALLING
J1 LOW VOLTAGE TERMINAL BOARD
J2 CONNECTOR FOR DECODER/MINIDEC/RP RECEIVER
J3 230 VAC POWER SUPPLY TERMINAL BOARD
J4 MOTORS AND FLASHING LAMP CONNECTION TERMINAL BOARD
J5 INDICATOR-LIGHT AND ELECTRIC LOCK TERMINAL BOARD
F1 MOTORS AND TRANSFORMER PRIMARY WINDING FUSE (F 5A)
F2 LOW VOLTAGE AND ACCESSORIES FUSE (T 800mA)
F
TIME LEARNING PUSH-BUTTON
DS1 1ST GROUP OF MICROSWITCH PROGRAMMING
DS2 2ND GROUP OF MICROSWITCH PROGRAMMING
F
F1
F2
J1
J2
J3
J4
J5
Led
DL10
DS1
DS2
2. TECHNICAL SPECIFICATIONS
Power supply 230 V~ ( +6% -10%) - 50 Hz
Absorbed power
10 W
Motor max. load
800 W
Accessories max. load
0,5 A
Electric lock max. load
15 VA
Operating ambient temperature -20 °C +55 °C
Protection fuses
2 (see fig. 1)
Function logics Automatic / Semi-automatic / "Stepped" Safety device / Semi-automatic B/
Dead-man C / "Stepped" semi automatic
Opening/closing time
Programmable (from 0 to 120 s)
Pause time
0, 10, 20, 30, 60, 120 s
Closing leaf delay
0, 5, 10, 20 s
Opening leaf delay 2 s (Can be disabled with the dip-switch)
Thrust force
Dip-switch adjustable on 8 levels for each motor
Terminal board inputs
Open / Open free leaf / Stop / Opening safety devices /
Closing safety devices / Power supply + Earth
Terminal board outputs Flashing lamp - Motors - 24 Vdc accessories power supply - 24 Vdc
indicator-light - Fail safe - 12 Vac electric lock power supply
Rapid connector To connect Minidec, Decoder or RP cards
Selectable functions Logics and pause times - Thrust force - Opening and closing leaf delay
- Reversing stroke -Fail safe - Closing safety devices logic - Pre-flashing
Programming key
work time learning
BLU
BLU
CONTROL BOARD 452 MPS
