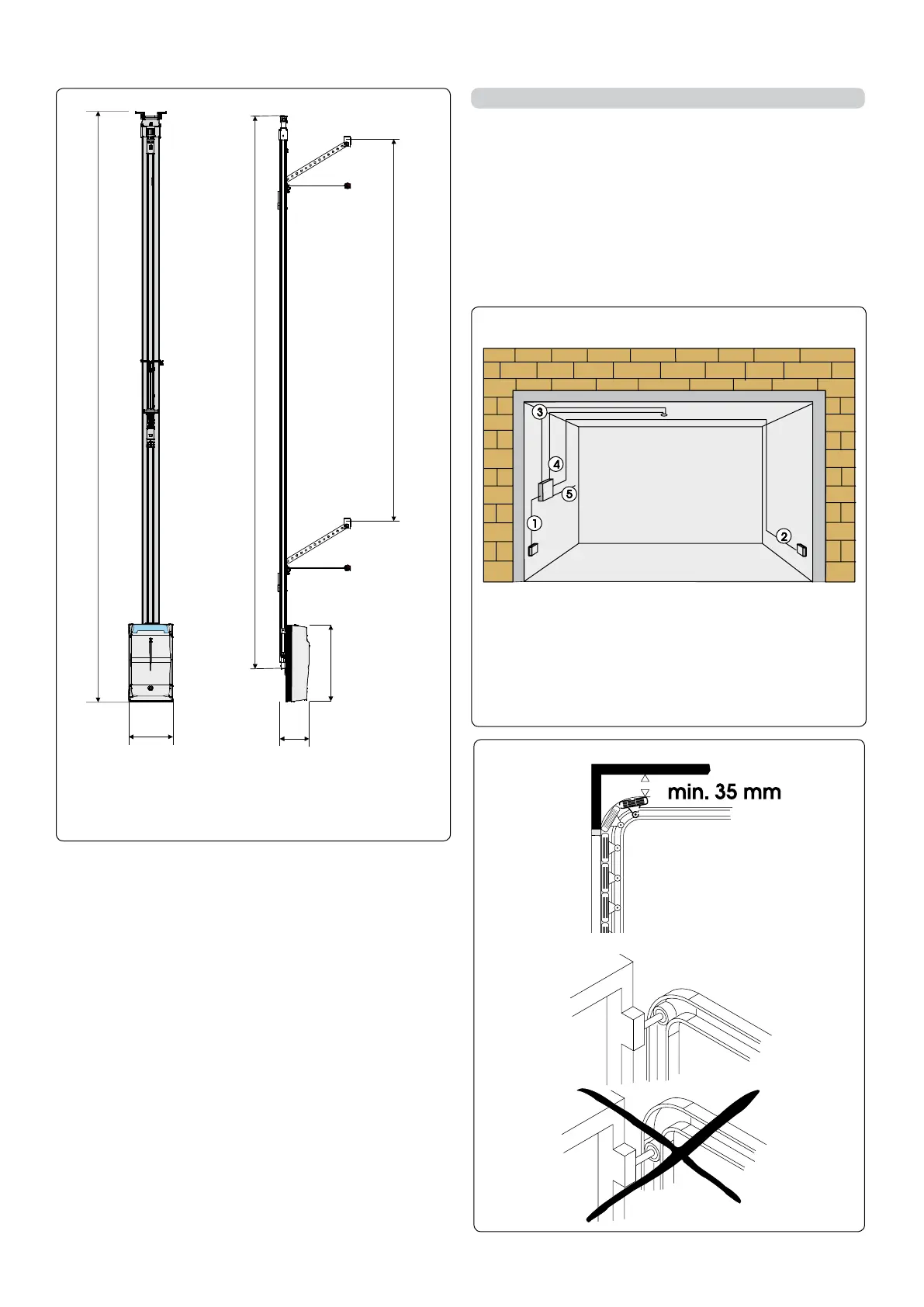

3
200
145
3370 (for disassembled rail)
360
mm
Prepare the electric system in keeping with the instructions in
the chapter entitled “Warnings for the installer”.
When you have finished installing, check if any external pipes
or cables can come into contact with moving parts.
Install the fixed control points at a minimum height of 150 cm,
clear of the door movement area, but in a position enabling
visual control of that area.
Cable 2 x 0.5 mm
2
(TX photocell)
Cable 4 x 0.5 mm
2
(RX photocell)
Power pipe (230V)
Low voltage pipe
Cable 2 x 1.5 mm
2
(power)
3 ANCILLARY ELECTRICAL EQUIPMENT
3200 (for disassembled rail)
2600 (for disassembled rail)
* For rail assembling, plase refere to
dedicate instruction
*
*
