4
200
145
2168 / 2768 / 3368
360
ENGLISH
The level of noise emission of operator D1000, referred
to the work station, is 52 dB(A).
These instructions apply to model FAAC D1000.
The D1000 automated systems make it possible to automate
balanced sectional doors of single garages for residential
use.
They consist of an electro-mechanical operator, electronic
control unit and courtesy light built into a single unit. This unit is
fitted to the ceiling and opens the door by means of a transmission
chain or belt.
The system is non-reversing and, therefore, the door locks
mechanically when the motor is not operating and, consequently,
no lock is necessary; two manual releases, one on the inside
and one on the outside (optional) make it possible to move the
door in case of a power cut or fault.
The operator is supplied with an electronic device that detects
the presence of an obstacle that would hinder door movement
- the device prevents crushing or lifting.
This instruction refers to the operator with chain drive, but the
same procedures, regulations and application limits apply also
to the belt driven operator.
The D1000 automated systems were designed and built for
indoor use and to control vehicle access. Do not use them for
any other purpose.

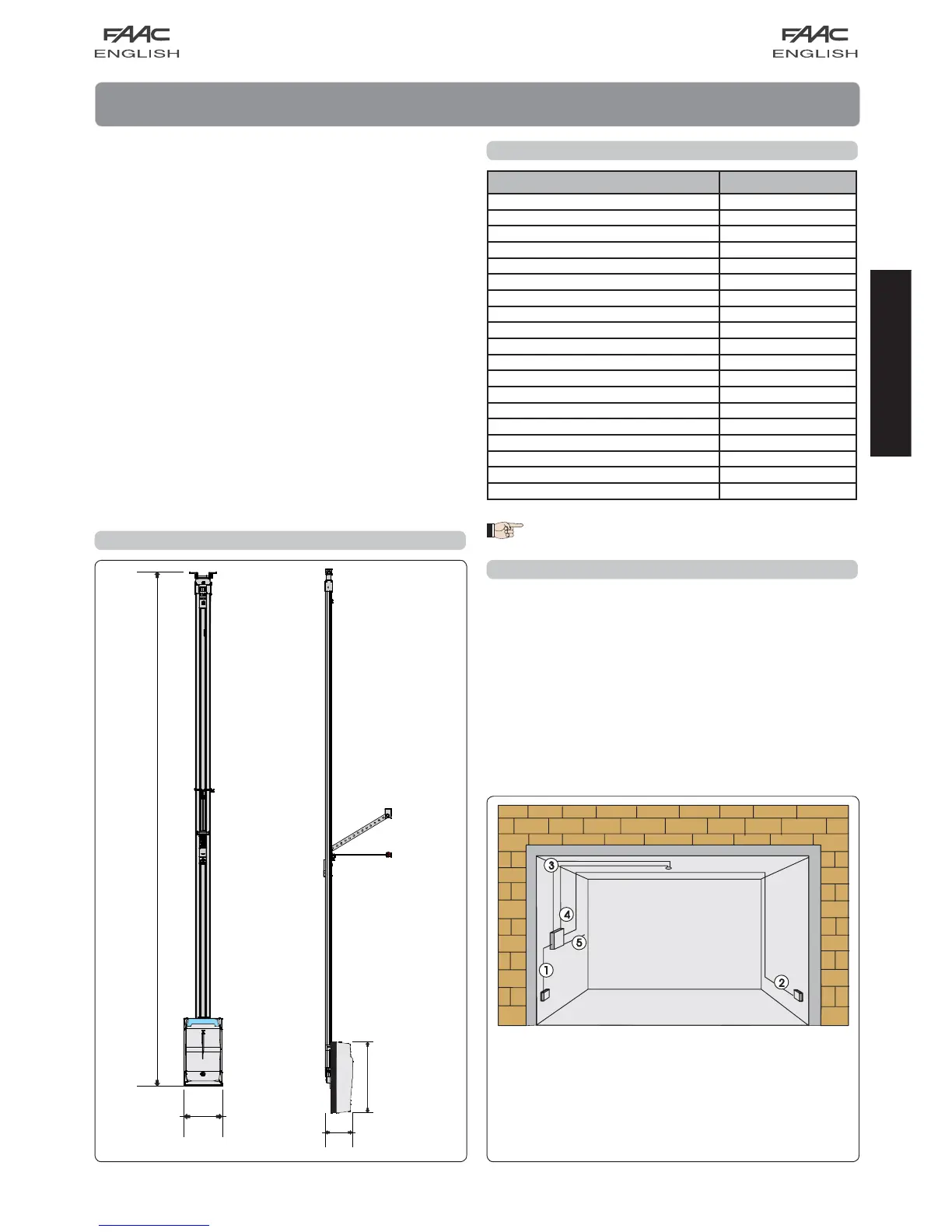

1. DIMENSIONS
2. TECHNICAL SPECIFICATIONS
AUTOMATED SYSTEM D1000
3. ANCILLARY ELECTRICAL EQUIPMENT
Prepare the electric system in keeping with the instructions in
the chapter entitled “Warnings for the installer”.
When you have finished installing, check if any external pipes
or cables can come into contact with moving parts.
Install the fixed control points at a minimum height of 150 cm,
clear of the door movement area, but in a position enabling
visual control of that area.
Cable 2 x 0.5 mm
2
(TX photocell)
Cable 4 x 0.5 mm
2
(RX photocell)
Power pipe (230V)
Low voltage pipe
Cable 2 x 1.5 mm
2
(power)
Fig. 2
Dimensions in mm.
Fig. 1
Model D1000
Power supply (V ~ / 50 Hz.) 230
Electric motor (Vdc) 24
Maximum absorbed power (W) 350
Thrust force (N) 600/1000
Type of use continuous
Maximum dimensions from ceiling (mm) 35 (Fig. 4)
Courtesy light (V ~/W) 230 / 40 max.
Courtesy light timer (sec) 120
Standard speed with no-load carriage (m/min)
8,9
Slow speed with no-load carriage (m/min) 4,5
Carriage deceleration speed (m/min) 1,1
Noise at standard speed (dB(A)) 52
Travel length at deceleration
Varies according to set-up
Intrinsic safety device Category 2
Maximum sectional door width (mm) 5000
Maximum sectional door height (mm) See useful travel
Sliding guide useful travel (mm)
2500 - 3100 - 3800
Protection class For indoor use only (IP20)
Operating ambient temperature (°C) -20 / +55
