E721 6 532014 - Rev.E
OUT
OUT
OUT
ENGLISH

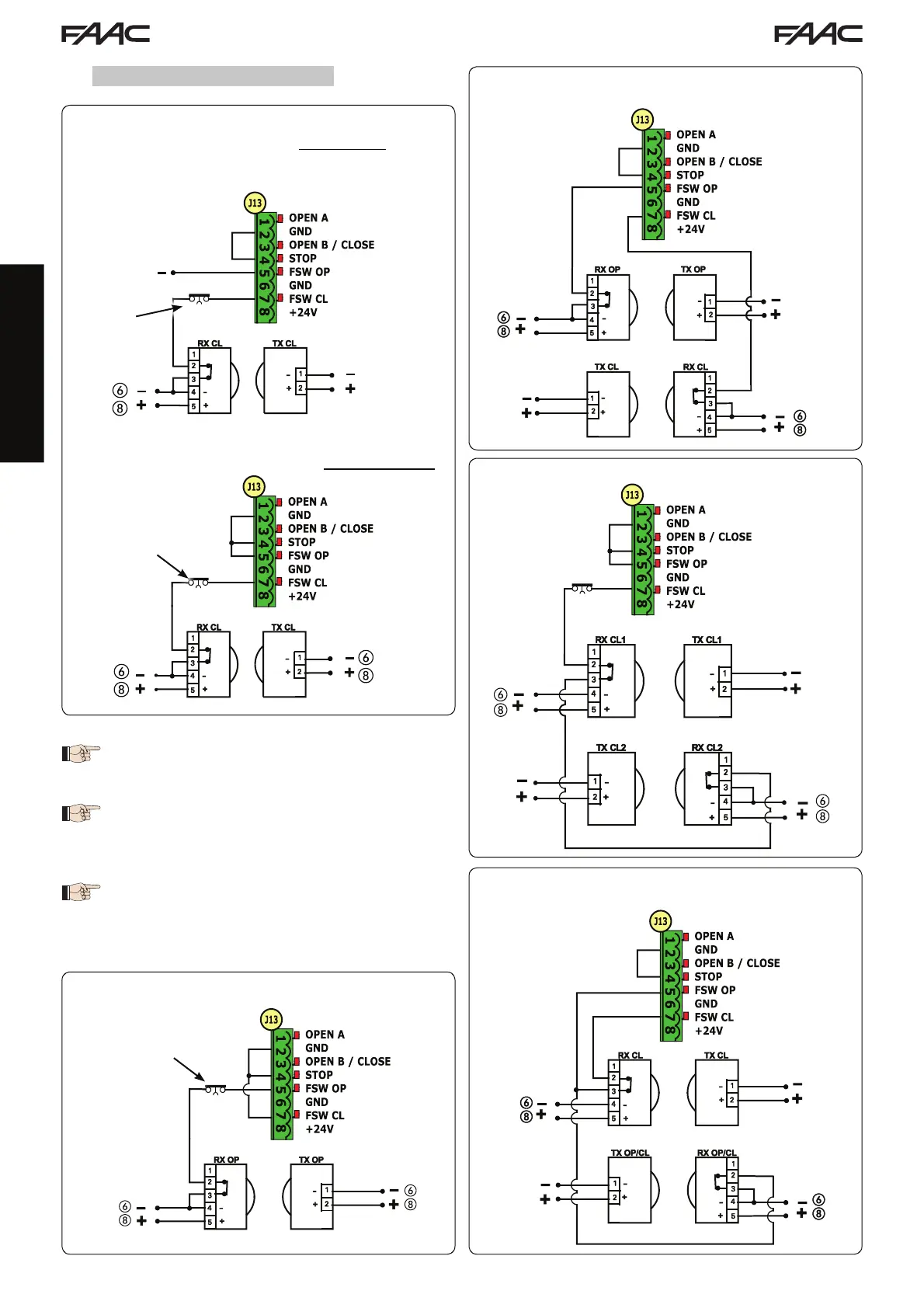

Connection of two pairs of closing photocells
Connection of a pair of closing photocells and a
pair of opening photocells
Connection of a pair of opening photocells
Connection of a pair of closing photocells and a pair of
opening/closing photocells
Other safety
devices
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Connection of 1 pair of closing photocells
with FAIL-SAFE and STOP safety device
deactivated
Connection of 1 pair of closing photocells
with FAIL-SAFE safety device
activated
Other safety
devices
Set in second level of programming
o1 = 01
Other safety
devices
4.2 TRADITIONAL PHOTOCELLS
If the FAIL-SAFE safety device is
not
used, connect the power supply of the
transmitters to terminals 6 and 8 of J13.
If the FAIL-SAFE safety device is used, connect
the power supply of the transmitters to OUT
after setting it as appropriate (see 2nd
level programming and Fig. 6).
If the FAIL-SAFE safety device is used, even the
unused safety inputs must be connected via a
shunt lead to the negative of OUT (see Fig. 6).
