EN
1
11

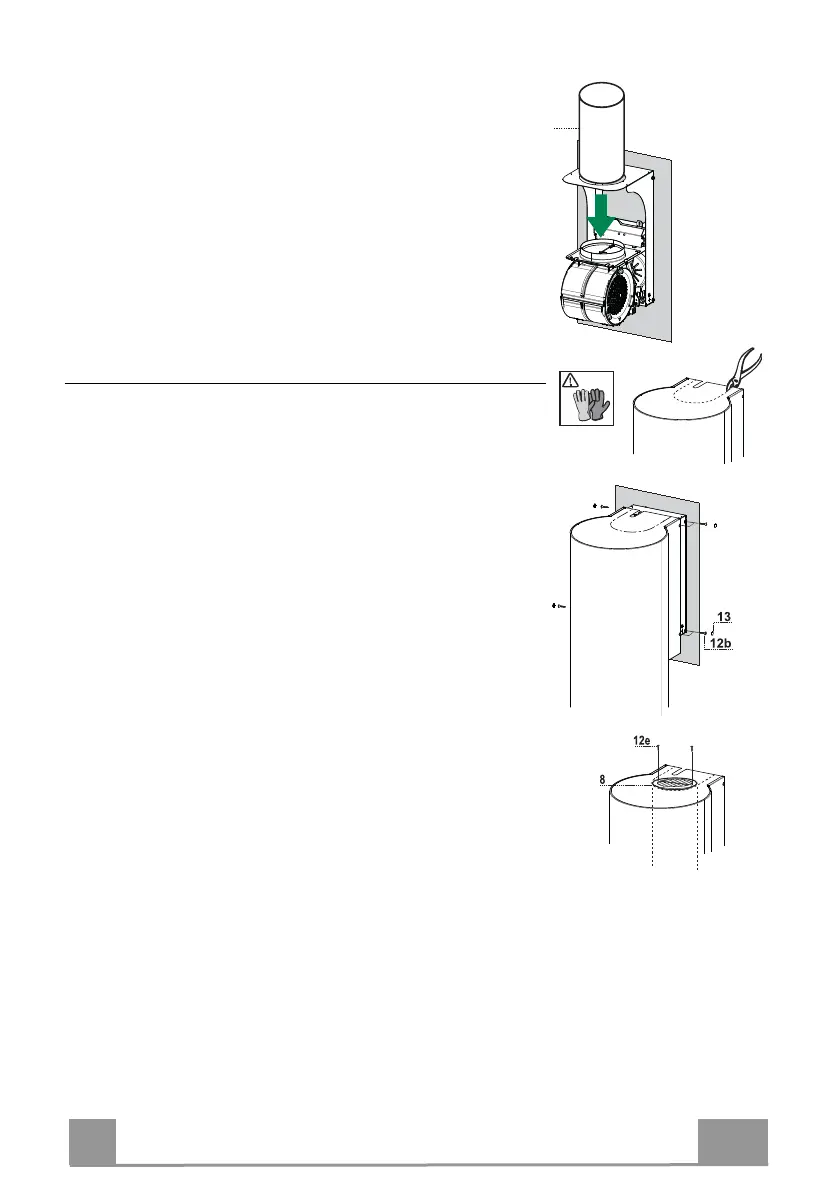

RECIRCULATION VERSION AIR OUTLET
• Insert pvc pipe 7 provided onto the Hood Canopy Outlet.
.
Hood body mounting
Ducting version
• In case the air outlet connection on the upper part of the hood
has been chosen it will be necessary to remove the pre-cut
piece.
• Lean the hood body on the support and fix it laterally with the
4 12b screws.
• Cover the screw seats with the plugs 13 supplied with the
hood.
Recycling version
• Remove the pre-cut piece.
• Lean the hood body on the support and fix it laterally with the
4 12b screws.
• Cover the screw seats with the plugs 13 supplied with the
hood.
• Place the directioned grid 8 on the pipe and make sure that it is
correctly installed.
• Fix the directioned grid 8 with the screws 12e supplied to-
gether with the hood.
• Make sure that the charcoal filters are present.
