Framing the Fireplace
The following instructions are suggested framing
options and are to be used as a guide (2x4 construction
is shown). Please refer to the specications section for
replace dimensions to create custom framing.
!
NOTE: The e-MatriX needs a minimum intake
ventilation of 40 in
2
(258 cm
2
) below the replace.
The intake must allow for air to reach the underside
of the unit.

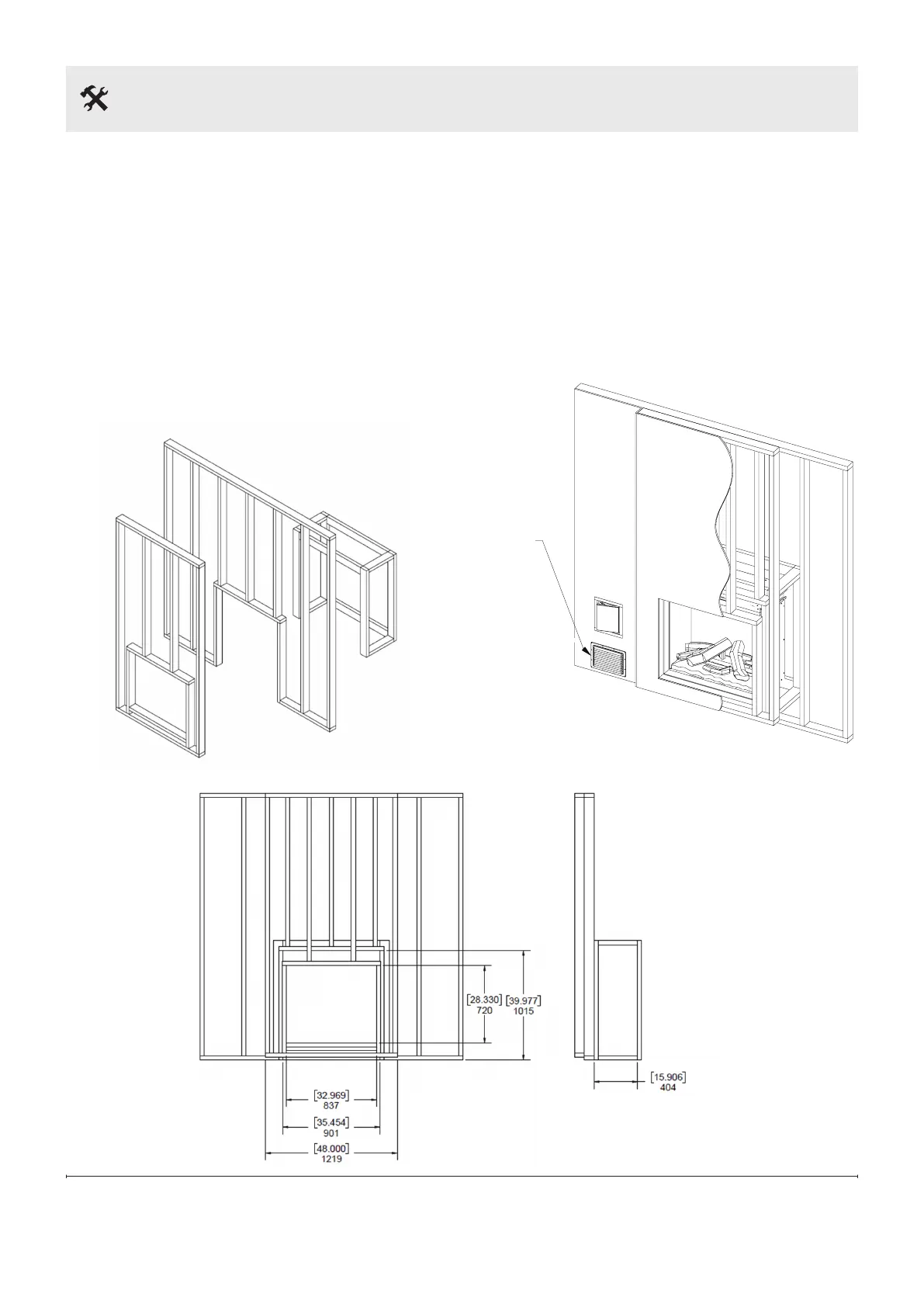

FEF3226L1 – Framing Option 1
Installation
Intake if no gap is
left between floor
and hearth
