Faber Flexa User Manual

13
GB
INSTALLATION

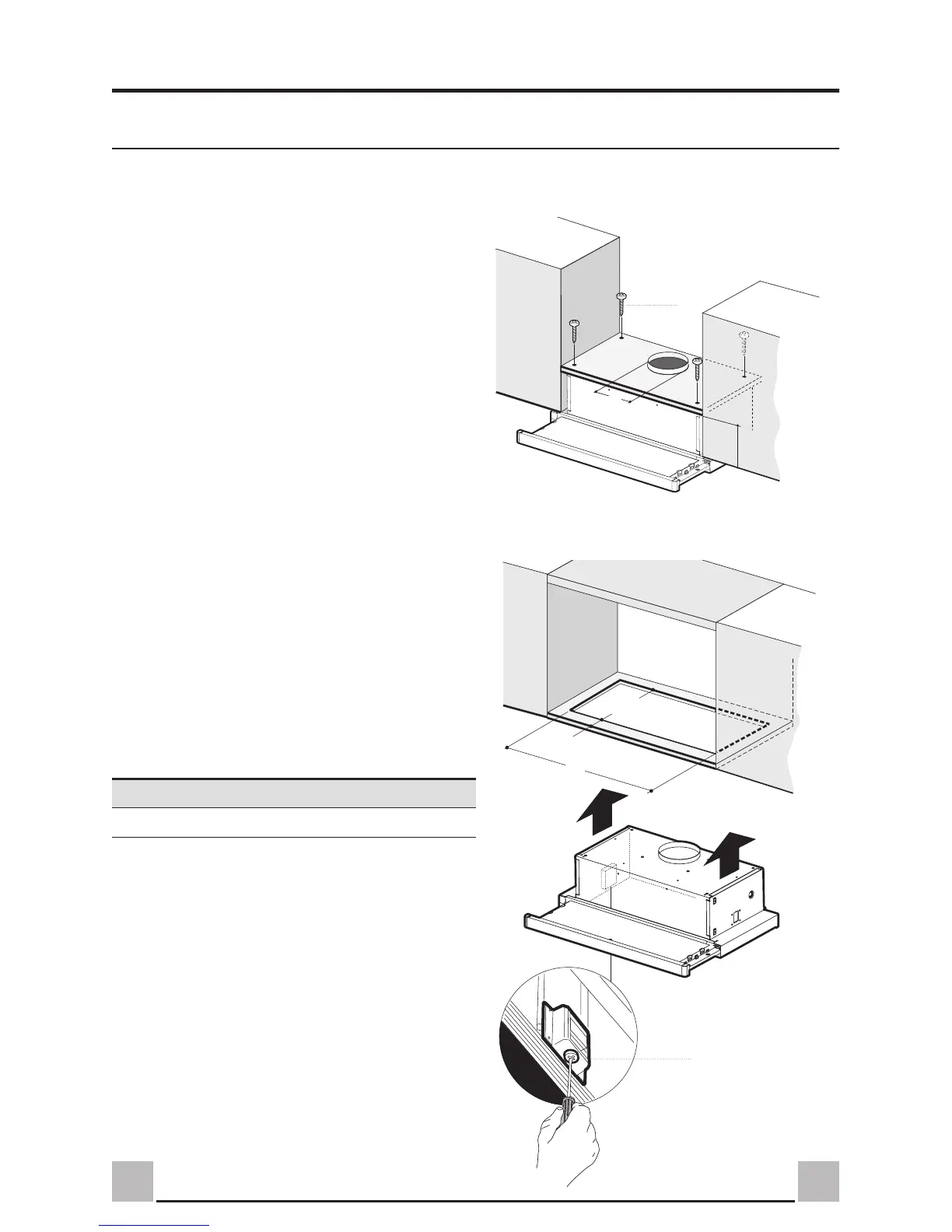

Drilling the Support surface and Fitting the Hood
SCREW FITTING
SNAP-ON FITTING
• The hood support surface must be 135 mm above
the bottom surface of the wall units.
• Drill the support with a ø 4.5 mm drill bit, using
the drilling template provided.
• Cut a hole ø 125 mm in size on the support
surface, using the drilling template provided.
• Fix using the 4 screws 12a (4,2 x 44,4) provided.
• The hood can be installed either directly on the
bottom surface of the wall units (min. 650 mm
above the hob) using snap-on side supports.
• Cut a fitted opening in the bottom surface of the
wall unit, as shown.
• Insert the hood until the side supports snap into
place.
• Lock in position by tightening the screws Vf
from underneath the hood.
Hood Type 45 50 55 60 70 80 90
L1 352 402 452 502 602 702 802
12a
135
125125
15
264
L1
Vf

Faber Flexa Specifications

General

Mounting	Wall-mounted
Number of speeds	3
Number of lamps	2
Number of Motors	1
Lighting	Yes
Material	Stainless steel
Grease filter type	Aluminum
Airflow Capacity	620 m3/h
