CLOSING ELEMENT
Connections
RECIRCULATION VERSION AIR OUTLET
DUCTED VERSION AIR EXHAUST SYSTEM

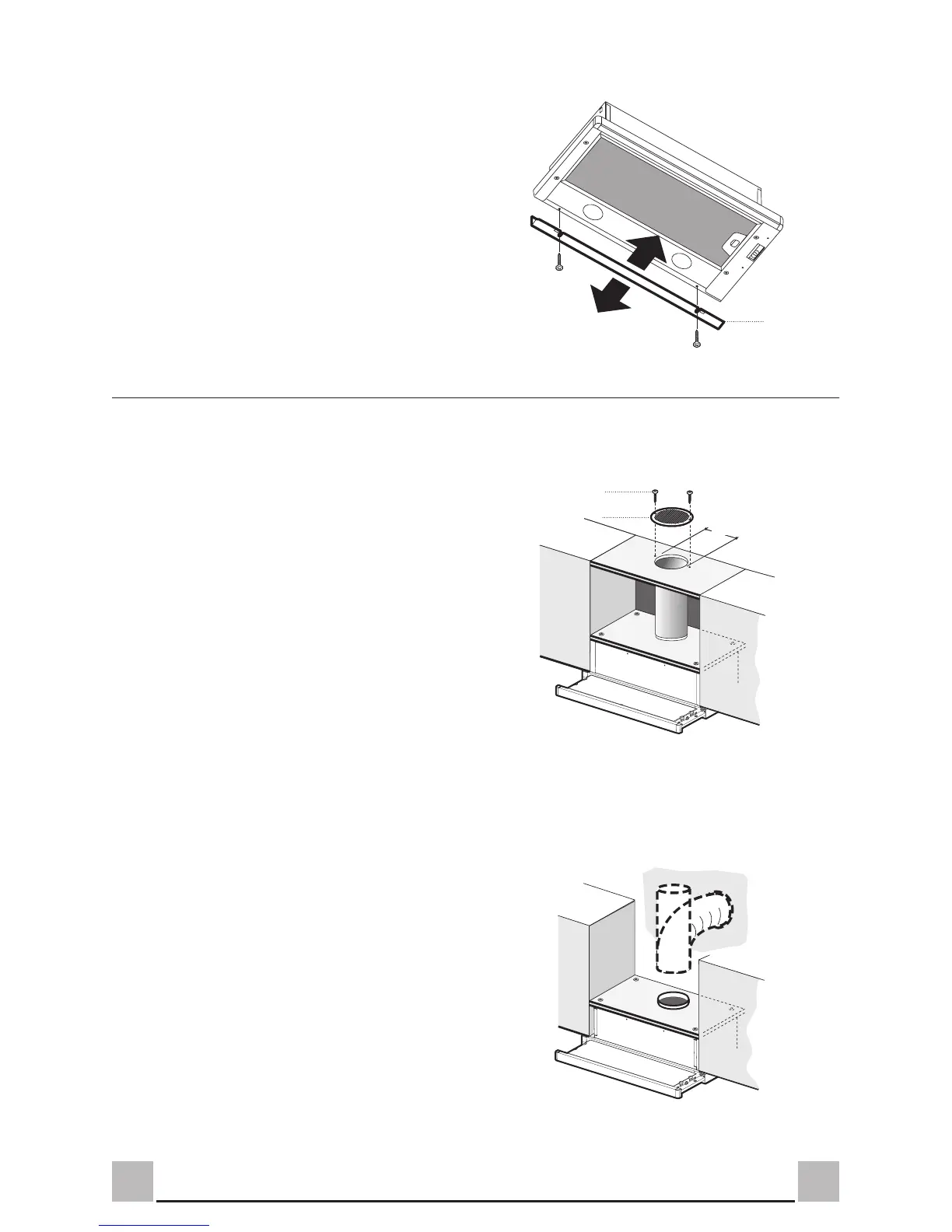

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid
pipe ø 120 mm, the choice of which is left to the installer.
• The space between the edge of the hood and the
rear wall can be closed by applying the element
20 provided, using the screws supplied for this
purpose.
• Cut a hole ø 125 mm in the wall unit over the
hood.
• Connect the hood body outlet to the top part of
the wall unit using a rigid or flexible pipe ø120
mm, to be selected by the installer.
• Fix the pipe in position using sufficient pipe
clamps (not supplied).
• Fix the directional grille 8 on the recirculation air
outlet using the 2 screws 12e (2,9 x 9,5) provided.
• Ensure that the activated charcoal filters have
been inserted.
• Fix the pipe in position using sufficient pipe
clamps (not supplied).
• Remove any activated charcoal filters.
20
12e
8
9
125125
ø 120

Faber Flexa Specifications

General

Mounting	Wall-mounted
Number of speeds	3
Number of lamps	2
Number of Motors	1
Lighting	Yes
Material	Stainless steel
Grease filter type	Aluminum
Airflow Capacity	620 m3/h
