FaceID F910 - Connection Port

Confidential Page 7


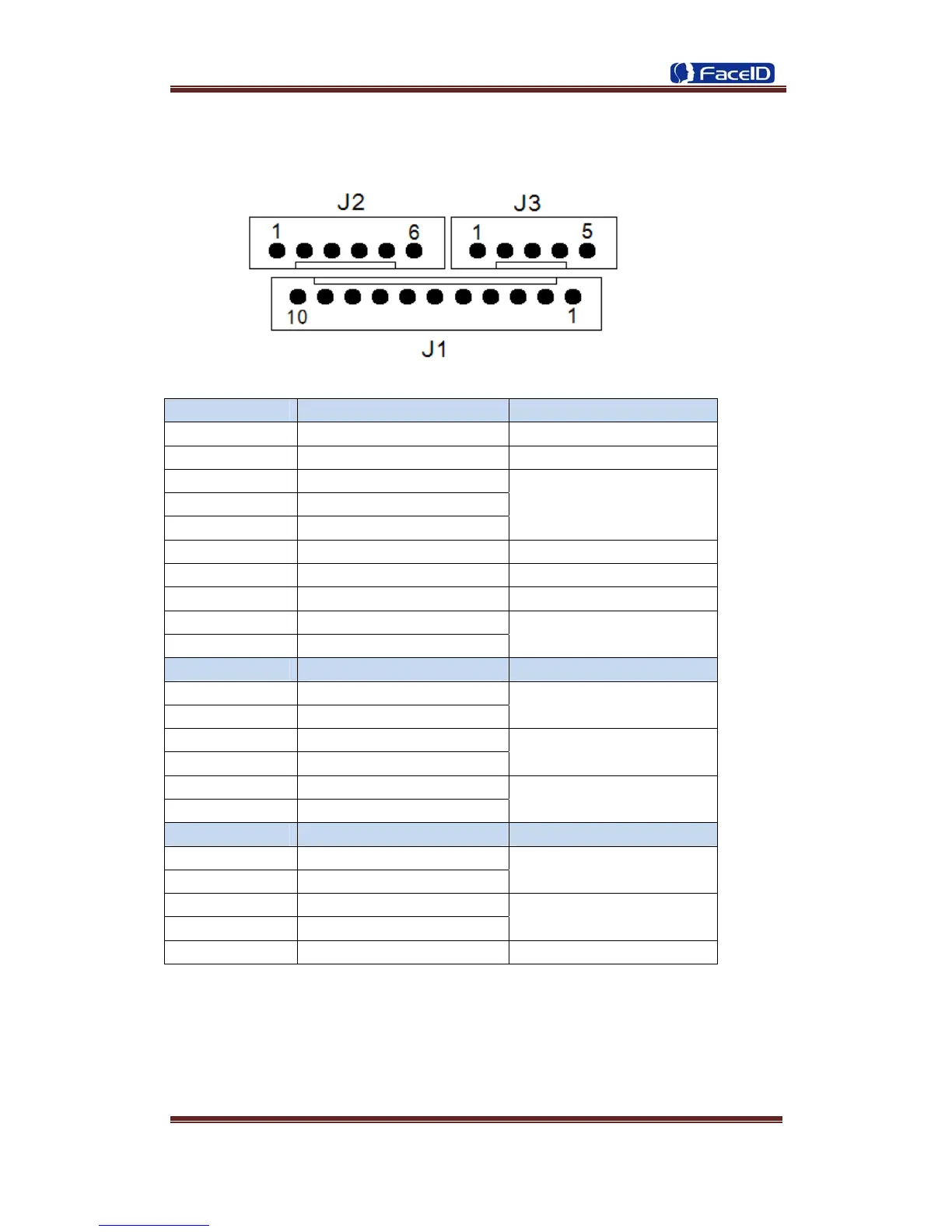

2.3 Connection Port
PIN Definition Feature
J1.1 VC12V 12V Power Supply
J1.2 GND Ground
J1.3 LOCK_NO
J1.4 LOCK_COM
J1.5 LOCK_NC
Door Lock
J1.6 DOORSENSOR Door Magnetic Detection
J1.7 GND Ground
J1.8 DOORSWITCH Door Switch
J1.9 COM 2
J1.10 NO 2
Alarm/Bell Output
PIN Definition Feature
J2.1 WGD0_IN
J2.2 WGD1_IN
Weigand Input(Need
Customized)
J2.3 GND
J2.4 GND
Ground
J2.5 SPK+
J2.6 SPK-
Audio Output
PIN Definition Feature
J3.1 WGD0_OUT
J3.2 WGD1_OUT
Weigand Output
J3.3 GND
J3.4 GND
Ground
J3.5 BEEP Buzzer



