HEATING SYSTEM IN CONVECTION MODE (dry heat)
HEATING SYSTEM IN CONVECTION MODE (dry heat)HEATING SYSTEM IN CONVECTION MODE (dry heat)
HEATING SYSTEM IN CONVECTION MODE (dry heat)
The heating for the CONVECTION mode uses electrical resistors in the electric model and gas burners in the GAS model.
HEATING SYSTEM FOR ELECTRIC OVENS
HEATING SYSTEM FOR ELECTRIC OVENS HEATING SYSTEM FOR ELECTRIC OVENS
HEATING SYSTEM FOR ELECTRIC OVENS
This section indicates the electric resistors used by the RANGE of oven FAMILIES. Attached as follows:
MODEL RESISTORS SAP CODE TOTAL POWER
061 9KW INT 12039496 9 KW
101
9KW INT
9 KW EXT
12039496
12039497
18 KW
102
3X5 KW INT
3X5 KW EXT
12024349
12024359
30 KW
201
2 x ( 9 KW INT )
2 X ( 9 KW EXT )
2 x ( 12039496 )
2 X ( 12039497 )
36 KW
202
3X5 KW INT
3X5 KW EXT
2 x ( 12024349 )
2 X ( 12024359 )
60 KW

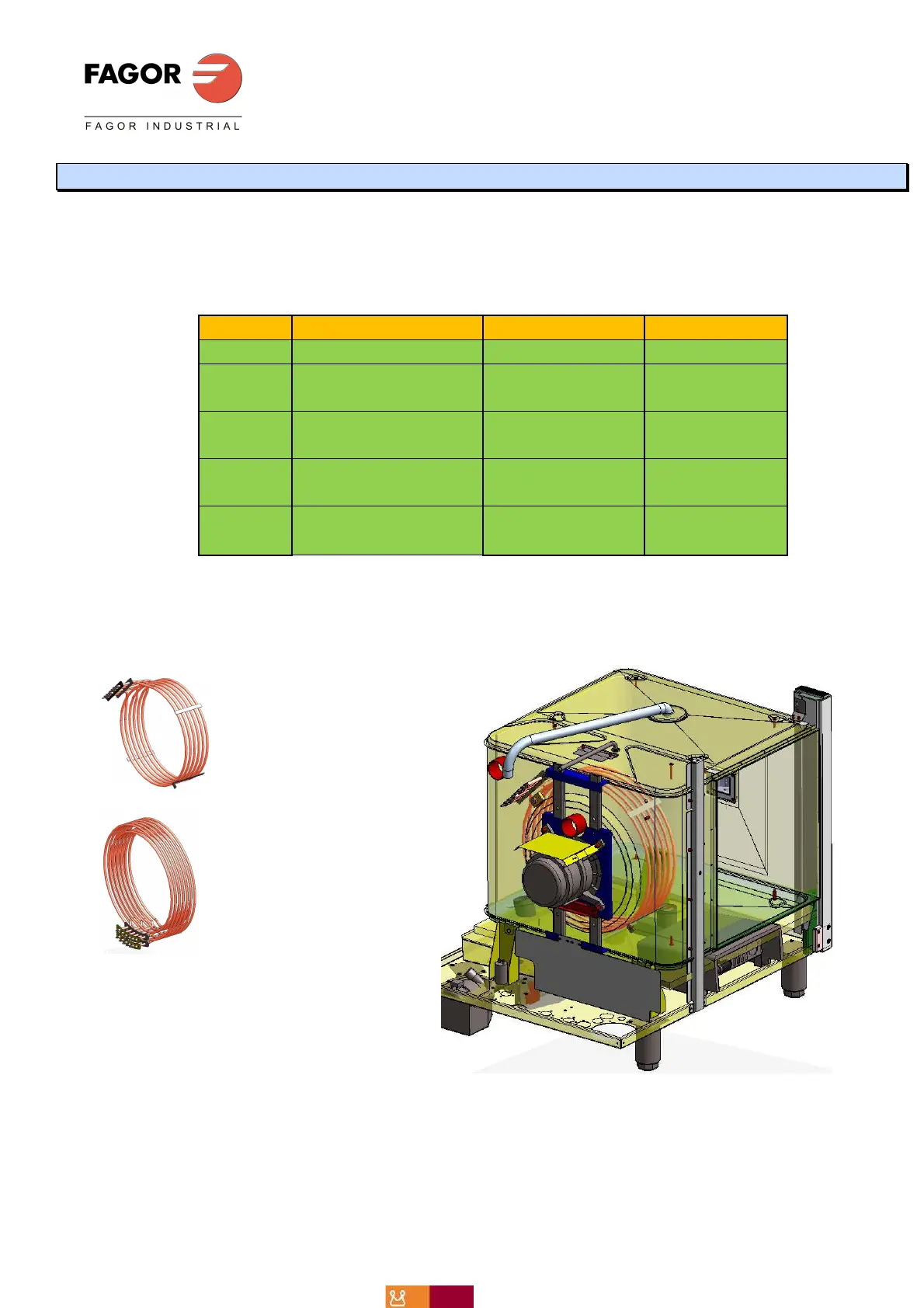

SIZES 061,101 & 102
SIZES 061,101 & 102SIZES 061,101 & 102
SIZES 061,101 & 102:
::
:
061:
061:061:
061:
12039496
101
101101
101
12039496 + 12039497
102
102102
102
12024349 + 12024359
