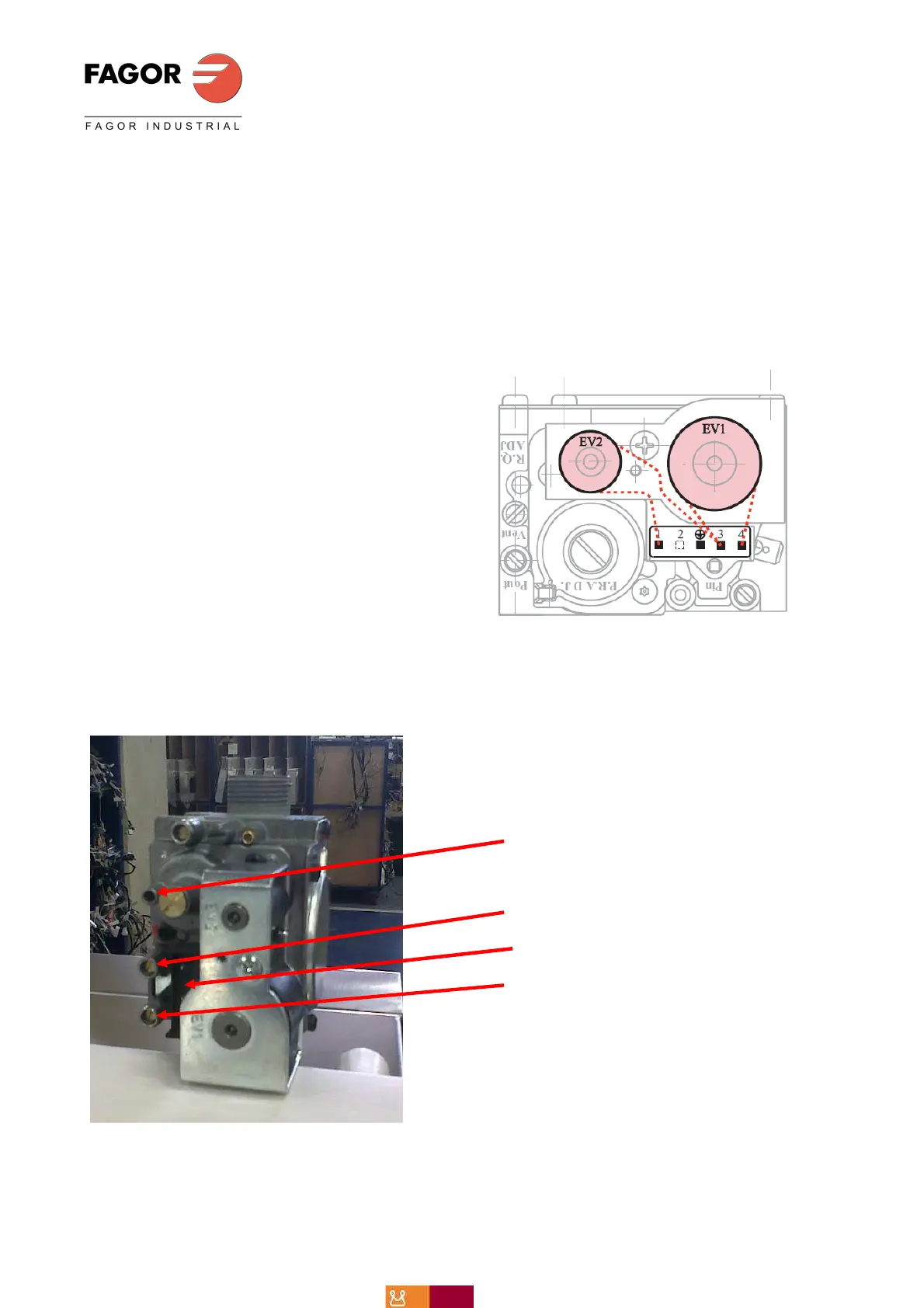

GAS VALVE (SIT) Ref. SAP: 12046364 50Hz, 12046365 60 Hz
GAS VALVE (SIT) Ref. SAP: 12046364 50Hz, 12046365 60 HzGAS VALVE (SIT) Ref. SAP: 12046364 50Hz, 12046365 60 Hz
GAS VALVE (SIT) Ref. SAP: 12046364 50Hz, 12046365 60 Hz
In all models of GAS OVEN, the same GAS valve is used for the CONVECTION burner as for the STEAM burner. The
characteristics of the valve are attached.
• Aluminium body
• Inlet filter
• 2 disconnection solenoid valves EV1 & EV2
• Gas inlet and outlet 3/4 B ISO 228
• Pressure test point diameter 9
ELECTRICAL CONNECTION
ELECTRICAL CONNECTIONELECTRICAL CONNECTION
ELECTRICAL CONNECTION:
::
:
230 V 50 Hz (AC)
• Current mA EV1 : 40 – EV2 : 12
24 V 50 Hz (AC)
• Current mA EV1 : 390 – EV2 : 100
230 V 60 Hz (AC)
• Current mA EV1 : 48 – EV2 : 20
24 V 60 Hz (AC)
• Current mA EV1 : 480 – EV2 : 120
If for any reason it is necessary to change the GAS valve, no adjustments are required.
The possible action to the valve is to measure the input and output pressures, as shown in the attached photo (the values
vary depending on the type of GAS):
Air connection input
Output pressure measurement point
Solenoid valve connection EV1 & EV2
Input pressure measurement point
