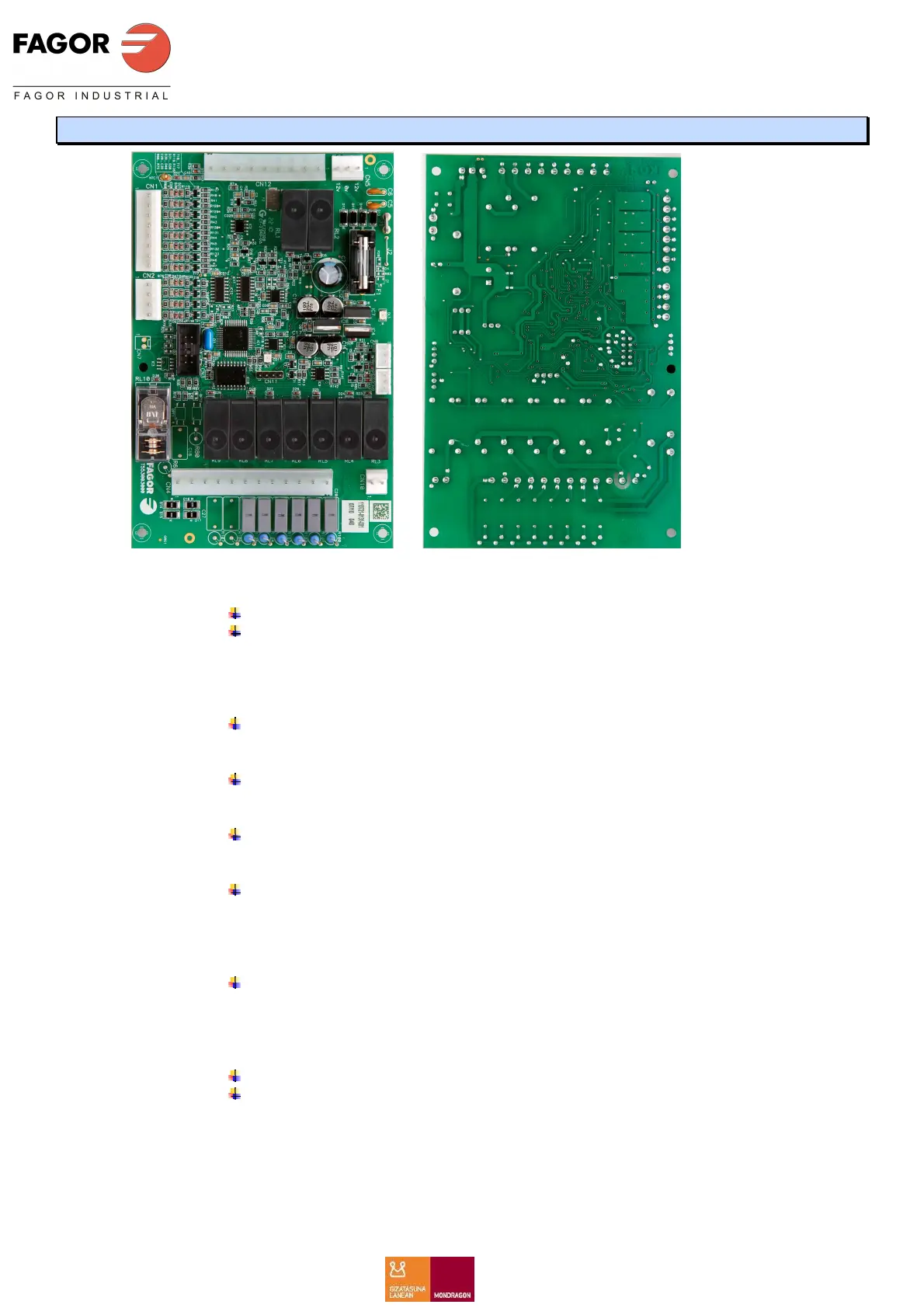

CHAMBER CARD CONTROL
CHAMBER CARD CONTROL CHAMBER CARD CONTROL
CHAMBER CARD CONTROL -
--
- 12046659 (
12046659 (12046659 (
12046659 (all models
all modelsall models
all models)
))
)
⇒
⇒⇒
⇒ Power supply 12–0-12 V. +/- 15% VAC, 50/60 Hz
⇒
⇒⇒
⇒ 2 BMF ports
For recording software versions andlog extraction and HACCP values
For communication with other card.
⇒
⇒⇒
⇒ 1 RS485 port for communication with frequency variator
⇒
⇒⇒
⇒ 1 NTC for measuring electronic plate temperature
⇒
⇒⇒
⇒ 1 0-10 V analogue output for frequency variator speed setting
⇒
⇒⇒
⇒ 10 outputs with 220 V/240 V 50/60 Hz/1ª relay
2 outputs for chamber heating
• CC1
• CC2
2 outputs for frequency variator that control chamber turbine
• Left/Right
• Run/Stop
2 outputs for solenoid valves
• Condensation (VCN)
• Humidifier (VHM)
1 switched output for fluepipe (Ms/Mb) motor 30 W.
⇒
⇒⇒
⇒ 1 main supply relay output (RG).
⇒
⇒⇒
⇒ 1 fan output (VE)
⇒
⇒⇒
⇒ 1 chamber lighting output (LZ)
⇒
⇒⇒
⇒ 10 signal inputs
8 temperature thermocouple inputs (K-type)
• Camera probe (TC)
• Steam outlet probe (TV)
• Steam generator probe (TG)
• Core probe 5 points (TN1, TN2, TN3, TN4, TN5)
1 contact input (open or closed with interlocking) for door (IP)
1 analogue input (0 – 10 V) to read frequency of frequency variator (A.E.)
