Fagor Advance - Water Solenoid Valves; Solenoid Valve Identification and Application

99
16/11/2012
81

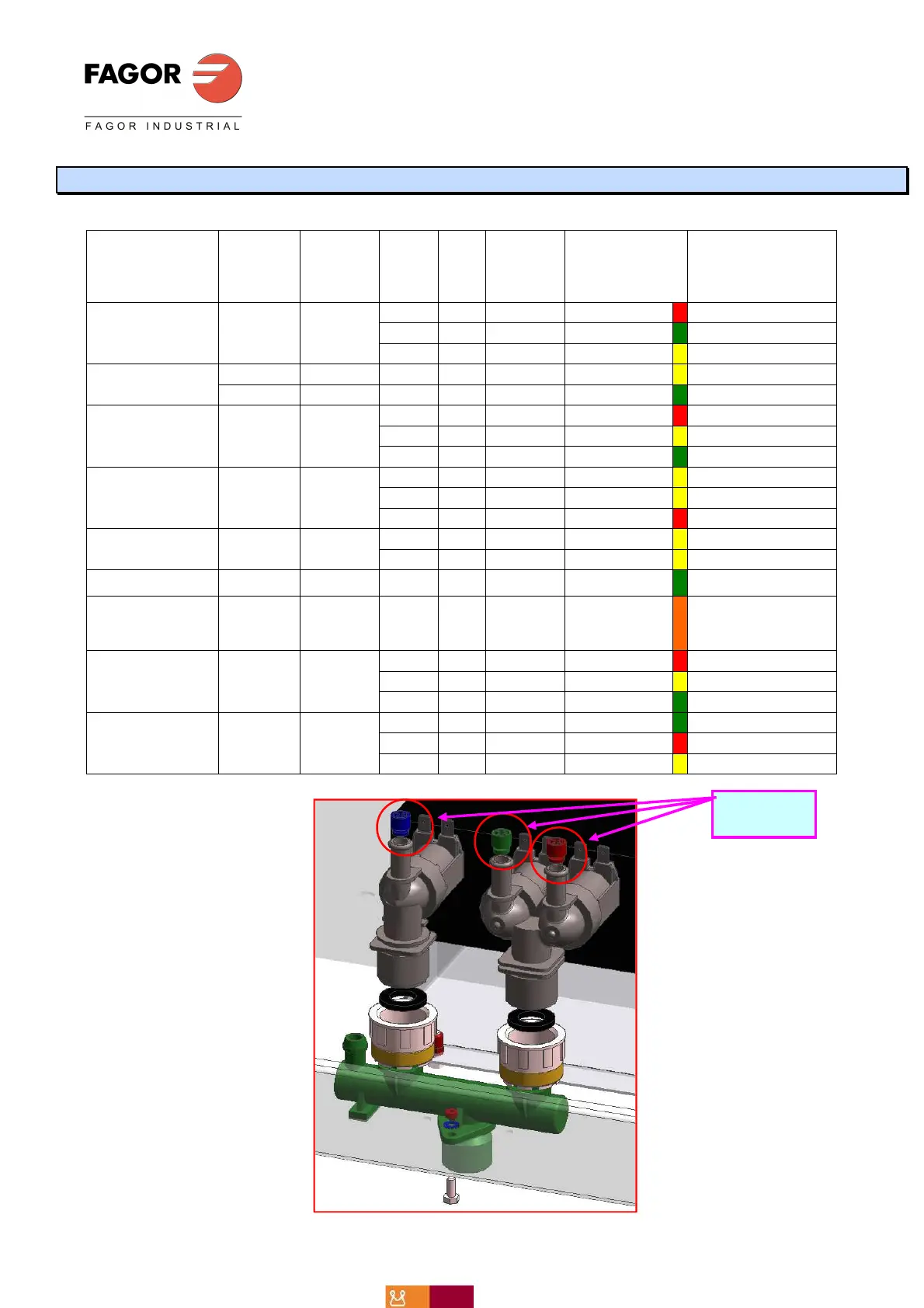

WATER SOLENOID VALVES
WATER SOLENOID VALVESWATER SOLENOID VALVES
WATER SOLENOID VALVES
APPLIANCE INSTALL:
REF.
SAP
Reg. CTD. REF.SAP COLOUR OBSERVATIONS
AE / A
PE
061 /101/ 201
TRIPLE 12023921
8 l. 1 12024045 RED BOILER
0.25 l 1 12024509 GREEN INJECTOR
1l 1 12025263 YELLOW CONDENSATION
ACE
061/101/201/102
SIMPLE 12025161 1l 1 12025263 YELLOW CONDENSATION
SINPLE 12025161 0.25 l 1 12024509 GREEN INJECTOR
AE / AG
10-21
TRIPLE 12023921
8 l. 1 12024045 RED BOILER
1l 1 12025263 YELLOW CONDENSATION
0.25 l 1 12024509 GREEN INJECTOR
AE 202
TRIPLE 12023921
1l 1 12025263 YELLOW INJECTOR
1l 1 12025263 YELLOW CONDENSATION
8 l. 1 12024045 RED BOILER
ACE 202
DOUBLE 12023794
1l 1 12025263 YELLOW CONDENSATION
1l 1 12025263 YELLOW INJECTOR
ACG 061 / 101
SINPLE 12025161 0.25 l 1 12024509 GREEN INJECTOR
ACG
102/201/202
SINPLE 12025161 0.5 l 1 12008692 ORANGE INJECTOR
AG 101 / 201
TRIPLE 12023921
8 l. 1 12024045 RED BOILER
1l 1 12025263 YELLOW CONDENSATION
0.25 l 1 12024509 GREEN INJECTOR
AG 202
TRIPLE 12023921
0.25 l 1 12024509 GREEN INJECTOR
8 l. 1 12024045 RED BOILER
1l 1 12025263 YELLOW CONDENSATION
Flow
Reducers
