HEATING
HEATING HEATING
HEATING SYSTEM IN STEAM MODE (moist heat)
SYSTEM IN STEAM MODE (moist heat)SYSTEM IN STEAM MODE (moist heat)
SYSTEM IN STEAM MODE (moist heat)
The STEAM heating mode uses resistors in the ELECTRIC MODEL and gas burners in the GAS MODEL.
First determine the capacities of the STEAM GENERATORS
STEAM GENERATORSSTEAM GENERATORS
STEAM GENERATORS by model:

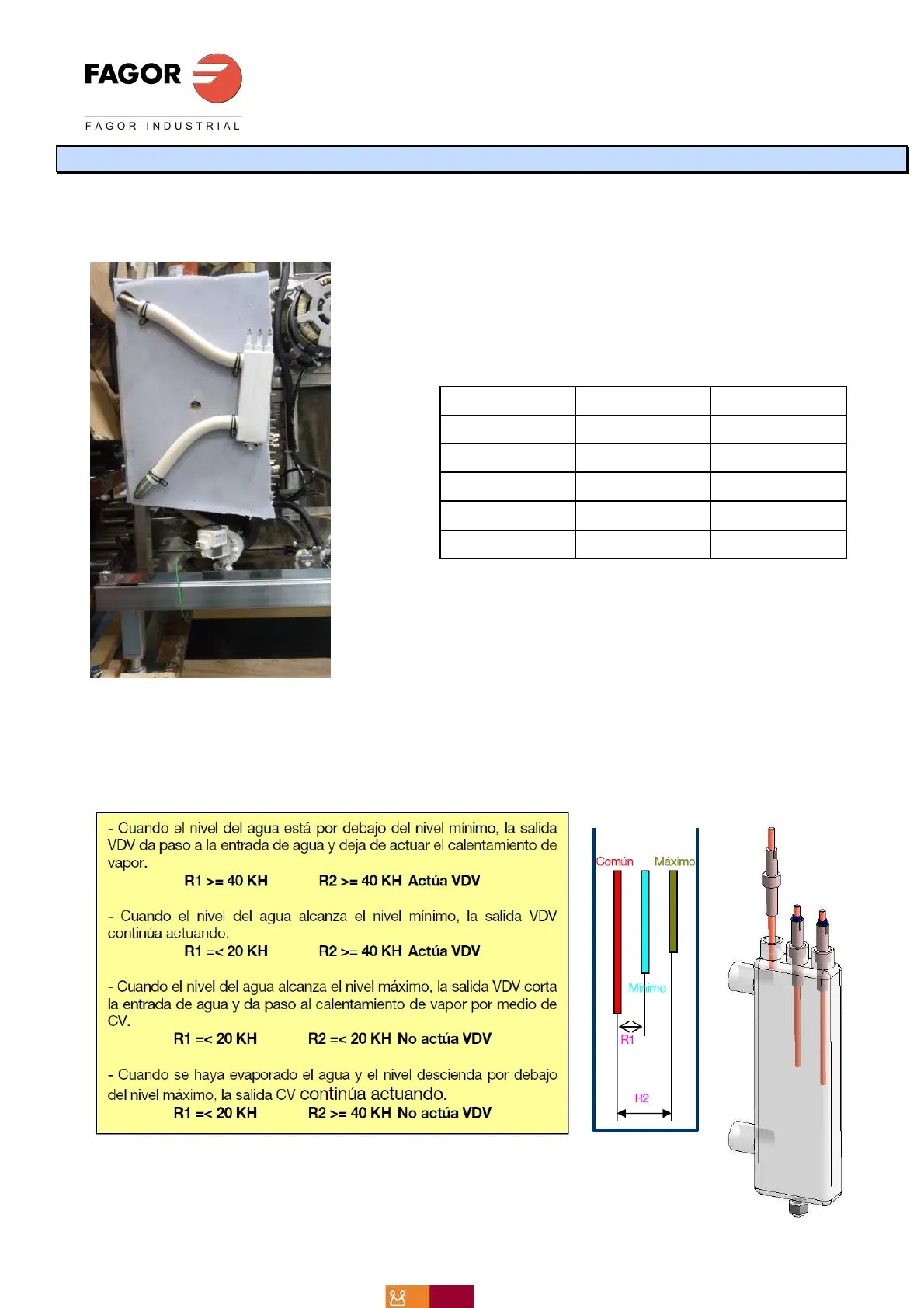

The following modification should also be considered: NEW DESIGN of the STEAM GENERATOR
NEW DESIGN of the STEAM GENERATORNEW DESIGN of the STEAM GENERATOR
NEW DESIGN of the STEAM GENERATOR with the base inclined as
shown in the top photo. This change has helped to improve the cleaning of the BOILER.
The element common to the steam generator for both the electric and gas models is the LEVEL BOTTLE
LEVEL BOTTLELEVEL BOTTLE
LEVEL BOTTLE. This is the same in
both models, as described below:
HEATING SYSTEM STEAM GENERATOR ELECTRIC OVENS
HEATING SYSTEM STEAM GENERATOR ELECTRIC OVENSHEATING SYSTEM STEAM GENERATOR ELECTRIC OVENS
HEATING SYSTEM STEAM GENERATOR ELECTRIC OVENS
AE-APE AG-APG
061
3.25 litres 7.3 litres
101
5.5 litres 7.3 litres
201
7 litres 12.3 litres
102
7 litres 12.3 litres
202
11.7 litres 15.3 litres
