Fagor Advance - Steam Generator Temperature Probe; Steam Generator Probe Location; Steam Temperature Probe Table

99
16/11/2012
60
2.
2.2.
2.-
--
- Temperature Probe STEAM
Probe STEAMProbe STEAM
Probe STEAM GENERATOR
GENERATORGENERATOR

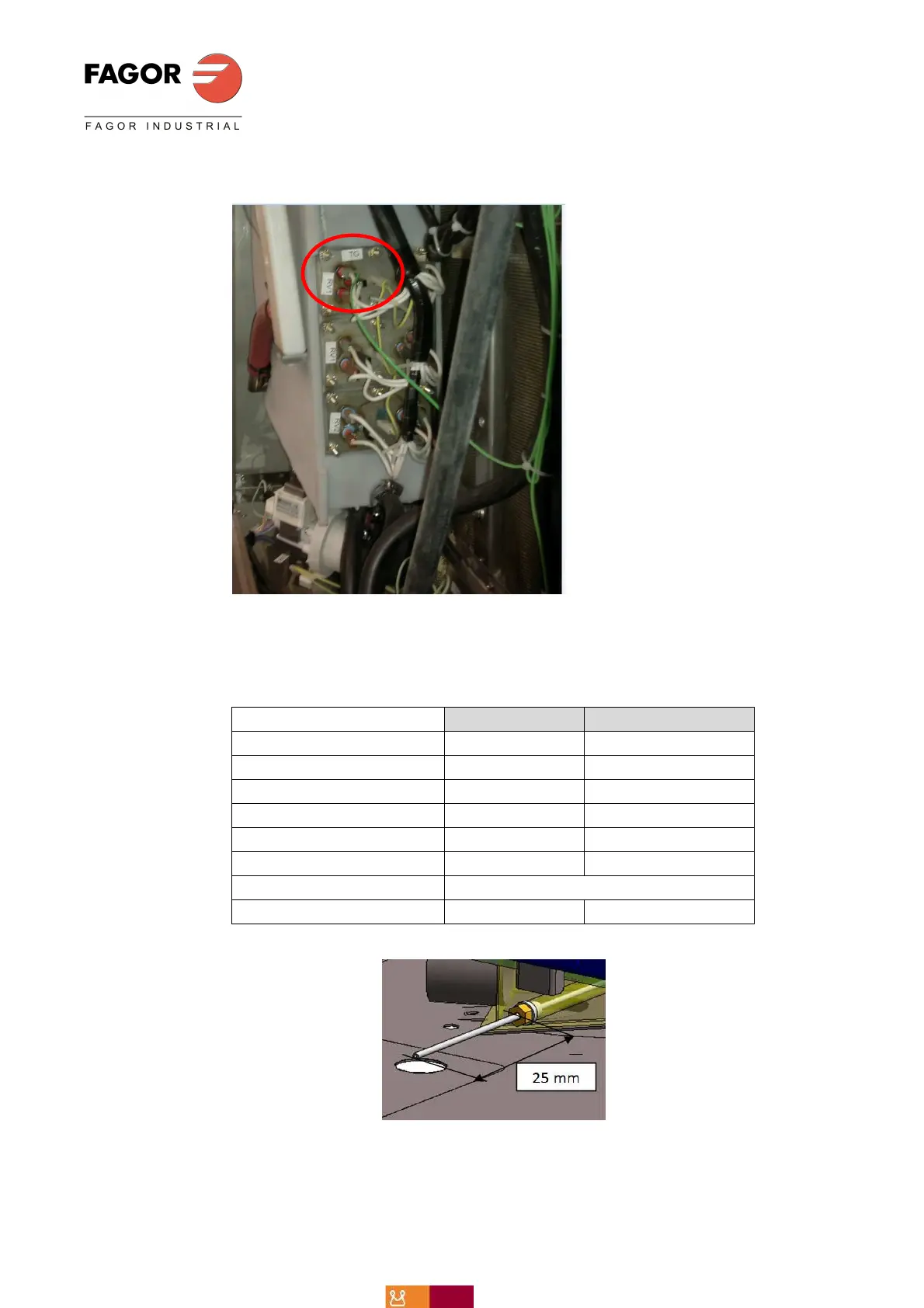

GENERATOR. See location on attached figure:
3.
3.3.
3.-
--
- STEAM temperature probe
STEAM temperature probeSTEAM temperature probe
STEAM temperature probe
This probe is located in the DRAINAGE BOX
DRAINAGE BOXDRAINAGE BOX
DRAINAGE BOX. The assembly distances vary considerably with the model. Please see
attached table:
SAP reference Distance to bushing
11 061 -101 12041634 125 mm
ADVANCE PLUS 061-101 12044609 25 mm
CONCEPT-ADVANCE 102 12041634 120 mm
ADVANCE PLUS 102 12039678 35 mm
CONCEPT-ADVANCE 202 12039678 50 mm
ADVANCE PLUS 202 12039678 10 mm
ADVANCE PLUS 201 12044609 25 mm
CONCEPT-ADVANCE 201
12041634
25 mm
