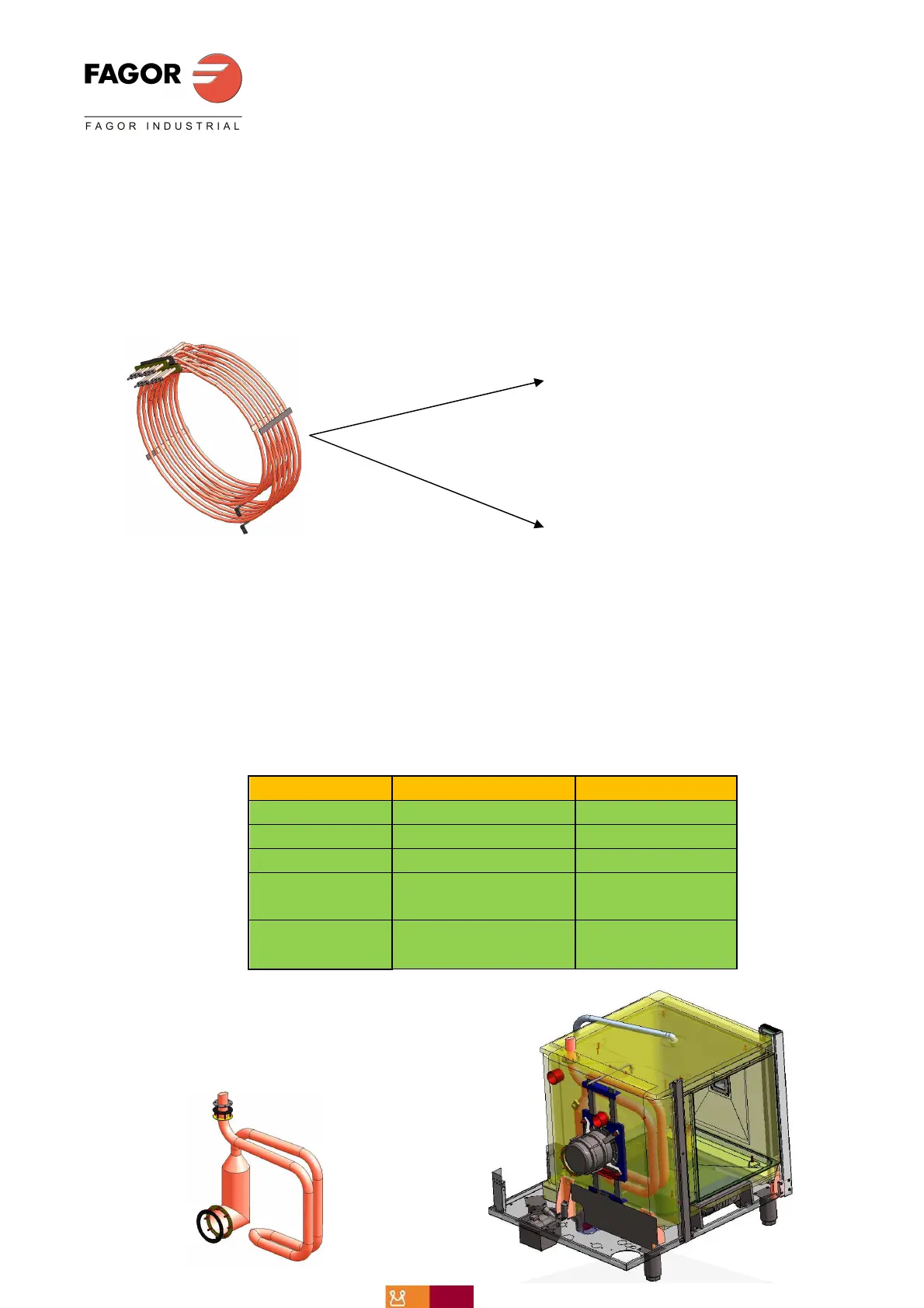

HEATING SYSTEM FOR GAS OVENS
HEATING SYSTEM FOR GAS OVENS HEATING SYSTEM FOR GAS OVENS
HEATING SYSTEM FOR GAS OVENS
This section indicates which of the heat exchangers are used by RANGE of oven FAMILIES and describes the gas burner.
Attached as follows:
MODEL
HEAT EXCHANGERS
SAP CODE
ACG/AG/APG 061
PLEASE SEE ATTACHED PLAN
12039650
ACG/AG/APG 101
PLEASE SEE ATTACHED PLAN
12039552
ACG/AG/APG 102
PLEASE SEE ATTACHED PLAN
12039441
ACG/AG/APG 201
PLEASE SEE ATTACHED PLAN
12039473 UPPER
12040734 LOWER
ACG/AG/APG 202
PLEASE SEE ATTACHED PLAN
12039395 UPPER
12039397 LOWER
HEAT EXCHANGER FOR ACG/AG/APG OVEN
HEAT EXCHANGER FOR ACG/AG/APG OVENHEAT EXCHANGER FOR ACG/AG/APG OVEN
HEAT EXCHANGER FOR ACG/AG/APG OVEN 061:
061:061:
061:
SAP
SAPSAP
SAP CODE
CODECODE
CODE: 12039650
