Fagor Advance - Blower and Mixer Components; Blower Types and Specifications; Mixer Function and Washer Requirement

99
16/11/2012
70
4.
4.4.
4.-
--
- BLOWER
BLOWERBLOWER
BLOWER
Two types of blower made by EBMPAPST are used.
1.
1.1.
1. Blower NRG 118 55 kw
Blower NRG 118 55 kwBlower NRG 118 55 kw
Blower NRG 118 55 kw (CONVECTION burner all models + STEAM GENERATOR burner except model
202 ) Ref SAP:
Ref SAP: Ref SAP:
Ref SAP: 12044607.
12044607.12044607.
12044607.

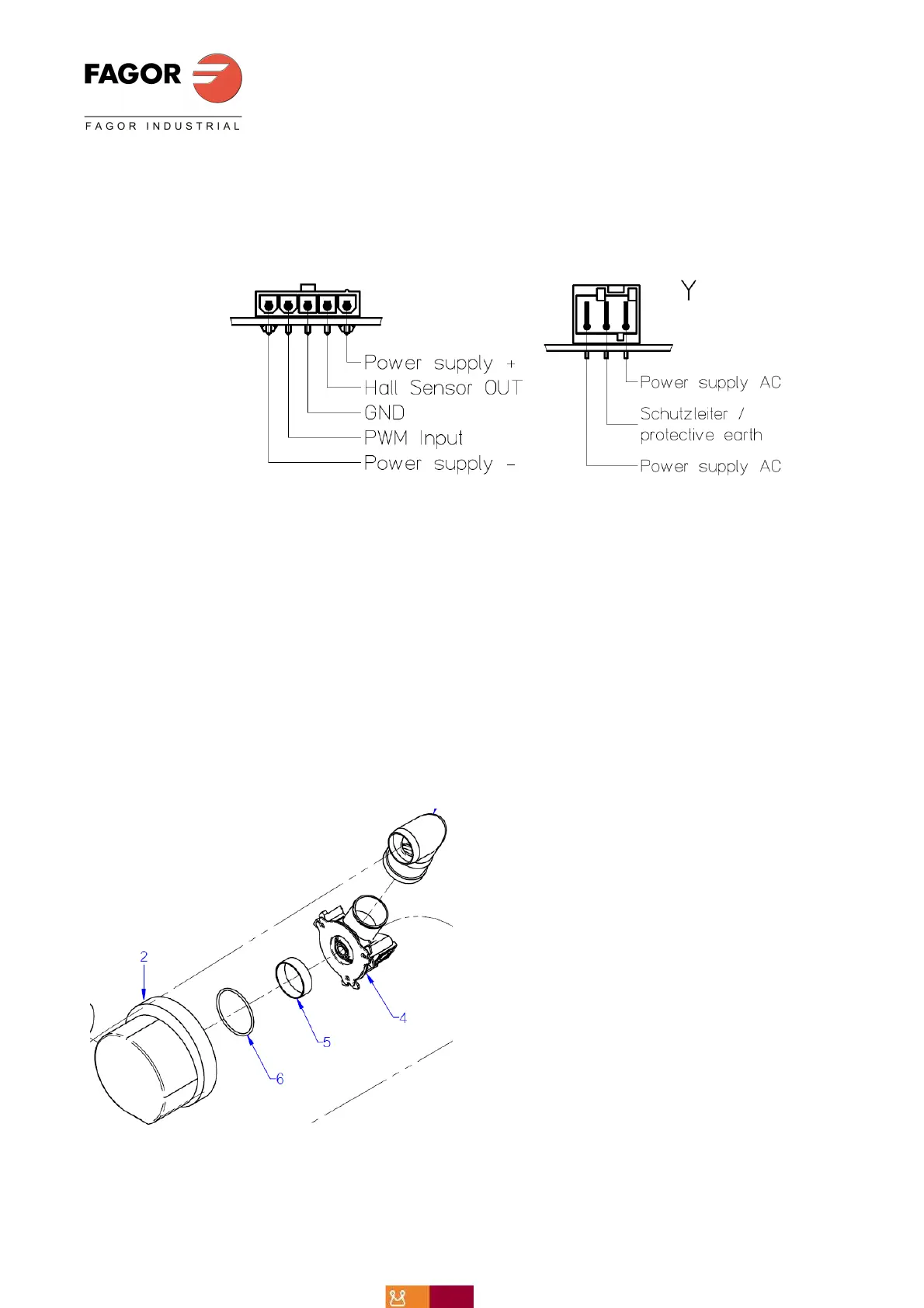

Maniobra Potencia
Maniobra PotenciaManiobra Potencia
Maniobra Potencia
• Power supply: 24 V DC
• PWD setting: 24 V DC, 256 steps
• Speed reading < 10000 rpm
2.
2.2.
2. Blower RG 148
Blower RG 148Blower RG 148
Blower RG 148 (Only for the STEAM GENERATOR 202 burner12039373
1203937312039373
12039373
• Power supply: 24 V DC
• PWD setting: 24 V DC, 256 steps
• Speed reading < 10000 rpm
5.
5.5.
5.-
--
- MIXER
MIXER MIXER
MIXER
This mixer is designed to maximise the use of ambient air thanks to its AXIAL and LATERAL inlets.
Between the blower and the mixer, for each burner type a
specific VENTURI washer is required, ITEM No 5.
Details of these are given on the next page:
