Fagor Advance - Gas Steam Generator Burner Sizes; Burner Sizes by Steam Generator Volume

99
16/11/2012
77
Depending on the volume of the STEAM GENERATOR,
different “sizes“ of burners are used, as listed below:
AG/APG 061-101: Ref SAP BURNER: 12039583
AG/APG 102 : Ref SAP BURNER: 12044278
AG/APG 201 : Ref SAP BURNER: 12044424
AG/APG 202 : Ref SAP BURNER: 12039427

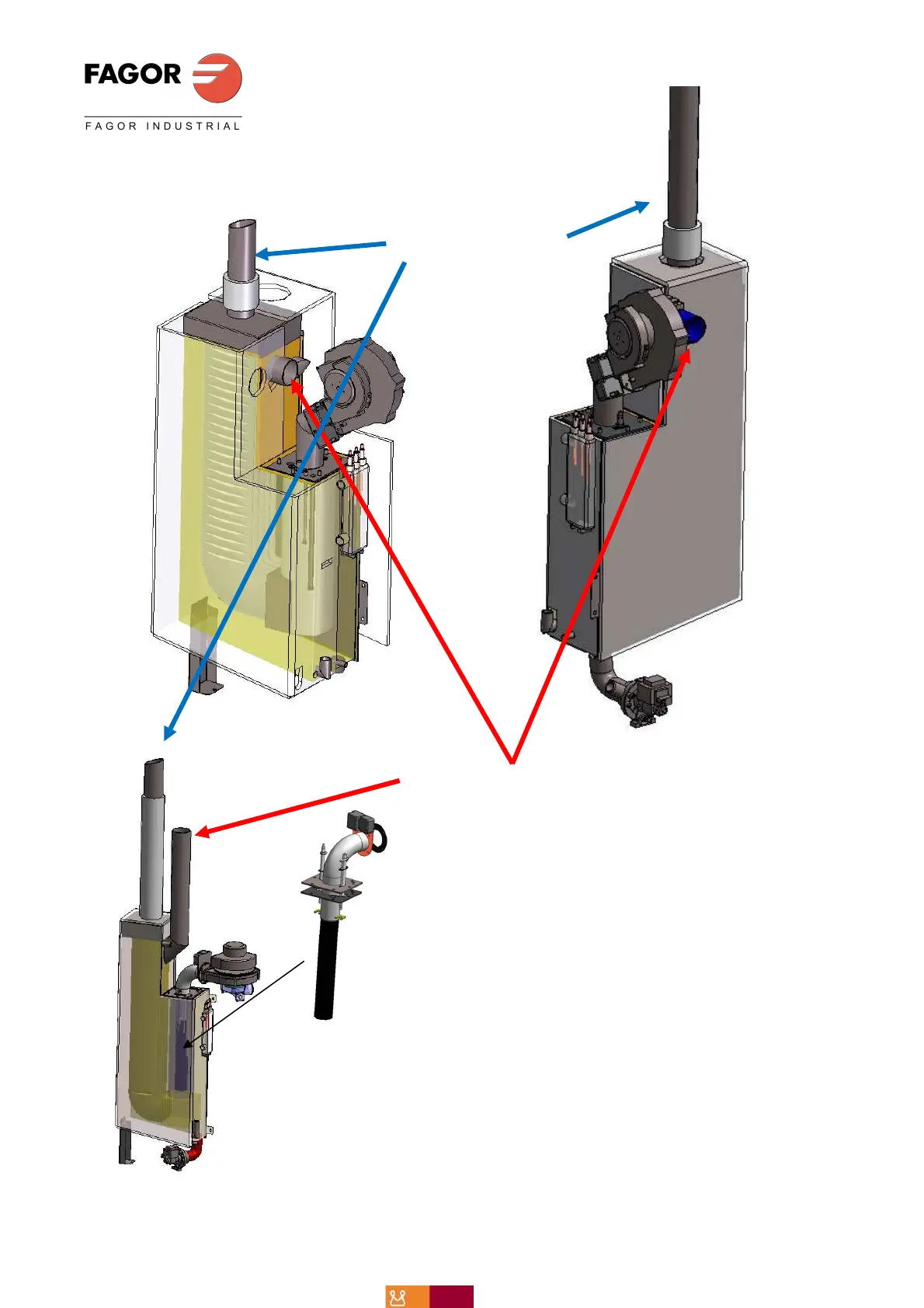

AG/APG 102
AG/APG 202
AG/APG 201
EXTERIOR FLUEPIPE
CHAMBER STEAM PIPE
