Fagor Advance - Wash System Operation (APE;APG); Wash Process Sequence

99
16/11/2012
88

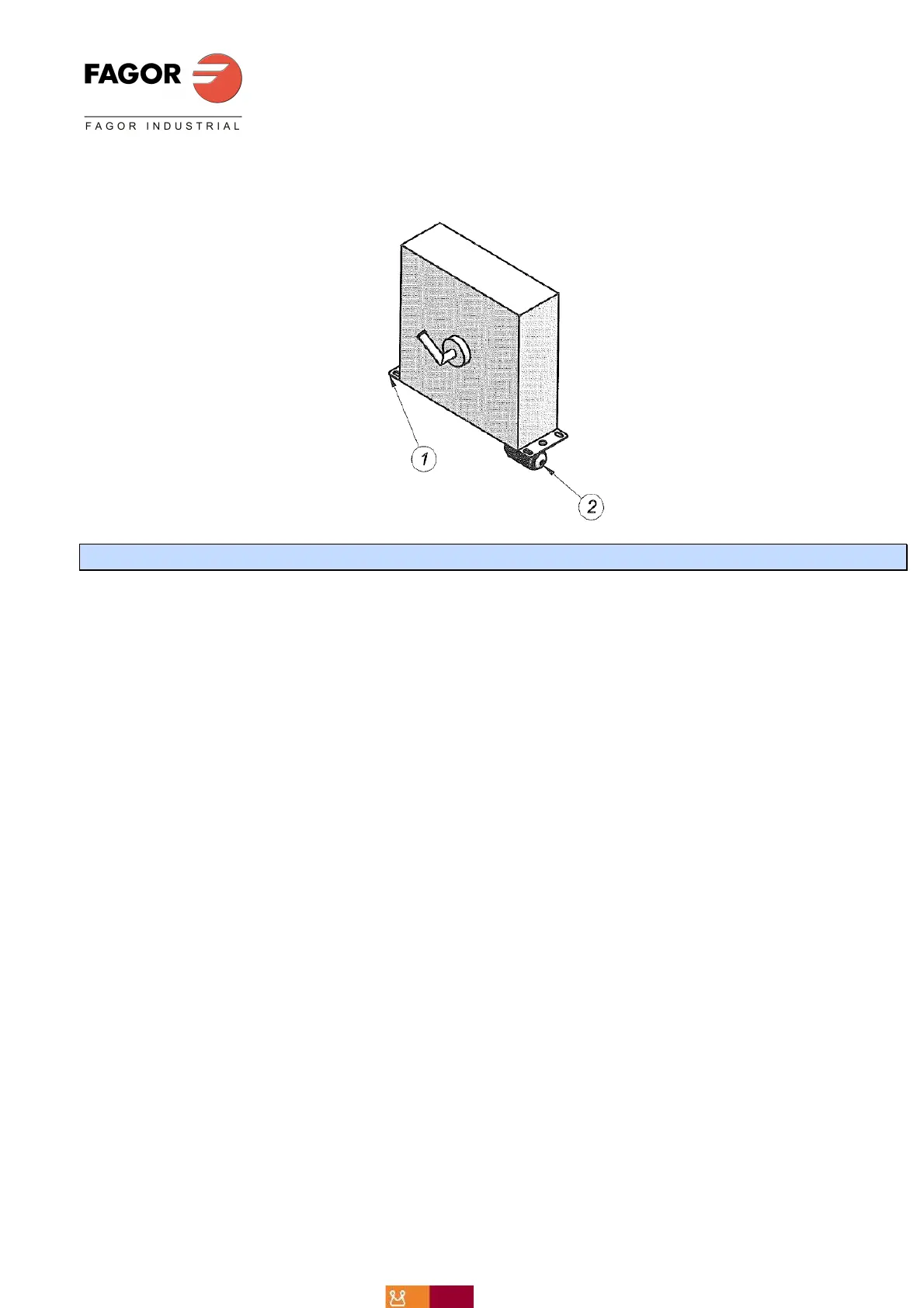

To replace components individually, the part references should be attached:
1.
1.1.
1.-
--
- SHOWER BODY: 12039158
SHOWER BODY: 12039158SHOWER BODY: 12039158
SHOWER BODY: 12039158
2.
2.2.
2.-
--
- SHOWER HANDLE: 12010475
SHOWER HANDLE: 12010475SHOWER HANDLE: 12010475
SHOWER HANDLE: 12010475
APE / APG WASH SYSTEM
APE / APG WASH SYSTEMAPE / APG WASH SYSTEM
APE / APG WASH SYSTEM
This section describes how the wash process works and the components involved:
When the required wash programme has been selected, check that the IP is closed and that the TC temperature probe
indicates less than 65ºC, with the following warning if this is not the case: “HIGH TEMP OVEN COOLING
HIGH TEMP OVEN COOLINGHIGH TEMP OVEN COOLING
HIGH TEMP OVEN COOLING”. In this case,
cooling is automatic.
When the 2 conditions shown have been met, the selected wash programme starts, following the sequence below:
1.
1.1.
1. LZ and Ms/Mb operate. The display must indicate the chamber temperature and the time left to complete the selected
programme.
2.
2.2.
2. The fluepipe behaves as follows:
• Electric oven: Fluepipe open
• Gas oven: Fluepipe open
3.
3.3.
3. VAC operates for 3 seconds, the level of the boiler should drop below the minimum level. If the low level is not
reached, after 5” re-operate the VAC for a further 3” and continue so. If after 1 minute the minimum level is not
reached, the corresponding error is displayed. (See Errors section
See Errors sectionSee Errors section
See Errors section).
4.
4.4.
4. Operate VDV until maximum level is reached. If this is not reached within 7 minutes, the corresponding error should
be displayed. (See Errors section
See Errors sectionSee Errors section
See Errors section).
