Fagor DDS AXD/SPD 2.50 User Manual

Drives
3.
180
Ref.1912
DDS
HARDWARE
· 104 ·

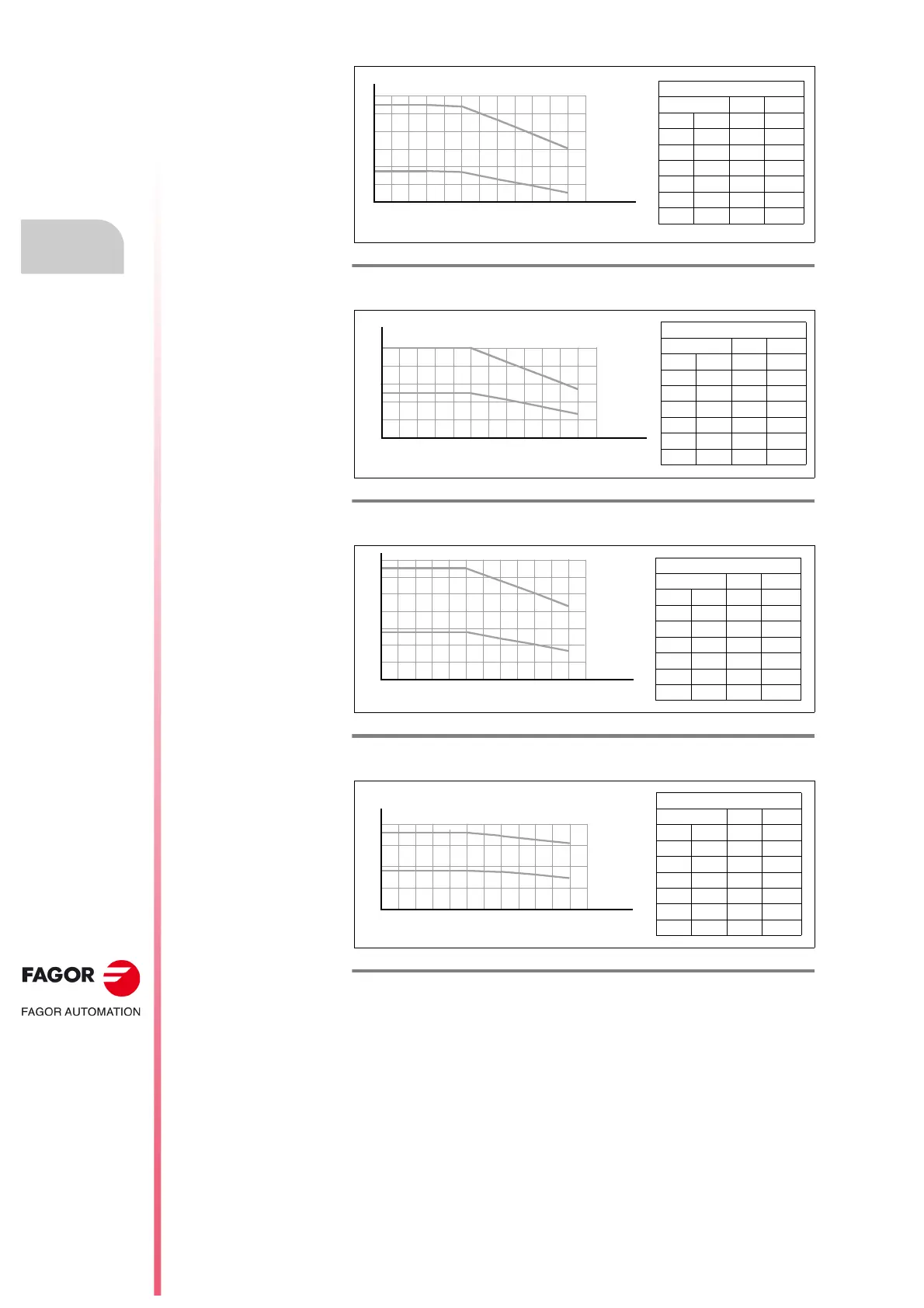

F. H3/21
Current derating on ·AXD|MMC 2.75· drives for fc = 8 kHz.
F. H3/22
Current derating on ·AXD|MMC 3.100· drives for fc = 8 kHz.
F. H3/23
Current derating on ·AXD|MMC 3.150· drives for fc = 8 kHz.
F. H3/24
Current derating on ·MMC 3.200· drives for fc = 8 kHz.
AXD|MMC 2.75
T ambient In Imax.
° C ° F A A
35 95 37.5 75.0
40 104 37.5 75.0
45 113 37.1 74.2
50 122 33.3 66.5
55 131 29.3 58.6
60 140 25.2 50.4
35 40 55 60
40
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
50
In
60
Imax
70
30
80
35 40 55 60
40
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
60
In
80
Imax
20
100
0
AXD|MMC 3.100
T ambient In Imax.
° C ° F A A
35 95 50.0 100.0
40 104 50.0 100.0
45 113 50.0 100.0
50 122 42.7 85.4
55 131 35.2 70.3
60 140 27.3 54.5
AXD|MMC 3.150
T ambient In Imax.
° C ° F A A
35 95 75.0 150.0
40 104 75.0 150.0
45 113 75.0 150.0
50 122 67.9 135.6
55 131 60.6 121.2
60 140 53.1 106.2
35 40 55 60
60
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
80
In
100
Imax
40
120
0
140
160
35 40 55 60
100
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
In
150
50
200
Imax
MMC 3.200
T ambient In Imax.
° C ° F A A
35 95 90.0 180.0
40 104 90.0 180.0
45 113 90.0 180.0
50 122 86.1 172.2
55 131 81.2 162.4
60 140 76.2 152.4
