Fagor DDS AXD/SPD 2.50 User Manual

Drives
3.
Ref.1912
· 103 ·
DDS
HARDWARE

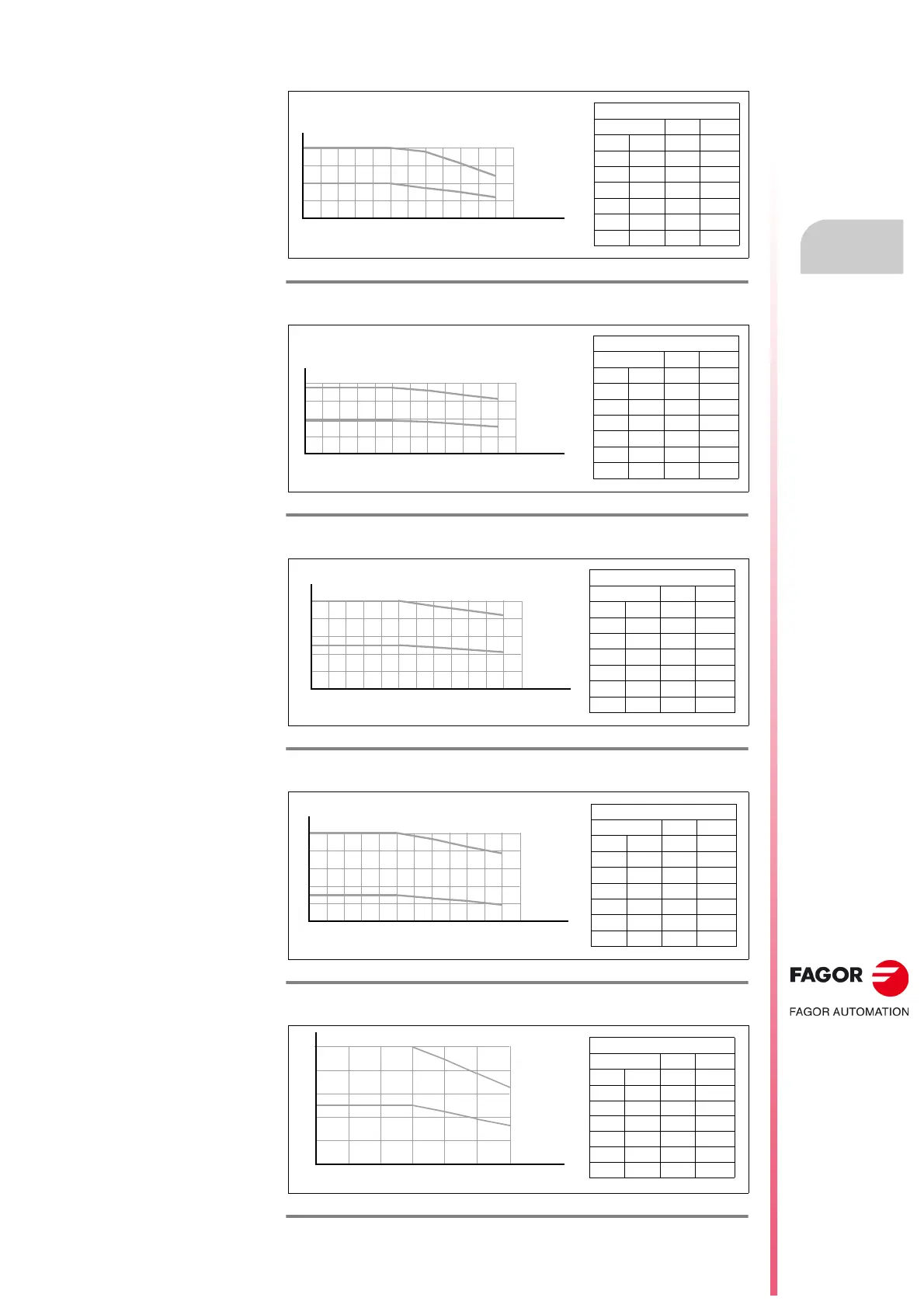

 For a switching frequency fc = 8 kHz
F. H3/16
Current derating on ·AXD|MMC 1.08· drives for fc = 8 kHz.
F. H3/17
Current derating on ·AXD|MMC 1.15· drives for fc = 8 kHz.
F. H3/18
Current derating on ·AXD|MMC 1.25· drives for fc = 8 kHz.
F. H3/19
Current derating on ·AXD|MMC 1.35· drives for fc = 8 kHz.
F. H3/20
Current derating on ·AXD|MMC 2.50· drives for fc = 8 kHz.
35 40 55 60
4
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
2
6
In
0
8
Imax
AXD|MMC 1.08
T ambient In Imax.
° C ° F A A
35 95 4.0 8.0
40 104 4.0 8.0
45 113 4.0 8.0
50 122 3.5 7.0
55 131 3.0 5.9
60 140 2.4 4.8
35 40 55 60
8
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
4
12
In
16
Imax
0
AXD|MMC 1.15
T ambient In Imax.
° C ° F A A
35 95 7.5 15.0
40 104 7.5 15.0
45 113 7.5 15.0
50 122 7.1 14.3
55 131 6.7 13.4
60 140 6.3 12.5
35 40 55 60
10
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
5
15
In
20
Imax
0
25
AXD|MMC 1.25
T ambient In Imax.
° C ° F A A
35 95 12.5 25.0
40 104 12.5 25.0
45 113 12.5 25.0
50 122 11.8 23.7
55 131 11.1 22.2
60 140 10.3 20.7
35 40 55 60
20
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
25
In
30
Imax
35
15
AXD|MMC 1.35
T ambient In Imax.
° C ° F A A
35 95 17.5 35.0
40 104 17.5 35.0
45 113 17.5 35.0
50 122 16.6 33.3
55 131 15.7 31.3
60 140 14.7 29.3
AXD|MMC 2.50
T ambient In Imax.
° C ° F A A
35 95 25.0 50.0
40 104 25.0 50.0
45 113 25.0 50.0
50 122 22.2 44.4
55 131 19.3 38.6
60 140 16.3 32.7
40
I (A rm s)
Tambient
°C (°F)
(104)
In
Im ax
10
0
35
(95)
45
(113)
50
(122)
55
(131)
60
(140)
20
30
40
50
