Cables
7.
Ref.1912
DDS
HARDWARE
· 252 ·

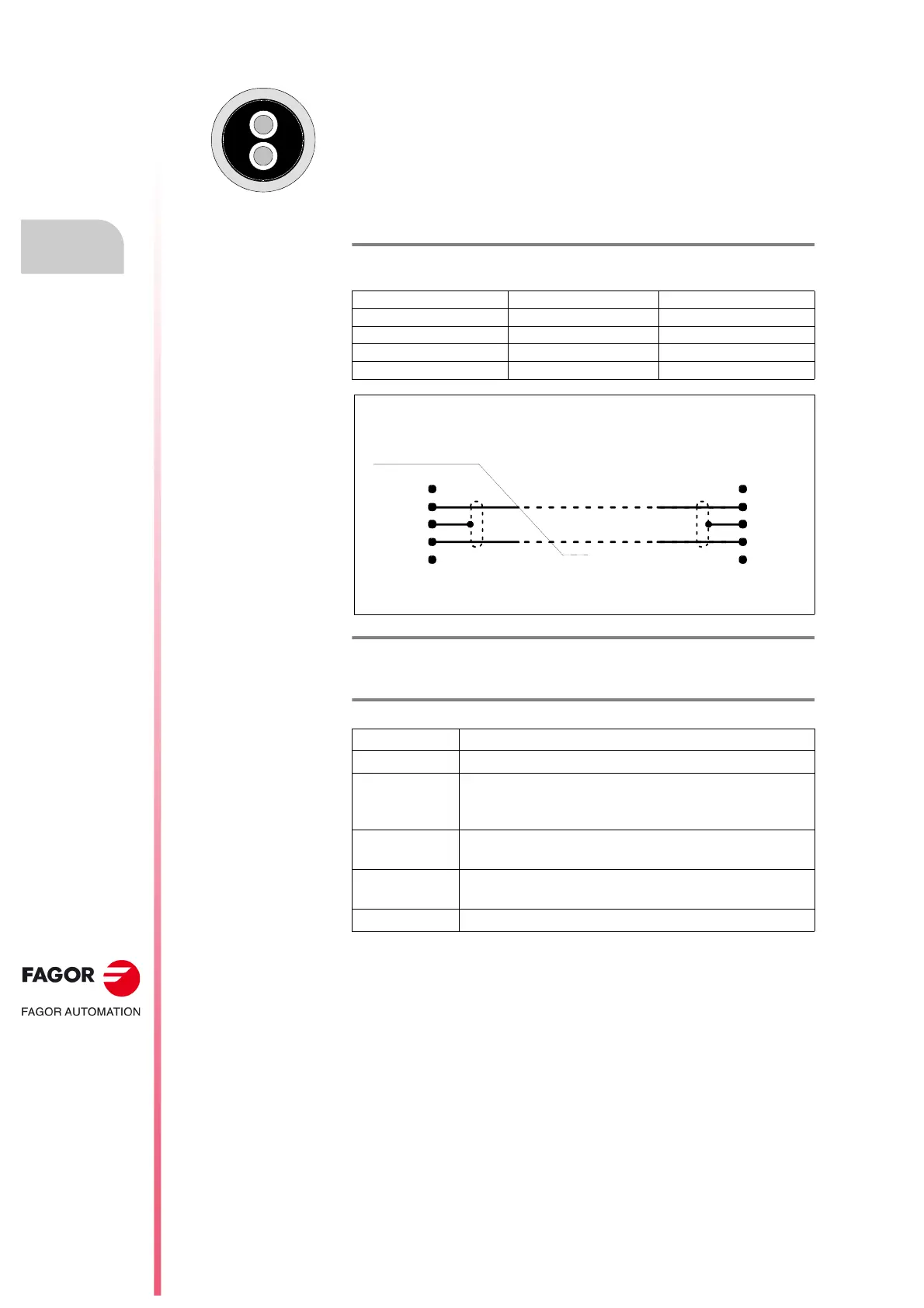

CAN cable
Cable supplied by FAGOR upon request. It is used to establish
communication through a CAN field bus between drives and a master
device (CNC, PC, ESA panel, etc.). It consists of a pair of twisted wires with
a section of 0.25 mm², overall shield and impedance of 120 . It is supplied
without connectors. It comes in lengths from 5 m to 150 m, in multiples of 5.
Its sales models are:
CAN CABLE
M
Its mechanical characteristics are:
T. H7/23 Range of CAN CABLE M cables.
The number indicates length in meters.
CAN CABLE 5M CAN CABLE 30M CAN CABLE 75M
CAN CABLE 10M CAN CABLE 35M CAN CABLE 100M
CAN CABLE 15M CAN CABLE 40M CAN CABLE 150M
CAN CABLE 20M CAN CABLE 45M
CAN CABLE 25M CAN CABLE 50M
F. H7/7
CAN cable.
T. H7/24 CAN CABLE M cable. Mechanical characteristics.
Type Shield. It ensures EMC compatibility
Ext. diameter
Øext. = 6.3 mm
Flexibility
High. Special to be used in cable carrying chains with a
bending radius of 15 times the
Øext under dynamic
conditions and 8 times the
Øext under static conditions.
Covering
PUR. Polyurethane resistant to chemical agents used in
machine-tools.
Temperature
Work: -30°C/70°C (-22°F/158°F)
Storage: -5°C/70°C (23°F/158°F)
Rated voltages Uo / U: 250/1 000 V
CAN L
SHIELD
CAN H
Pin Pin
5
4
3
2
1
5
4
3
2
1
CAN L
SHIELD
CAN H
Brown
White
Fagor Cable
CAN CABLE 5/10/15/20/25
Cable 1x2x0.25
Length in meters
Signal
Note. The ends of the wires and the shield already have their pin. This
cable does not include connectors.
5M/10M/15M/20M/.../150M
