Installation
8.
310
· 304 ·
Ref.1912
DDS
HARDWARE
Values that may be assigned to the transmission speed
The possible values, supported by the hardware, that may be selected to set
the transmission speed are:
See the values that will be assigned to their associated parameter QP11 in
chapter
12. PARAMETERS, VARIABLES AND COMMANDS of the
“man_dds_soft.pdf” manual.
CAN connection with an ESA Video Terminal VT
The CAN connection of the ESA terminal with FAGOR drives is made
through the connector located at the bottom of the VT module. See figure.
T. H8/5 Transmission speed with CAN interface. Display at the drive.
Status display Transmission speed (rate)
1. 1 MBd
8 800 kBd
5 500 kBd

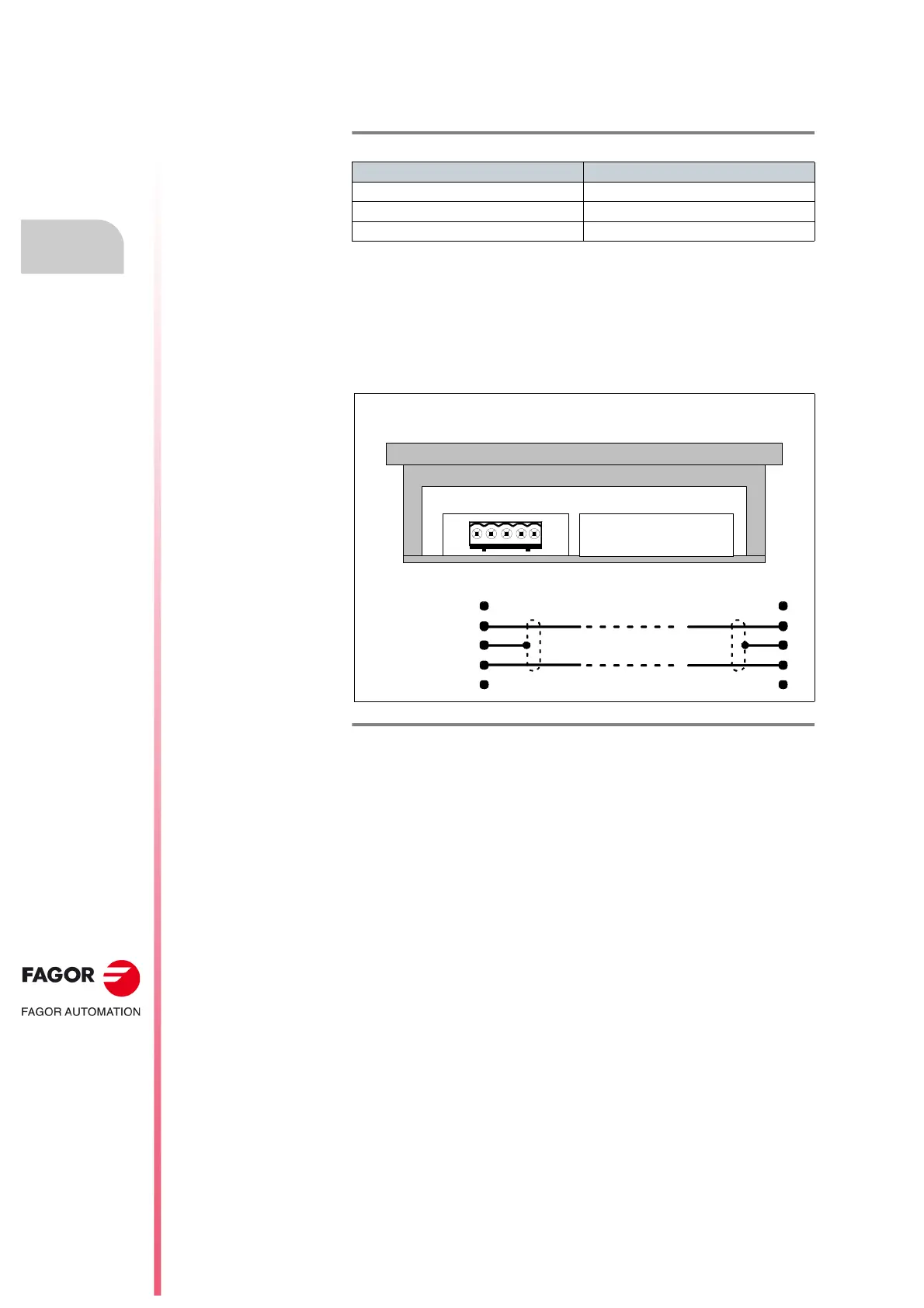

F. H8/43
CAN connector of the ESA Video Terminal.
15 234
CAN L
SHIELD
CAN H
SHIELD
ISO GND
Pin Pin
5
4
3
2
1
5
4
3
2
1
Brown
White
Shield
Bottom view
ESA panel (VT 150W)
