Dimensions
DIMENSIONS
Modular drives
11.
Ref.1912
· 373 ·
DDS
HARDWARE
AXD/SPD/MMC 3.100, AXD/SPD/MMC 3.150
F. H11/14

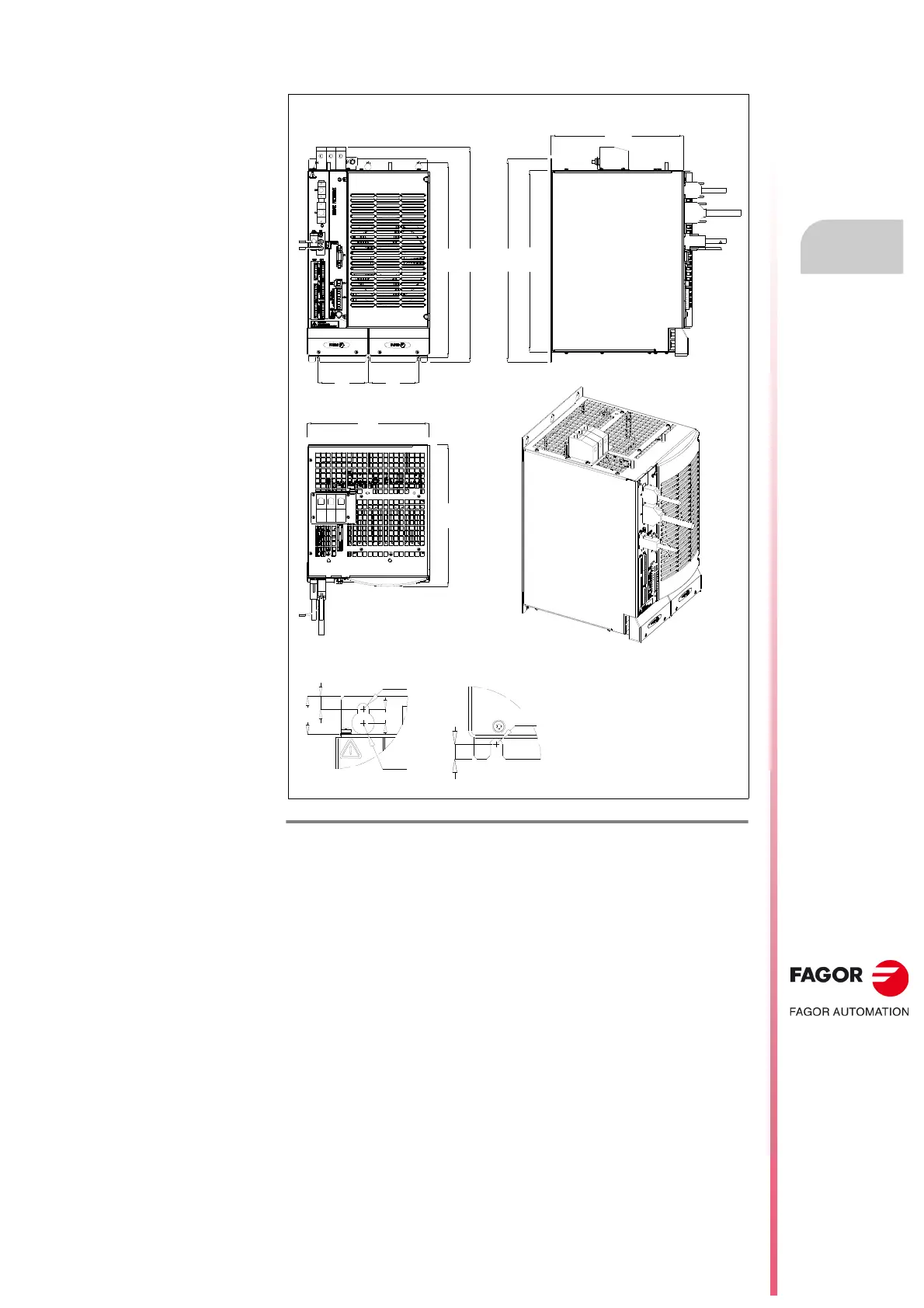

Modular drives, AXD/SPD/MMC 3.100 | 3.150. Dimensions.
Dimensions in mm. 1 in = 25.4 mm
R3.5
8.5
22
R3.5
R6.5
8
7.5
389
347
255
234
272
97 97
373
412
