Fagor FI-200W L - Specifications

2

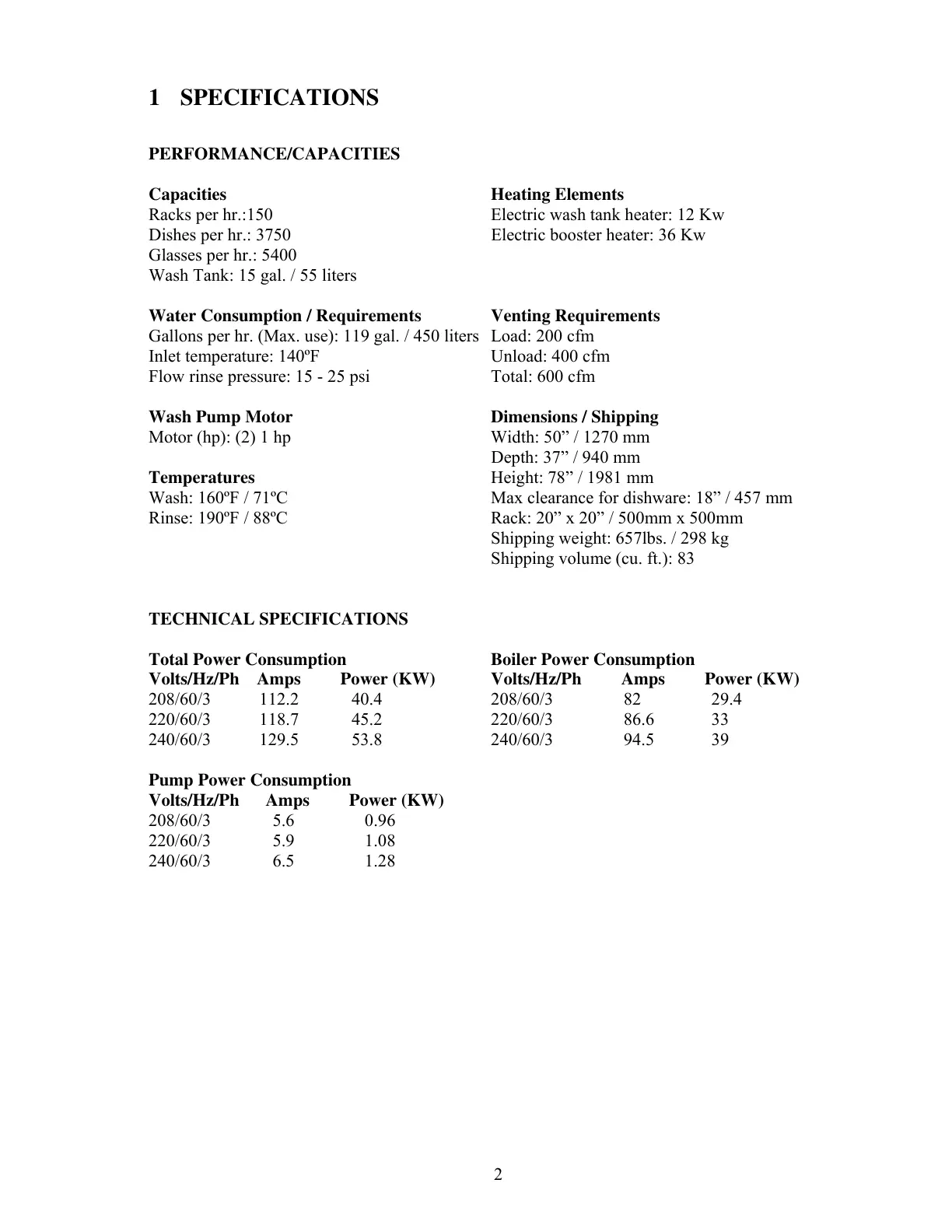

1 SPECIFICATIONS
PERFORMANCE/CAPACITIES
Capacities Heating Elements
Racks per hr.:150 Electric wash tank heater: 12 Kw
Dishes per hr.: 3750 Electric booster heater: 36 Kw
Glasses per hr.: 5400
Wash Tank: 15 gal. / 55 liters
Water Consumption / Requirements Venting Requirements
Gallons per hr. (Max. use): 119 gal. / 450 liters Load: 200 cfm
Inlet temperature: 140ºF Unload: 400 cfm
Flow rinse pressure: 15 - 25 psi Total: 600 cfm
Wash Pump Motor Dimensions / Shipping
Motor (hp): (2) 1 hp Width: 50” / 1270 mm
Depth: 37” / 940 mm
Temperatures Height: 78” / 1981 mm
Wash: 160ºF / 71ºC Max clearance for dishware: 18” / 457 mm
Rinse: 190ºF / 88ºC Rack: 20” x 20” / 500mm x 500mm
Shipping weight: 657lbs. / 298 kg
Shipping volume (cu. ft.): 83
TECHNICAL SPECIFICATIONS
Total Power Consumption Boiler Power Consumption
Volts/Hz/Ph Amps Power (KW) Volts/Hz/Ph Amps Power (KW)
208/60/3 112.2 40.4 208/60/3 82 29.4
220/60/3 118.7 45.2 220/60/3 86.6 33
240/60/3 129.5 53.8 240/60/3 94.5 39
Pump Power Consumption
Volts/Hz/Ph Amps Power (KW)
208/60/3 5.6 0.96
220/60/3 5.9 1.08
240/60/3 6.5 1.28
