2 INSTALLATION
2.1 VISUAL INSPECTION
Before installing the unit, check the package and machine for damage. All machines have been
tested, inspected and packed at the factory and is expected to arrive to you in new, undamaged
condition. Visually inspect the exterior of the package. Any damage should be noted and reported
to the delivering carrier immediately. If damaged, open and inspect the contents with the carrier.
In the event that the exterior is not damaged, yet upon opening, there is concealed damage to the
equipment notify the carrier. Notification should be made verbally as well as in written form.
Request an inspection by the shipping company of the damaged equipment. Also, contact the
dealer through which you purchased the unit.

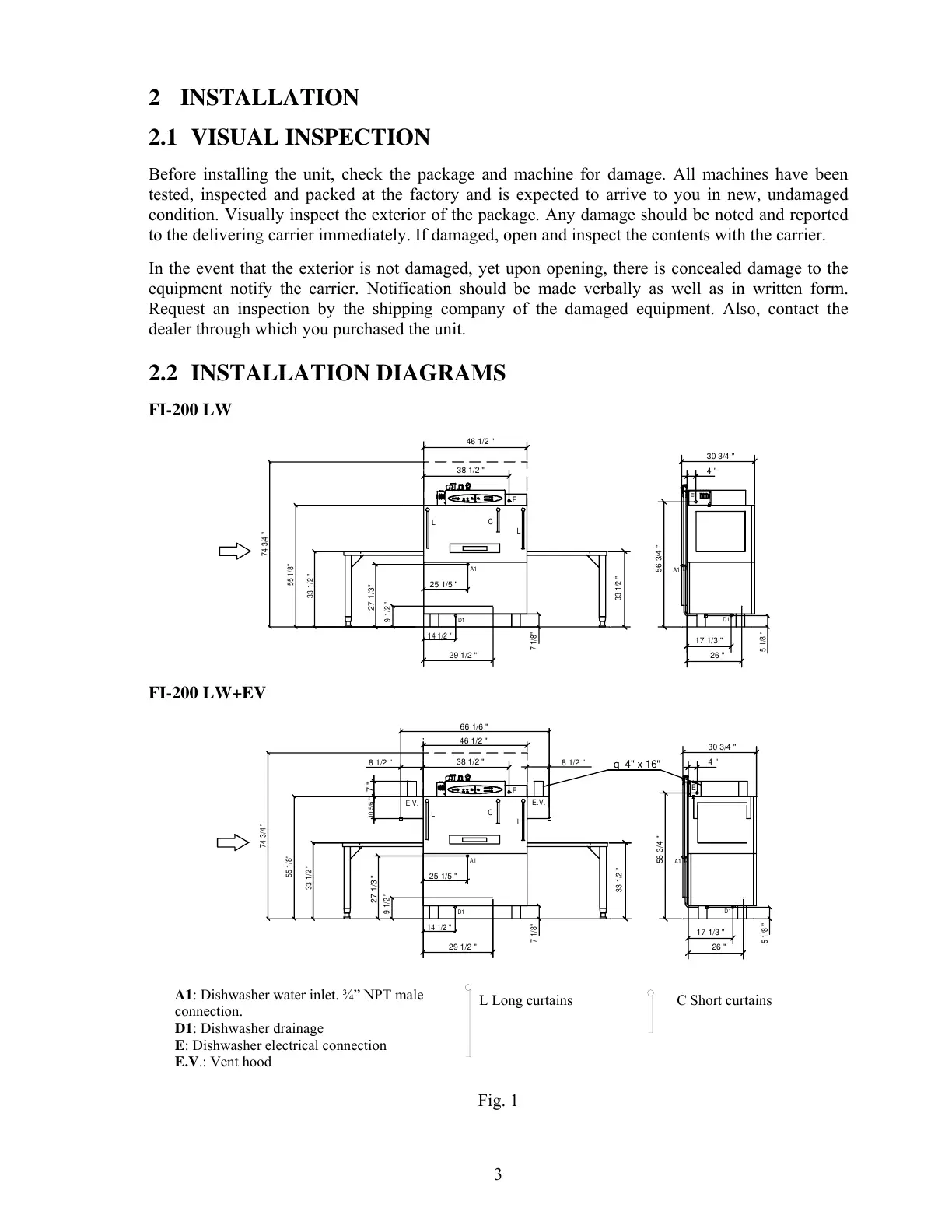

2.2 INSTALLATION DIAGRAMS
FI-200 LW
D1
A1
L
E
C
L
E
A1
D1
38 1/2 "
14 1/2 "
29 1/2 "
74 3/4 "
55 1/8"
33 1/2 "
4 "
56 3/4 "
25 1/5 "
27 1/3"
46 1/2 "
9 1/2 "
7 1/ 8"
33 1/2 "
30 3/4 "
17 1/3 "
26 "
5 1/8 "
FI-200 LW+EV
D1
A1
L
E
C
L
E
A1
D1
25 1/5 "
27 1/3 "
8 1/2 "
8 1/2 "
66 1/6 "
E.V.
E.V.
10 5/6 "
38 1/2 "
14 1/2 "
29 1/2 "
74 3/4 "
55 1/8"
33 1/2 "
4 "
56 3/4 "
9 1/2 "
7 1/8"
33 1/2 "
30 3/4 "
17 1/3 "
26 "
5 1/8 "
46 1/2 "
7 "
q 4" x 16"
A1: Dishwasher water inlet. ¾” NPT male
connection.
D1: Dishwasher drainage
E: Dishwasher electrical connection
E.V.: Vent hood
Fig. 1
C Short curtains L Long curtains
