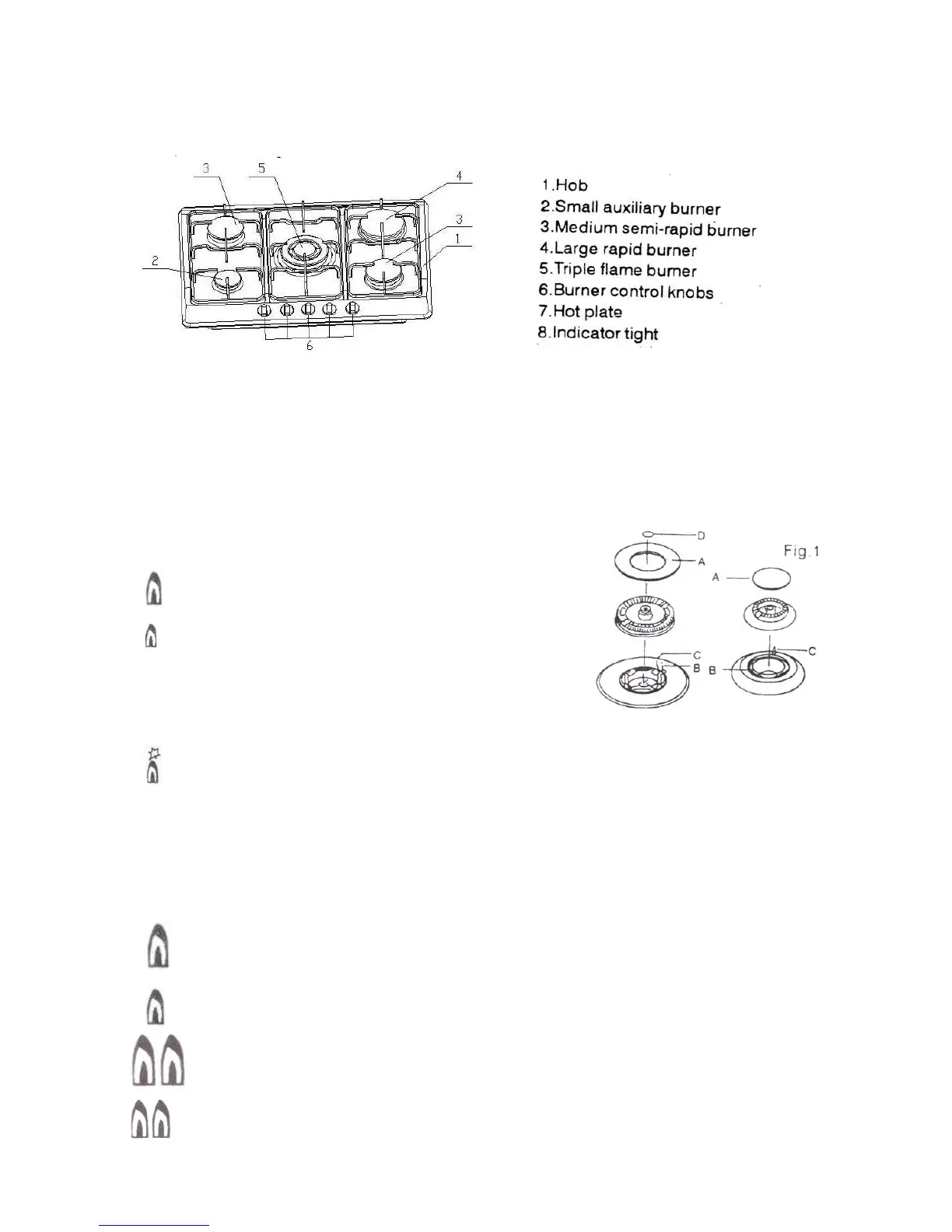

Description of the hob
1
Instructions for use
The hob control knobs
The symbols on the control knobs mean the following:
● no gas flow
maximum gas flow
Minimum gas flow
All operating positions must be set between the
maximum and minimum flow settings, and never
between the maximum setting and the closed
position.
(Symbol present on version with lighting A-Burner cap
integrated in the Control knob) B-Lighting plug
C-Thermocouple
D-Triple flame cap
Dual triple flame version
● no gas flow
maximum gas flow from central burner
minimum gas flow from central burner
maximum gas flow from outer and central burners simultaneously
minimum gas flow from outer and central burners simultaneously 4
