Fagor OVEN - B) LCD Display

13

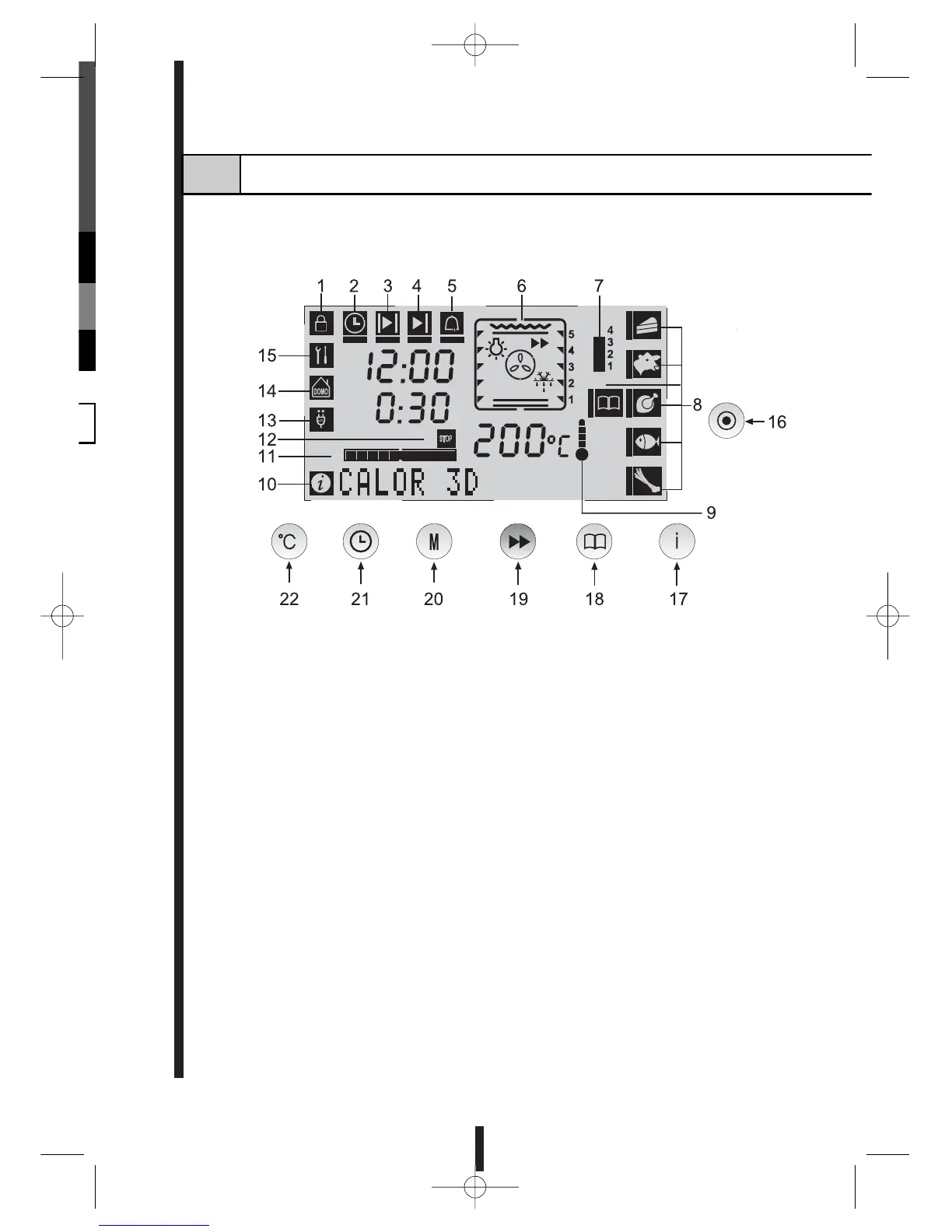

LCD display
b
1. Symbol indicating oven blocked
2. Time adjustment symbol
3. Cooking time symbol
4. End Cooking time symbol
5. Beeper symbol
6. Function representation symbol
7. Memories and cooking phases symbol
8. Recipes menu and food type symbol
9. Temperature scale symbol
10. Set-up symbol
11. Progress bar symbol
12. Oven stopped symbol
13. Automatic disconnection indicator symbol
14. NET Comp@tible oven symbol
15. Technical Service symbol
16. On/Off and stop button
17. Information and set-up menu button
18. Recipe selector button
19. "CELERIS" special function button
20. Memory button
21. Timer function button
22. Temperature button
