2.2.2. Heat pump installation.
① The frame must be fixed by bolts (M10) to concrete foundation or brackets. The
concrete foundation must be solid; the bracket must be strong enough and anti-rust
treated;
② The heat pump needs a water pump (Supplied by the user). The recommended pump
specification-flux: refer to Technical Parameter, Max. lift ≥10m
③ When the heat pump is running, there will be condensation water discharged from the
bottom, please pay attention to it. Please insert the drainage tube(accessory) into the
hole and clip it well, then connect a pipe to drain off the condensation water.
2.2.3. Wiring & protecting devices and cable specification
① Connect to appropriate power supply, the voltage should comply with the rated
voltage of the products.
② Well earth the heat pump.
③ Wiring must be connected by a professional technician according to the circuit
diagram.
④ Set breaker or fuse according to the local code (leakage operating current ≤ 30mA).
⑤ The layout of power cable and signal cable should be orderly and not affecting each
other.

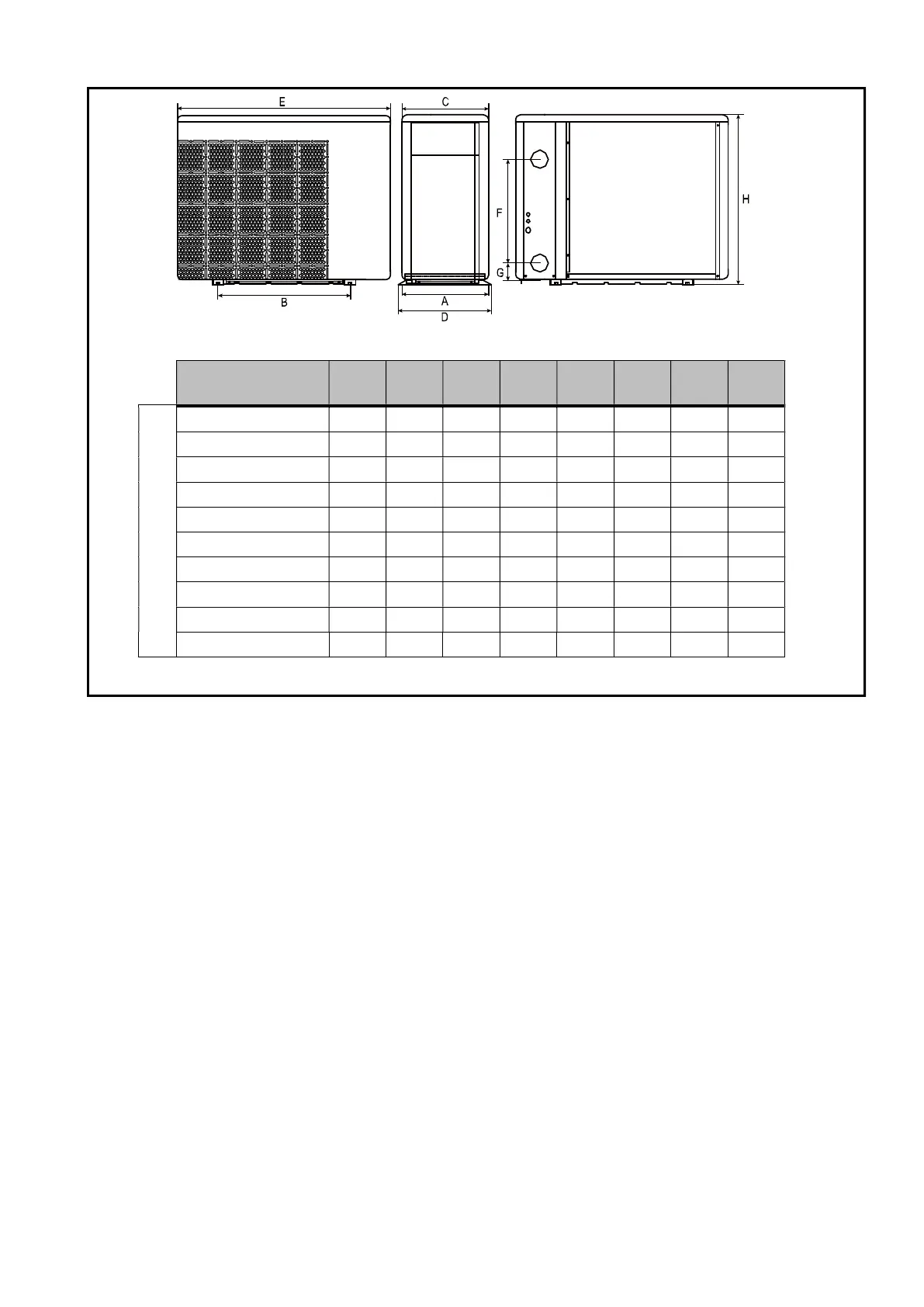

UNIT=MM A B C D E F G H
MODEL
IPHCR15 334 590 318 359 894 250 74 648
IPHCR20 334 590 318 359 894 250 74 648
IPHCR26 334 590 318 359 894 290 74 648
IPHCR33 334 590 318 359 954 280 74 648
IPHCR40 334 590 318 359 954 340 74 648
IPHCR45 404 590 388 429 954 390 74 648
IPHCR55 404 590 388 429 954 460 74 755
IPHCR70 404 720 388 429 1084 620 74 948
IPHCR70T 404 720 388 429 1084 620 74 948
IPHCR100T 514 790 498 539 1154 650 74 948
To Next Page
