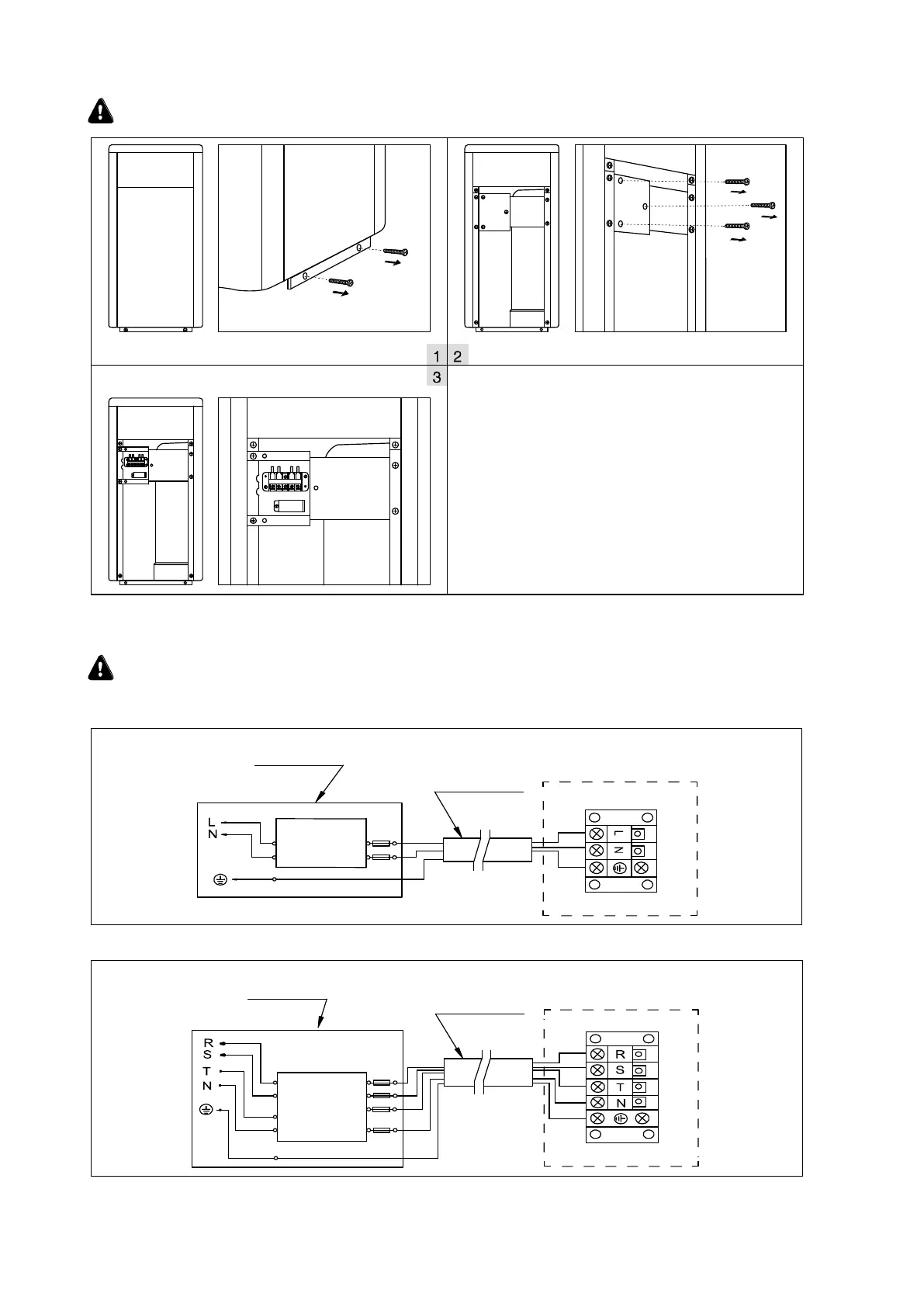

1. Connecting your power wire
Note: For IPHCR15-33 model, please open the back panel for power connection. The operation is the
same as above.
2. Wiring diagram
NOTE:
Please use cross screwdriver to take off
the 2 screws at the bottom of the right side
panel. Take off the lower half of the panel.
② Unscrew the 3 screws on the cover of
the electrical box.
③ Connect the terminals according to the
electrical diagram.
A. For power supply: 230V 50Hz
Distribution Box(Customer prepare)
Power Cord
Swimming Pool Heat Pump Wiring Board
Power Supply
400V 50Hz
Breaker
Distribution Box(Customer prepare)
Power Cord
Swimming Pool Heat Pump Wiring Board
Power Supply
230V 50Hz
Breaker
B. For power supply: 400V 50Hz
Earthing
Earthing
Fuse
Fuse
To Next Page
