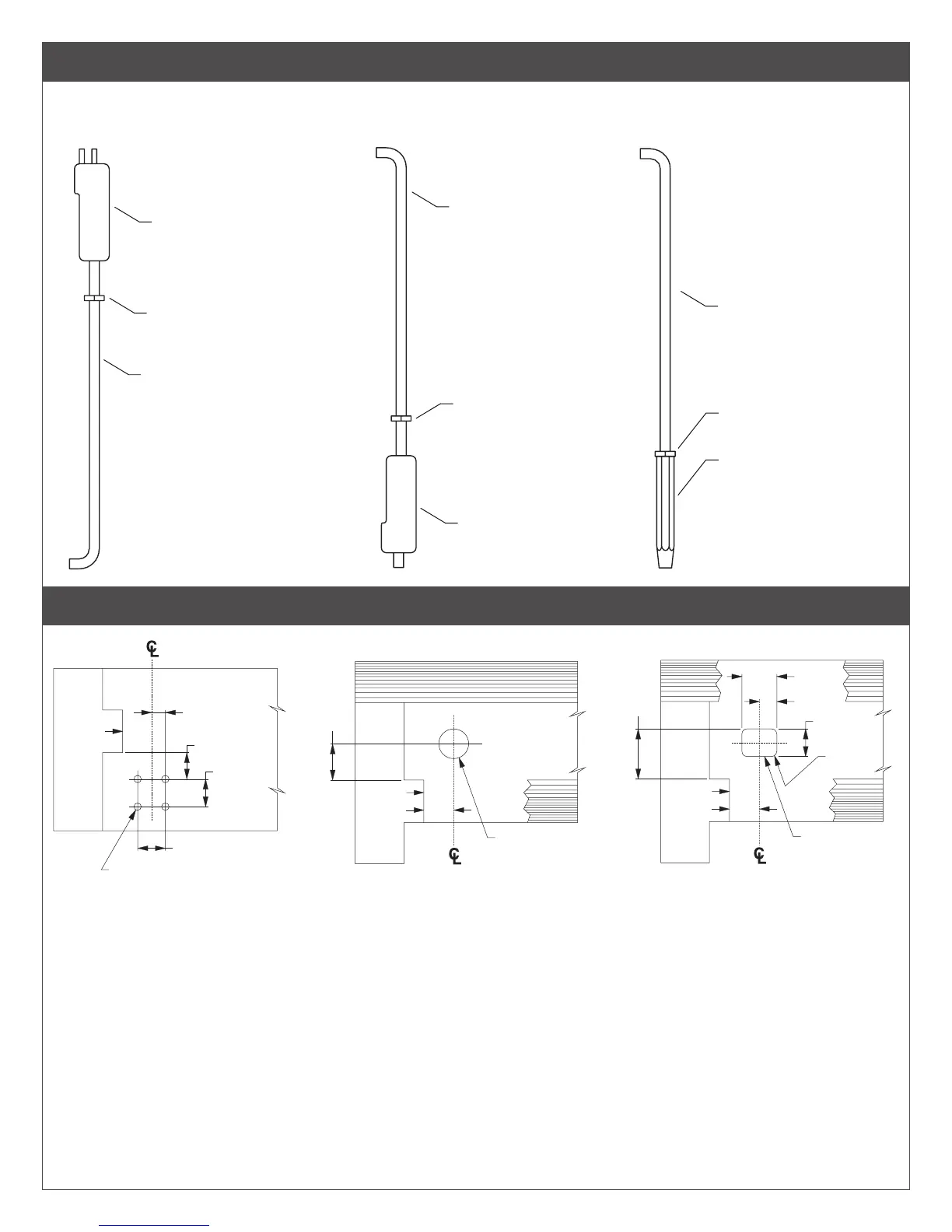

PARTS LIST (CONTINUED)
TOP ROD
ASSEMBLY
SU latch
4270101806
Jam nut 3/8"-24
NUT.101 (Pkg of 10)
Top rod:
• Bent rod 35.125" long (7' door)
4270100017
(can be shortened by 5")
• Bent rod 47.125" long (8' door)
4270100018
(can be shortened by 13")
Optional ES (electric strike)
top latch (not shown)
4270100346
ROD LATCH (RL) BOTTOM
ROD ASSEMBLY
Bottom rod:
Bent rod 35.125" long
4270100017
(can be shortened by 5")
RL bottom latch
4270100521
Jam nut 3/8"-24
NUT.101 (Pkg of 10)
HEX BOTTOM
ROD ASSEMBLY
Hex bolt
4270101830
Optional PL (pullman)
bottom latch (not shown)
4270101482
Bottom rod:
Bent rod 37.812" long
4270101825
(can be shortened by 6")
Jam nut 3/8"-24
NUT.101 (Pkg of 10)
HEAD JAMB AND THRESHOLD PREPARATION
11/32"
21/32"
11/16"
11/16"
#29 (0.136") dia. drill
#8-32 tap, 4 places
top latch
Bottom plan view of head jamb
(looking up)
Stop
Upper Strike
Head Jamb Preparation
Top plan view of threshold
1-1/4"
Stop
"E"
11/16"
1/8" R
7/16"
7/8"
Cut strike
opening for
bottom latch
thru threshold
Pullman Latch
Threshold Preparation
Rod Latch (RL) or Hex Bolt
Threshold Preparation
Top plan view of threshold
bottom
latch
Stop
"E"
29/32"
3/4" dia.; cut
strike opening
for bottom latch
thru threshold
bottom
latch
