5

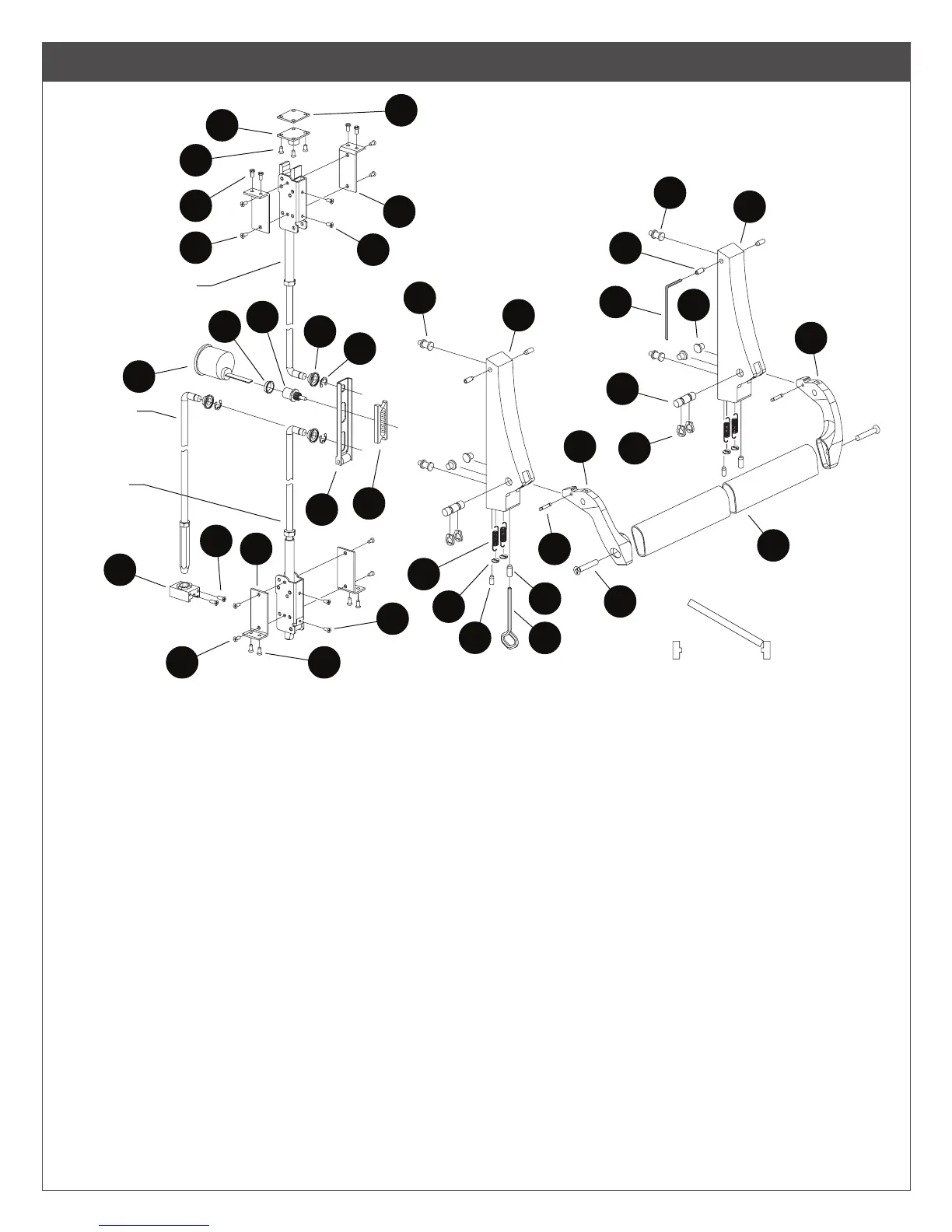

SERIES 1990 PARTS LIST
Item Qty. Description
1 2 Housing
2 1 Lever arm, LH
3 1 Lever arm, RH
4 1 Crossbar
5 4 Housing mounting stud
6 6 1/4-20 x 3/8" hex socket head set screw
7 1 1/8" Allen wrench
8 2 Axle pin
9 4 Retaining ring
10 4 Axle bushing
11 4 Tension spring
12 4 Spring retainer
13 2 7/16-14 x 3/4" hex socket head dogging screw
14 1 Dogging key
15 2 Spring pin
16 2 1/4-20 x 1" Taptite
23
26
27
24
29
28
32
Hex
Bottom
Rod
Assembly
Top Rod
Assembly
LHR shown
22
31
22
17
18
10
6
5
5
12
15
16
13
11
9
8
1
1
2
3
4
30
25
20
21
7
RL
Bottom
Rod
Assembly
17
19
1918
Item Qty. Description
17 4 Latch bracket (hollow metal doors only)
18 8 #10-32 x 1/4" UFPHMS
19 8 #10-32 x 3/8" FPHMS
20 1 PB48 strike
21 3 PB48 strike shim
22 4 #8-32 x 1/2" UFPHTC
23 4 #10-32 x 1/4" UFPHMS
24 1 Hex rod guide
25 2 #10-24 x 3/8" UFPHTC
26 2 Rod bearing bushing
27 4 Retaining ring
28 1 Pinion cam
29 1 Cylinder bushing
30 1 Rim cylinder (optional; sold separately)
31 1 Traveler
32 1 Retractor
6
14
