Falcon 90 Induction - Fan Oven Circuit Diagram

35

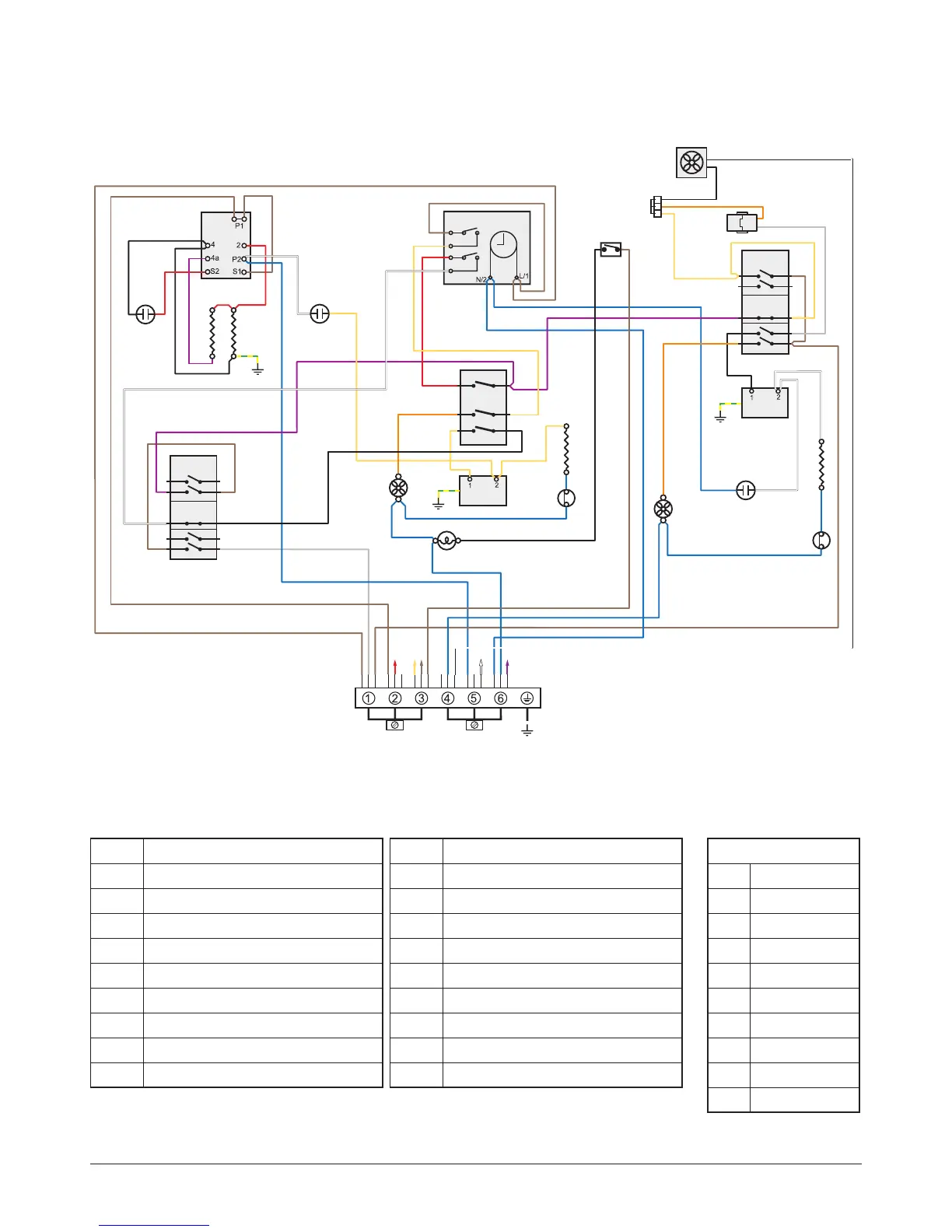

Circuit Diagram: Fan Oven
Key
The connections shown in the circuit diagram are for single-phase. The ratings are for 240V 50Hz.
ArtNo.080-0064 90 induction (oven) circuit diagram
P1
P3
1
P2 2
P1 1
3
P4
4
P095199
1
2
1
P1
P1
P2
P1
P3
1
P2 2
P1 1
3
P4
4
P033458
P033458
b
b
br
w
b
b
v
br
br
br
br
bk
r
v
bk
r r
v
bk
r
w
b
br br
br
w
y
br
y
r
w
b
br
b
br
r
o
y
y
y
y
bk
y
v
v
y
o
g/y
b
b
b
br
y
br
r
br
br
gr
br
b
b
bk
br
gr
bk
w
bk
y
y
br
y
br
br
gr
o
v
bk
bk
g/y
w
w
w
b
w
b
b
b b
o
br
w
g/y
o
bk
o
y
br
w
v
r
gr
bk
w
L N
A1
A2
A3
J
J
B4
B1
B2
D
H
B3
G1
G2
C4
J
H
C3
C1
C2
F
K
Multi-pin
plug
Code Description
A1 Grill energy regulator
A2 Grill front switch
A3 Grill elements
B1 Left-hand zoned oven thermostat
B2 Left-hand oven thermostat front switch
B3 Left-hand oven element
B4 Left-hand oven fan
C1 Right-hand oven thermostat
C2 Right-hand oven thermostat front switch
Code Description
C3 Right-hand oven element
C4 Right-hand oven fan
D Clock
F Cooling fan
G1 Oven light switch
G2 Oven light
H Thermal cut-out
J Neon
K Connection block
Colour Code
b Blue
br Brown
bk Black
or Orange
r Red
v Violet
w White
y Yellow
g/y Green/yellow
gr Grey
