Falcon Dominator G2101 User Manual

Off position
Maximum flame
setting (High)
Low flame
setting (Simmer)
Rear Indicator Front Indicator
Off position
Pilot ignition
Maximum
flame setting
Low flame
setting (Simmer)

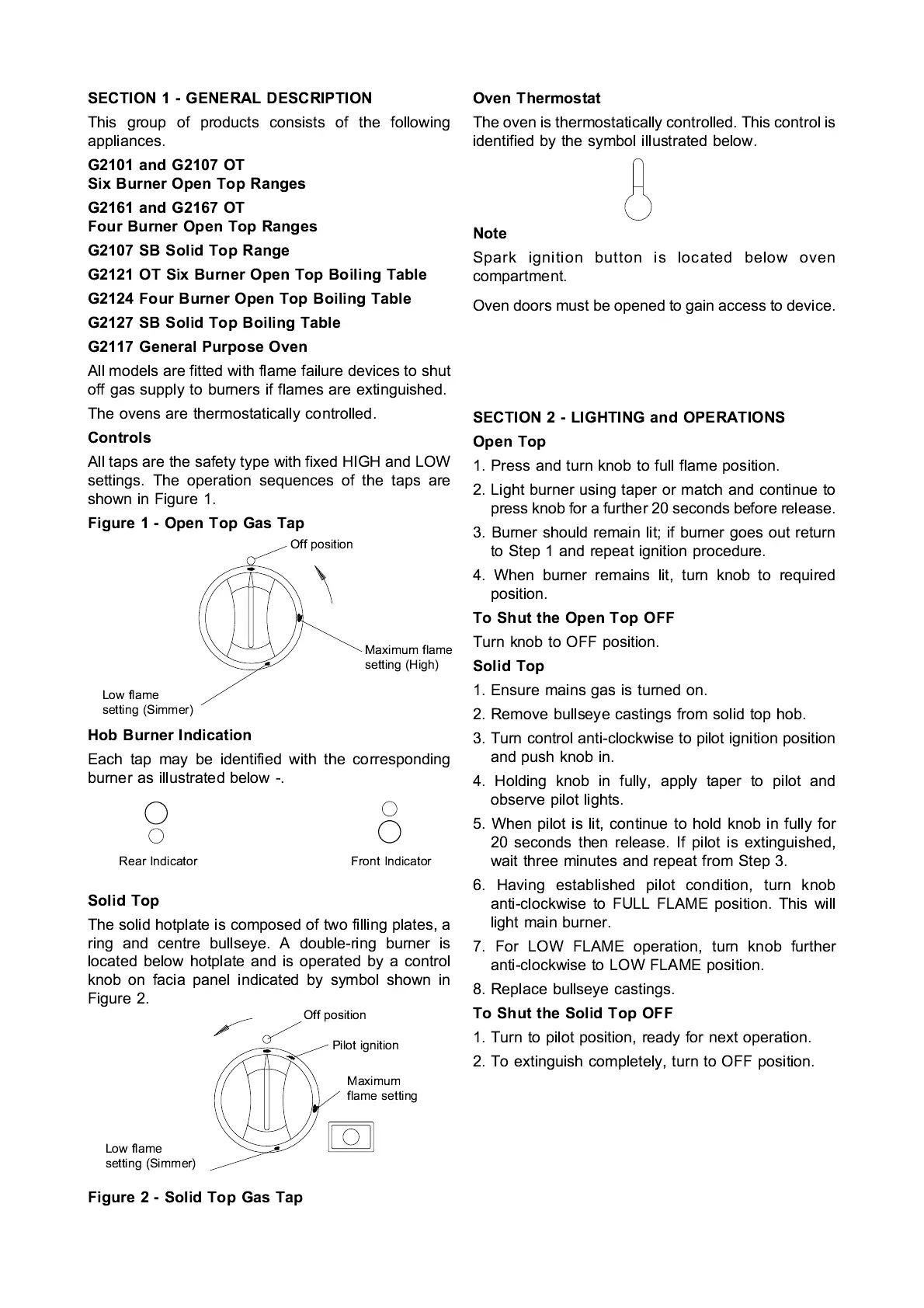

SECTION 1 - GENERAL DESCRIPTION
This group of products consists of the following
appliances.
G2101 and G2107 OT
Six Burner Open Top Ranges
G2161 and G2167 OT
Four Burner Open Top Ranges
G2107 SB Solid Top Range
G2121 OT Six Burner Open Top Boiling Table
G2124 Four Burner Open Top Boiling Table
G2127 SB Solid Top Boiling Table
G2117 General Purpose Oven
All models are fitted with flame failure devices to shut
off gas supply to burners if flames are extinguished.
The ovens are thermostatically controlled.
Controls
All taps are the safety type with fixed HIGH and LOW
settings. The operation sequences of the taps are
shown in Figure 1.
Figure 1 - Open Top Gas Tap
Hob Burner Indication
Each tap may be identified with the corresponding
burner as illustrated below -.
Solid Top
The solid hotplate is composed of two filling plates, a
ring and centre bullseye. A double-ring burner is
located below hotplate and is operated by a control
knob on facia panel indicated by symbol shown in
Figure 2.
Figure 2 - Solid Top Gas Tap
Oven Thermostat
The oven is thermostatically controlled. This control is
identified by the symbol illustrated below.
Note
Spark ignition button is located below oven
compartment.
Oven doors must be opened to gain access to device.
SECTION 2 - LIGHTING and OPERATIONS
Open Top
1. Press and turn knob to full flame position.
2. Light burner using taper or match and continue to
press knob for a further 20 seconds before release.
3. Burner should remain lit; if burner goes out return
to Step 1 and repeat ignition procedure.
4. When burner remains lit, turn knob to required
position.
To Shut the Open Top OFF
Turn knob to OFF position.
Solid Top
1. Ensure mains gas is turned on.
2. Remove bullseye castings from solid top hob.
3. Turn control anti-clockwise to pilot ignition position
and push knob in.
4. Holding knob in fully, apply taper to pilot and
observe pilot lights.
5. When pilot is lit, continue to hold knob in fully for
20 seconds then release. If pilot is extinguished,
wait three minutes and repeat from Step 3.
6. Having established pilot condition, turn knob
anti-clockwise to FULL FLAME position. This will
light main burner.
7. For LOW FLAME operation, turn knob further
anti-clockwise to LOW FLAME position.
8. Replace bullseye castings.
To Shut the Solid Top OFF
1. Turn to pilot position, ready for next operation.
2. To extinguish completely, turn to OFF position.
